Description

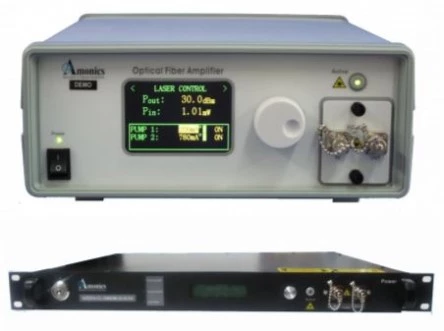

The C+L Band EDFA by Amonics is a cutting-edge optical amplifier designed for a variety of demanding applications in the field of optical communication. This high-performance device is engineered to meet the rigorous standards required for free space communications, coherent beam combining, and detection systems. Its compact design is available in both a benchtop and a 19” rackmount configuration, ensuring versatility and ease of integration into existing systems.
One of the standout features of the C+L Band EDFA is its user-friendly interface, which includes a front panel with an LCD monitor display, key switch, and power adjust control knob. This intuitive design simplifies operation and enhances user experience. The device also offers seamless computer interfacing through RS232 or Ethernet connections, providing flexibility for remote control and monitoring.
Manufactured under an ISO 9001:2008 certified quality management system, the C+L Band EDFA promises reliability and durability. Although the certification applies specifically to the Hong Kong production site, it underscores Amonics' commitment to quality across all its manufacturing processes. This commitment is further evidenced by Amonics' dedication to continuous product development, ensuring that their devices remain at the forefront of technological advancement.
Bench-top C and L Band EDFA - AEDFA-CL-23
Specifications |
|
|---|---|
| Amplifier Type: | EDFA - Erbium-Doped Fiber Amplifier |
| Wavelength Range: | 1528 – 1603 nm |
| Max Output Power: | 23 dBm |
| Nominal Gain: | 32 dB |
| Output Fiber Type: | SMF-28 |
Features
- Turnkey Device: The C+L Band EDFA is designed as a compact, user-friendly benchtop or 19” rackmount unit, making it easy to integrate into various systems.
- RS232/Ethernet Interface: Offers flexible connectivity options through RS232 or Ethernet, allowing for seamless integration and remote control.
- High Output Power: Provides robust performance with saturation output power options exceeding +17dBm, +20dBm, and +23dBm.
- High Gain: Delivers superior signal amplification with small signal gain levels of >19dB, >24dB, and >29dB at -6dBm input signal.
- Low Noise Figure: Maintains a low noise figure of less than 6dB, ensuring clear and high-quality signal transmission.
- Highly Reliable and Durable: Built under an ISO 9001:2008 certified quality management system, ensuring long-lasting performance and reliability.
- Wide Application Range: Ideal for use in SONET/SDH systems, optical communication, fiber optic sensing, CATV, and laboratory environments.
- Operation Wavelength: Supports a broad wavelength range from 1528nm to 1562nm and 1570nm to 1603nm, accommodating various optical applications.
- Mechanical Safety Control: Equipped with a key-lock switch and BNC interlock key for enhanced safety.
- Optical Power Monitoring: Features output power monitoring and optional input power monitoring for precise control.
- Remote Control Port: Includes a DB-9 female port for RS232 connectivity and optional RJ-45 for TCP/IP Ethernet, with LabView control software included.
- Protection Features: Incorporates pump laser (TEC) overheat protection to ensure device longevity.
Applications
- SONET/SDH Systems: Enhances optical signal strength in telecom networks.
- Optical Communication Networks: Amplifies signals for long-haul and metro networks.
- CATV Systems: Provides reliable amplification for cable TV transmission.
- Fiber Optic Sensing: Supports distributed sensing systems with stable amplification.
- Laboratory Research: Ideal for advanced optical experiments requiring high power and gain.
Frequently Asked Questions
The Amonics C+L Band EDFA is commonly used in free space communications, coherent beam combining, and detection systems. It is also suitable for SONET/SDH systems, optical communications, fiber optic sensing, and CATV.
The Amonics C+L Band EDFA is a turnkey device with a RS232/Ethernet interface. It has high output power, high gain, low noise figure, and is highly reliable and durable.
The saturation output power of the Amonics C+L Band EDFA is available in three models: AEDFA-CL-17 (+17dBm), AEDFA-CL-20 (+20dBm), and AEDFA-CL-23 (+23dBm).
The input signal level of the Amonics C+L Band EDFA ranges from -6dBm to +3dBm.
The noise figure of the Amonics C+L Band EDFA is less than 6.5dB at 0dBm input signal.
