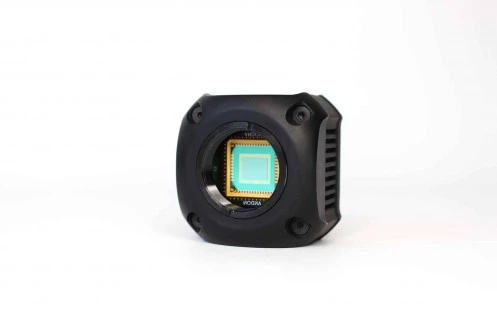

WiDy SWIR 320 Camera
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
France
-
Sold by:
-
On FindLight:
since 2020
Description
The WiDy SWIR 320M-S by New Imaging Technologies is a state-of-the-art camera designed to deliver exceptional imaging performance in a compact and efficient package. This plug-and-play, TECless SWIR camera is expertly calibrated and comes with proprietary software, ensuring that users have everything they need for seamless integration and operation. Delivered in a robust, shockproof case, the WiDy SWIR 320M-S is engineered to withstand demanding environments while maintaining optimal functionality.
Featuring a QVGA resolution of 320x256 with a pixel pitch of 25µm, the camera leverages InGaAs logarithmic response technology to capture high-quality images. Its snapshot mode allows for precise imaging, while the dynamic range of 120dB provides the ability to handle varying light conditions with ease. The camera's compact design does not compromise on performance, as it supports frame rates of up to 200 Hz, making it suitable for a wide range of applications where speed and accuracy are crucial.
The WiDy SWIR 320M-S is equipped with a CameraLink interface, ensuring reliable and fast data transfer. Its low power consumption, less than 1.1W, and a power range of 5 to 12V make it an energy-efficient choice for prolonged use. With dimensions of 48.6×48.6×43.4mm and a weight of under 125g, this camera is both lightweight and portable, offering flexibility in installation and use. Additionally, it is rigorously tested for vibration and shock, ensuring durability and reliability across a wide operating temperature range of -40 to 70°C.
WiDy SWIR 320 Camera
Specifications |
|
|---|---|
| Camera Type: | Scientific, Industrial |
| Array Type: | InGaAs |
| Spectral Band: | 0.9 – 1.7 um |
| # Pixels (Height): | 320 |
| # Pixels (Width): | 256 |
| Pixel Pitch: | 25 um |
| Array Cooling: | Uncooled |
| Resolution: | 320(H)x256(V) |
| Pixel Pitch: | 25µm |
| Exposure Time: | 100us to 200ms |
| Spectral Response: | 0.9 to 1.7um |
| Dynamic Range: | 120dB |
| ADC: | 14 bits |
| Frame Rate: | Up to 200Hz |
| Trigger: | IN/OUT (LVTTL) |
| Power Consumption: | < 1.1W |
| Power Range: | 5 to 12V |
| Dimension: | 48.6×48.6×43.4mm |
| Mount: | CS/C |
| Weight: | <125g |
| Temperature Range: | 40 to 70°C |
Features
- QVGA 320×256, Pitch : 25µm
- InGaAs Logarithmic response, Snapshot mode
- Compact and low power consumption camera
- Dynamic range 120dB typical
- Up to 200 Hz
- CameraLink & USB 3.0
Applications
- Welding & additive manufacturing
- Surveillance & Defense
- Machine vision
Frequently Asked Questions
The WiDy SWIR 320 Camera can be used for welding and additive manufacturing, surveillance and defense, and machine vision.
The WiDy SWIR 320 Camera features QVGA 320×256, Pitch : 25µm InGaAs Logarithmic response, Snapshot mode, and a dynamic range of 120dB typical. It can also operate at up to 200 Hz.
The WiDy SWIR 320 Camera is delivered calibrated with proprietary software and cable in a shockproof case.
The WiDy SWIR 320 Camera has a temperature range of -40 to 70°C and has been vibration and shock tested.
The WiDy SWIR 320 Camera is a compact and low power consumption camera that is available in CameraLink and USB 3.0.
