Description
Pulse technology refers to the processing and application technology of extremely short and high-energy signals. It has important applications in the fields of communications, radar, medicine, energy research, etc. In these applications, power amplifiers are very important key equipment because they can provide high-power pulse signals, enabling the smooth development of applications in these fields.

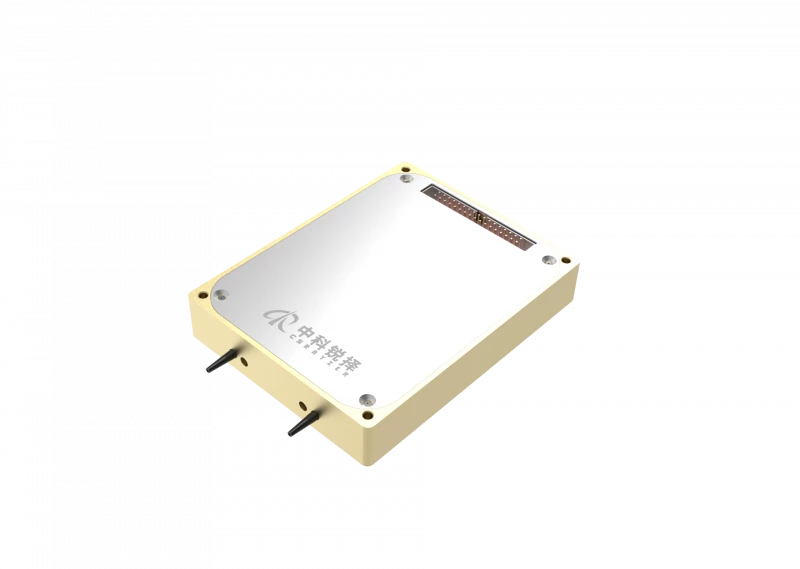

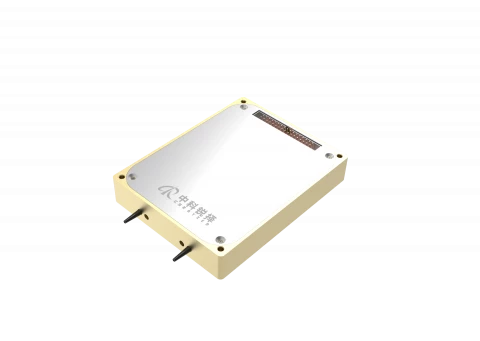

Pulsed Erbium Doped Fiber Amplifier Module RZ-M-Pulse-Dual-EDFA- 1550nm-SMF28e-FA-1
Specifications
| Wavelength: | 1550.12 nm |
|---|---|
| Channels: | 1 |
| Average Optical Power Output: | -2.5 dBm |
| Pulse Width: | 100~300 ns |
| Return Loss: | 45 dB |
| Typical Voltage: | 5 V |
Download Data Sheet
Features
- High gain
- Fast response time
- High stability
Applications
- LIDAR
- Fiber Optical Communication
- Energy and Science
Frequently Asked Questions
What is the operating temperature range for the pulsed fiber amplifier module?
The operating temperature range is from -5°C to 55°C.
What is the typical wavelength for the dual amplifier?
The typical wavelength for the dual amplifier is 1550.12 nm.
What is the input average optical power range?
The input average optical power range is from -24 dBm to -14 dBm.
What type of connectors are used in the module?
The module uses FC/APC connectors.
What is the polarization dependent gain of the module?
The polarization dependent gain is a maximum of 0.3 dB.
What is the output power stability of the module?
The output power stability is ±0.1 dB.
What is the purpose of the alarms in the module?
The alarms are used to shut down the pump in case of low or high temperature conditions, or when input or output optical power is outside specified ranges.
