32-Port 100G QSFP28 L3 MLAG Stacking Data Center Switch

To: Zhengzhou Saga Telecom Co., Ltd.
Re: 32-Port 100G QSFP28 L3 MLAG Stacking Data Center Switch

Name: 32-Port 100G QSFP28 L3 MLAG Stacking Data Center Switch
Brand: Zhengzhou Saga Telecom Co., Ltd.
Availability: InStock

Description

The STH100G Series switches are designed on a domestic new generation switch Chip, which is called PeakNetX Series Chip platform.

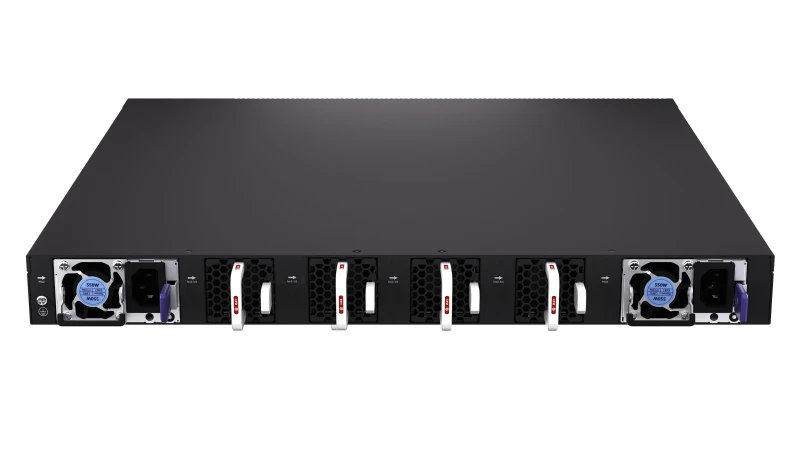

This series provides redundant hot-swappable power supplies (AC and DC are both available) and two bays with Field replaceable fan modules.

Generally, airflow of STH100G Series is front to rear (AFO), and some of models can do a customization of rear to front (AFI) airflow.

Model Name:	STH-32C-HSI
Port:	32*100G QSFP28
Power:	Optional AC/DC Input, Plug and Play
Airflow:	Front to Rear
Fan:	4*hot-swappable fan modulars
Features:	IPv6, OSPF, BGP, PIM, MPLS, Stacking etc.
Chip:	CENTEC CTC8180
Customization:	Support
Dimension:	44244244mm
Weight:	9.2Kg/N.W, 11Kg/G.W
Warranty:	1 Year

MPLS (label-switching-based) integrates IP flexibility and connection-oriented reliability, enabling isolated multi-service bearing, precise traffic scheduling to meet multi-scenario efficient needs.
MLAG which can build an Active-Active system to improve the reliability of the network links from single board grade to device grade.
Implementing Vxlan and BGP protocols to build EVPN applications for data centers scenario.
Switch-to-switch encryption using MACsec (Media Access Control Security) AES-CMAC.
Precision Timing Protocol.
Rich L2/L3 features like IPv6, OSPF, BGP, PIM, etc.
