Description
The XLite Series switches are designed on a domestic popular switch chip, which is called VastLakes and BigFlow Chip platform.

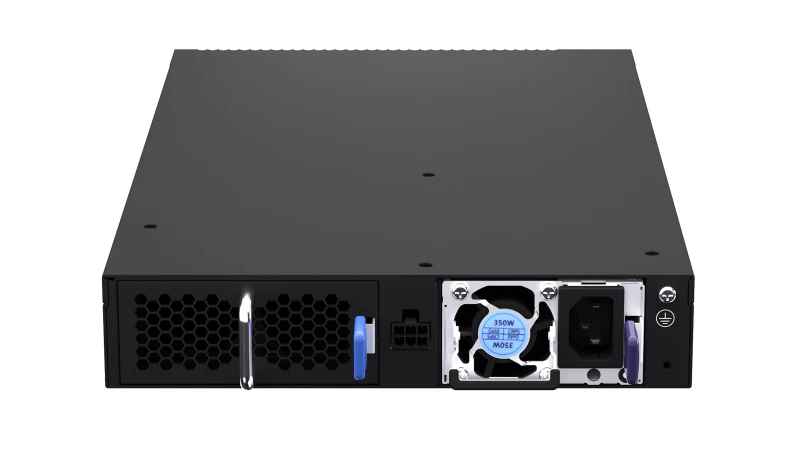

This series provide various power supply solutions for customers choosing, fixed single power supply, and redundant hot-swappable power supplies (AC and DC are both available).
The fan solutions also have 1 bay with field replaceable fan modules and build in fans. Generally, air flow of XLite Series is front to back (AFO), and some of models can do customization of back to front (AFI) airflow.

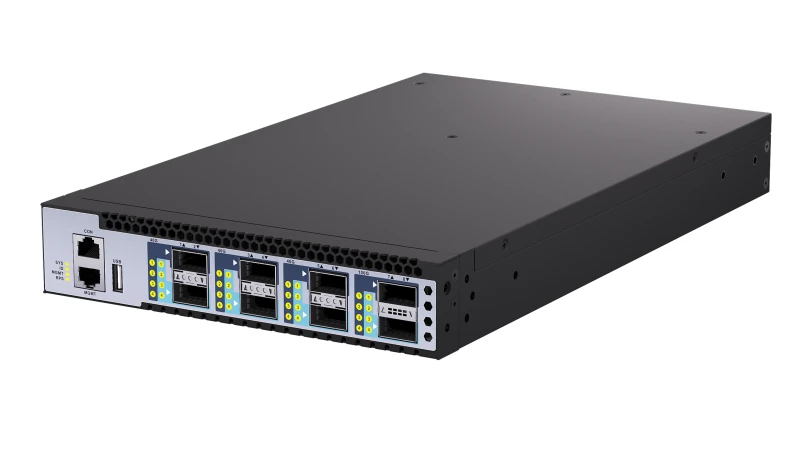

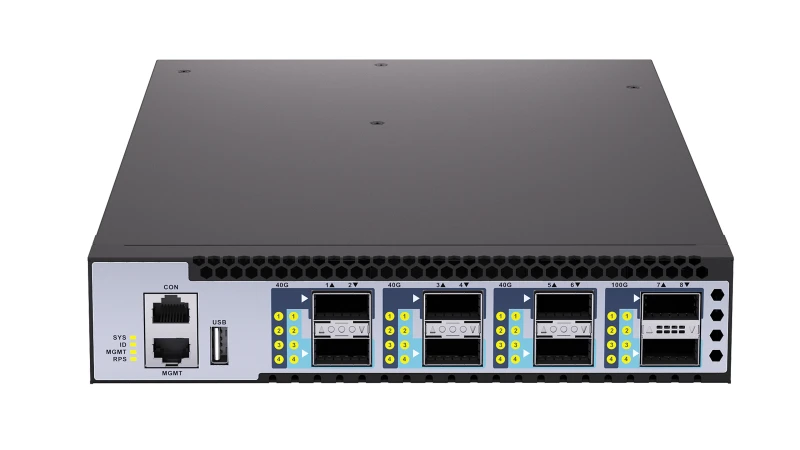

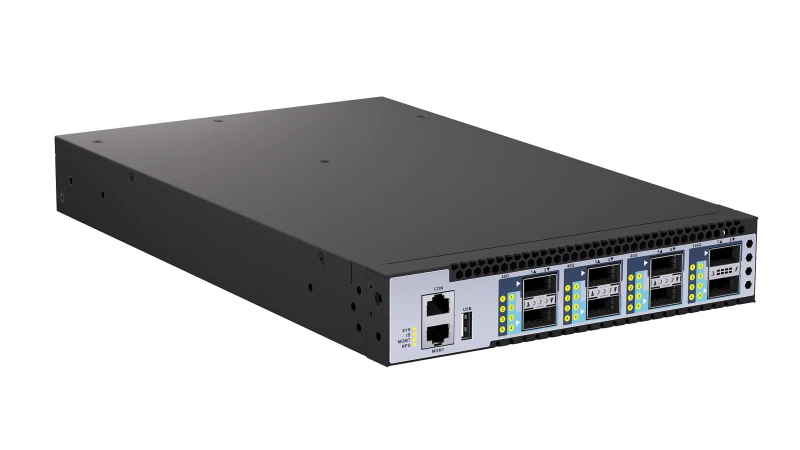

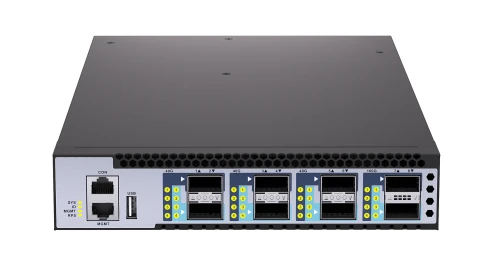

8-Port 40G/100G L3 Managed Ethernet Mini Data Center Switch
Specifications
| Model Name: | STH-2C6QX-HSI |
|---|---|
| Port: | 2*100G QSFP28 and 6*40G SFP28 |
| Power: | Optional AC/DC Input, Plug and Play |
| Airflow: | Front to Rear |
| Fan: | 1*hot-swappable fan modular |
| Features: | IPv6, OSPF, BGP, PIM, MPLS, Stacking etc. |
| Chip: | CENTEC CTC7132 |
| Customization: | Support |
| Dimension: | 215*356*44mm |
| Weight: | 3.5Kg/N.W, 4Kg/G.W |
| Warranty: | 1 Year |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Built-in SDVoE API Server simplifies user operation steps.
- Supports the implementation of physical dual-machine redundancy in 1U space, reducing the user's usage cost.
- MLAG which can build an Active-Active system to improve the reliability of the network links from single board grade to device grade.
- Supports Precision Timing Protocol.
- Rich L2/L3 features like IPv6, OSPF, BGP, PIM, etc.
Applications
Campus, Enterprise, Data Center, and SDVoE networks
Frequently Asked Questions
Do you support OEM service?
What licenses do you have?
