Description
Leoni Fiber Optics offers an advanced range of glass fibers specifically designed for infrared (IR) applications. These fibers are crafted from pure fused silica glass with a low hydroxyl (OH) content, ensuring a uniform refractive index across the entire diameter. This high-quality construction allows the fibers to operate efficiently within a broad wavelength range from 400 nm to 2400 nm, covering both visible and infrared spectrums (VIS-IR). The versatility of these fibers makes them suitable for various applications, including sensor technology, spectroscopy, medical technology, and laser applications.

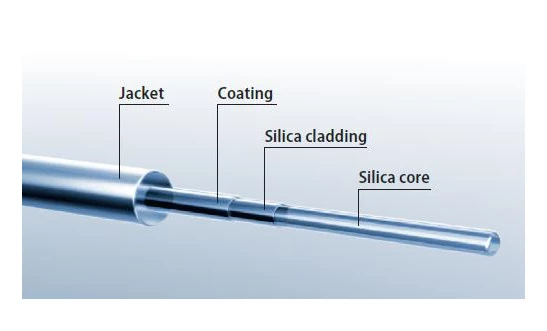

The fibers are available in a step-index multimode configuration, providing excellent performance in VIS-IR applications. The core diameters range from 40 µm to 200 µm, while the cladding diameters range from 110 µm to 220 µm, allowing for a diverse selection tailored to specific requirements. Each fiber is protected by a durable coating, available in acrylate, silicone, or polyimide, offering flexibility in terms of temperature resistance and physical protection. The acrylate and silicone coatings are suited for temperatures between -40 °C and 85 °C, with options extending up to 150 °C, while the polyimide coating withstands extreme temperatures from -190 °C to 385 °C.
For added protection and functionality, the fibers can be further encased in a jacket, with options including Nylon® and Tefzel®. These jackets not only enhance durability but also come in various colors such as black, blue, transparent, yellow, red, and white, providing customizable solutions for different environments and applications. The fibers are engineered to maintain optimal performance with short-term and long-term bending radii, ensuring reliability and longevity in demanding conditions. Leoni Fiber Optics' commitment to innovation and quality is evident in their comprehensive range of fiber solutions, meeting the needs of advanced optical applications.
Tefzel Silicone-Jacket Coated Multimode Fiber – 84810161N
Specifications |
|
|---|---|
| Core Diameter: | 40 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Wide Wavelength Range: Operates effectively from 400 nm to 2400 nm (VIS-IR).
- High-Quality Core: Made of pure fused silica glass with low OH content for a uniform refractive index.
- Versatile Coating Options: Available with single acrylate, dual acrylate, or polyimide coatings.
- Numerical Aperture: Standard 0.22 with options from 0.1 to 0.4 on request.
- Durable Design: Short-term bending radius: 100 x clad radius; Long-term bending radius: 600 x clad radius.
- Color Customization: Jacket colors available in black, blue, transparent, yellow, red, and white.
- Special Applications: Suitable for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Advanced Coating: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: The multimode fibers are ideal for transmitting optical data across a wide wavelength range from 400 nm to 2400 nm (VIS-IR).
- Sensor Technology: These fibers support various sensor applications due to their high-quality glass core and uniform refractive index.
- Spectroscopy: Suitable for spectroscopy, the fibers offer precise light transmission for accurate measurement and analysis.
- Medical Technology: The fibers can be used in medical devices and applications, providing reliable performance under varying conditions.
- Laser Applications: The fibers are designed to handle laser applications, ensuring efficient light delivery with minimal loss.
Frequently Asked Questions
The core of the glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The temperature range for the fibers with coating and jacket is -40 °C to 150 °C.
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The short-term bending radius for the fibers is 100 x clad radius.
