Description
The core of glass fibers for infrared (IR) applications is meticulously crafted from pure fused silica glass, characterized by a low hydroxyl (OH) content and a uniform refractive index across the entire diameter. These fibers are designed to operate efficiently within a wavelength range of 400 nm to 2400 nm, covering both visible (VIS) and infrared (IR) spectrums. Such a broad operational range makes them versatile for various high-precision applications.

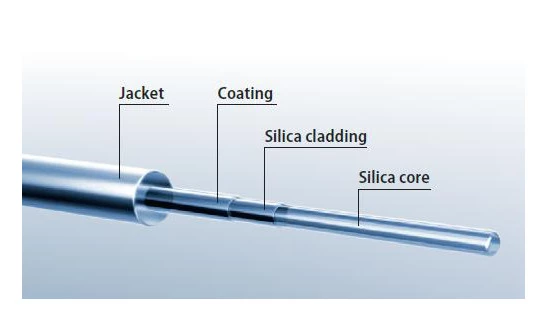

Each fiber is enveloped with a protective coating, which can be made of acrylate, silicone, or polyimide, depending on the specific requirements of the application. These coatings not only safeguard the fibers but also enhance their performance in diverse environmental conditions. The step-index multimode fibers are particularly renowned for their robust performance in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The fibers are available in a range of core diameters, ensuring flexibility and adaptability to specific needs. Furthermore, they are offered with different coating options, each providing distinct temperature ranges and durability. For instance, the polyimide coating can withstand extreme temperatures from -190 °C to 385 °C, making it suitable for demanding environments. Additionally, fibers with coatings and jackets, made from materials like Nylon® and Tefzel®, offer extended protection and are available in various colors for easy identification and integration into existing systems.
These high-quality optical fibers from LEONI Fiber Optics are engineered to meet the rigorous demands of modern technology, ensuring reliability and precision. Whether used in cutting-edge scientific research or advanced industrial applications, these fibers deliver exceptional performance, making them a preferred choice for professionals worldwide.
Single Acrylate Coated Multimode Fiber – 84810022N
Specifications |
|
|---|---|
| Core Diameter: | 1000 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- High-Quality Core Material: The core of the glass fibers is made from pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Broad Wavelength Range: Suitable for use in a wavelength range from 400 nm to 2400 nm (VIS-IR), making it versatile for various applications.
- Coating Options: Fibers are available with acrylate, silicone, or polyimide coatings, each offering unique properties for different environmental conditions.
- Numerical Aperture: Standard 0.22, with options available from 0.1 to 0.4 upon request.
- Step-Index Multimode: Designed for use in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Durability Features: Short-term bending radius is 100 times the clad radius, and long-term bending radius is 600 times the clad radius.
- Color Options for Jackets: Available in black, blue, transparent, yellow, red, and white (note: fiber code applies to black jackets, other colors available on request).
- Special Coating: ORMOCER® coating is available for continuous use at temperatures up to 200 °C.
- Product Codes: Each fiber is assigned a unique order number and fiber code for easy identification and ordering.
Applications
- Optical Data Transmission: The multimode fibers are ideal for transmitting optical data across various applications.
- Sensor Technology: Used in sensors to detect and measure physical properties.
- Spectroscopy: Suitable for analyzing materials by measuring light intensity as a function of wavelength.
- Medical Technology: Applied in medical devices and procedures requiring precise optical fibers.
- Laser Applications: Utilized in laser systems for various industrial and scientific uses.
Frequently Asked Questions
The core of glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The temperature range for the fibers with single acrylate coating is -40 °C to 85 °C.
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The short-term bending radius for the fibers is 100 x clad radius.
