Description

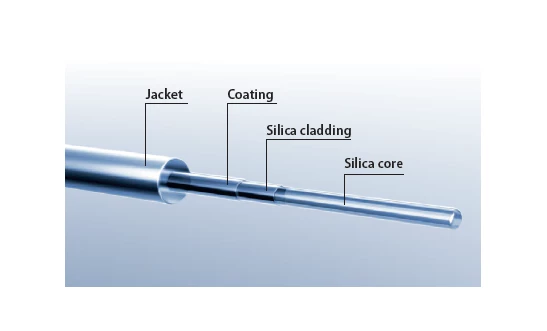

Leoni Fiber Optics offers an exceptional range of step-index multimode fibers designed for demanding optical applications. These fibers are crafted from pure fused silica glass, featuring a high OH content that ensures superior performance across a wide wavelength range from 190 nm to 1100 nm. This makes them ideal for UV-VIS applications, ensuring reliable and efficient light transmission. The construction of these fibers includes a silica core and cladding, providing a robust and durable solution for various optical needs.
The fibers are available with different coatings, including acrylate, silicone, and polyimide, each catering to specific environmental and performance requirements. The acrylate coating is suitable for standard conditions with a temperature range of -40 °C to 85 °C, while the polyimide coating can withstand extreme temperatures from -190 °C to 385 °C, making it perfect for high-temperature applications. These coatings not only protect the fibers but also enhance their flexibility and longevity.
Leoni's step-index multimode fibers are versatile and find utility in a plethora of fields such as optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications. Whether you need fibers with or without jackets, Leoni provides options with different jacket materials like Nylon® and Tefzel®, available in various colors to suit specific aesthetic or functional requirements. The fibers are designed to maintain optimal performance even under challenging conditions, with specific bending radii to ensure minimal signal loss.
Additionally, Leoni offers ORMOCER® coatings for applications requiring continuous use at elevated temperatures up to 200 °C. The precision manufacturing of these fibers ensures consistent core and cladding diameters, meeting the high standards required for advanced optical systems. Leoni Fiber Optics' commitment to quality and innovation makes their step-index multimode fibers a reliable choice for cutting-edge optical solutions.
Single Acrylate Coated Multimode Fiber – 84800004N
Specifications |
|
|---|---|
| Core Diameter: | 100 um |
| Wavelength Range: | 190 – 1100 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Material Composition: Core and cladding are made of pure fused silica glass with high OH content.
- Wavelength Range: Operates effectively from 190 nm to 1100 nm (UV-VIS).
- Coating Options: Available with coatings of acrylate, silicone, or polyimide.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Core and Cladding Sizes: Core diameters range from 50 μm to 1500 μm, with corresponding cladding diameters.
- Numerical Aperture: Standard NA of 0.22 with options ranging from 0.1 to 0.28 upon request.
- Jacket Options: Available with Nylon® or Tefzel® jackets in various colors such as black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term bending radius is 100x clad radius and long-term bending radius is 600x clad radius.
- Special Features: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: These fibers are ideal for high-speed optical data transmission due to their step-index multimode design.
- Sensor Technology: Suitable for various sensor applications, leveraging the fibers' ability to transmit light over a wide range of wavelengths.
- Spectroscopy: The fibers' high OH content and broad wavelength range make them perfect for spectroscopic analysis.
- Medical Technology: Utilized in medical equipment for diagnostics and treatment, thanks to their precision and reliability.
- Laser Applications: These fibers can handle laser light transmission, making them suitable for laser-based technologies and processes.
Frequently Asked Questions
These multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The short-term bending radius is 100 x clad radius, and the long-term bending radius is 600 × clad radius.
The temperature range for these fibers is -40 °C to 85 °C, and optionally 150 °C.
The fibers are used in a wavelength range from 190 nm to 1100 nm (UV-VIS).
The numerical aperture for these fibers is 0.22 (0.1 to 0.28 on request).
