Description

j-fiber’s Pure Silica Large Core Fibers are a versatile solution for a variety of demanding applications across electronic, medical, and research and development fields. These fibers are crafted with precision to cater to specific needs, offering customization options that include UV or IR laser transmissions, spectroscopy, and high-power transmissions. The adaptability of these fibers is further enhanced by the ability to combine all fiber designs with a range of specialty coatings, ensuring optimal performance in diverse environments.

The Pure Silica Large Core Fibers are engineered to deliver exceptional performance across a wide spectrum of customer and application-specific designs. They are suitable for both UV and IR spectral ranges, with high OH content for UV applications and tailored specifications for IR applications. The fibers offer different Numerical Aperture (NA) levels and Cladding to Core Diameter Ratios (CCDR), which can be adjusted based on the application wavelength and customer requirements. Additionally, the option for double-clad fibers provides enhanced functionality for specialized uses.

These fibers are constructed with a step-index refractive index profile, ensuring reliable light transmission and minimal signal loss. The core and cladding compositions are made from high-quality SiO2, with core diameters ranging from 50 to 600 µm and cladding diameters from 80 to 700 µm. The fibers are designed to maintain precise tolerances, ensuring consistent performance and reliability. The mechanical characteristics of the fibers, including a proof test of ≥ 100 kpsi and a median tensile strength of ≥ 3.3 GPa, underscore their durability and suitability for high-stress applications.

With a focus on quality and precision, j-fiber’s Pure Silica Large Core Fibers are an ideal choice for those seeking reliable and customizable fiber solutions. Whether for high-power transmissions or specialized laser applications, these fibers provide the flexibility and performance needed to meet the most demanding requirements.

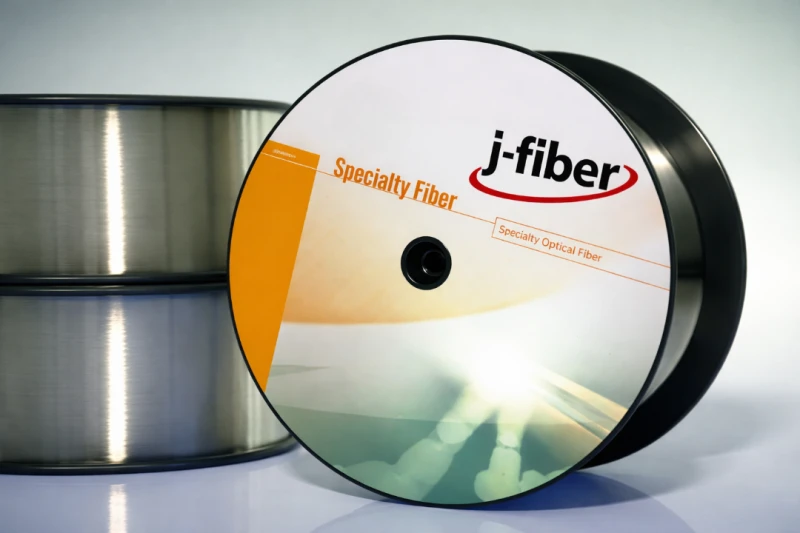

j-fiber Pure Silica Large Core Fibers for UV/IR Applications

Specifications

Core Diameter: 50 um
Wavelength Range: 200 – 800 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Core Composition: SiO2
Cladding Composition: SiO2 /F
Refractive Index Profile: Step-index
Core Diameter (typical): 50 - 600 µm
CCDR: 1.04 - 1.40
Cladding Diameter (typ.): 80 - 700 µm
Cladding Diam. Tolerance: ≤ 2 %
Cladding Non-circularity: ≤ 2.0 %
Numerical Aperture: 0.15 ± 0.02
Numerical Aperture: 0.22 ± 0.02
Numerical Aperture: 0.24 ± 0.02
Proof Test: ≥ 100 kpsi
Median Tensile Strength: ≥ 3.3 GPa
Coating Strip Force (typical): 1.5 N
Spectral Range (UV-VIS): 200 - 800 nm
Spectral Range (VIS-IR): 500 - 2100 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Versatile Applications: j-fiber’s Pure Silica Large Core Fibers are ideal for electronic, medical, and research and development applications. They can be customized for UV or IR laser transmissions, spectroscopy, and high power transmissions.
  • Customizable Designs: Available in a wide range of customer and application-specific designs, including different numerical aperture (NA) levels and Cladding to Core Diameter Ratios (CCDR).
  • UV and IR Spectral Range: Suitable for both UV spectral range (high OH content) and IR spectral range, providing flexibility for various applications.
  • Optional Double-Clad: Offers an optional double-clad design for enhanced performance in specific applications.
  • Specialty Coatings: All fiber designs can be combined with available specialty coatings such as single or double layer acrylate, high-temperature acrylate, and polyimide.
  • Core and Cladding Composition: Both core and cladding are composed of SiO2, with a step-index refractive index profile.
  • Wide Core Diameter Range: Core diameters range from 50 to 600 µm, with cladding diameters from 80 to 700 µm.
  • High Mechanical Strength: Features a proof test of ≥ 100 kpsi and a median tensile strength of ≥ 3.3 GPa, ensuring durability and reliability.
  • Dynamic Fatigue Resistance: Offers a dynamic fatigue stress of ≥ 18, enhancing the fiber's longevity under stress.
  • Precision Tolerances: Cladding diameter tolerance is ≤ 2%, and cladding non-circularity is ≤ 2.0%, ensuring high precision and performance.
  • Ordering Flexibility: Customers can specify parameters such as spectral range, core diameter, CCDR, coating type, and quantity when ordering.

Applications

  • Electronic Applications: Ideal for use in electronic systems requiring high precision and reliability.
  • Medical Applications: Suitable for medical devices and procedures, offering customization for specific needs.
  • Research and Development: Perfect for R&D projects, allowing for tailored solutions in various experimental setups.
  • UV or IR Laser Transmissions: Can be customized for ultraviolet or infrared laser applications.
  • Spectroscopy: Designed to support spectroscopy applications with high accuracy.
  • High Power Transmissions: Capable of handling high power transmissions efficiently.

Frequently Asked Questions

What are j-fiber’s Pure Silica Large Core Fibers used for?
They are used in electronic, medical, research, and development applications, including UV or IR laser transmissions, spectroscopy, and high power transmissions.
Can the fibers be customized?
Yes, the fibers can be customized to meet different applications, including different spectral ranges, numerical apertures, and cladding to core diameter ratios.
What are the available coatings for the fibers?
The available coatings include single or double layer acrylate, high-temperature acrylate, and polyimide.
What is the typical core diameter range for these fibers?
The typical core diameter range is from 50 to 600 micrometers.
What is the numerical aperture range for these fibers?
The numerical aperture range is 0.15 ± 0.02, 0.22 ± 0.02, and 0.24 ± 0.02.
What is the proof test value for these fibers?
The proof test value is ≥ 100 kpsi.
