Description
Discover the cutting-edge capabilities of our solarization-stable fibers, expertly engineered to withstand the rigors of UV-VIS applications. These fibers are specifically designed to maintain high transmission rates in the critical 190–250 nm range, ensuring exceptional performance and reliability. Crafted with a high OH content, these fibers exhibit remarkable resistance to solarization, a common issue in fibers exposed to UV light, thereby extending their operational lifespan.

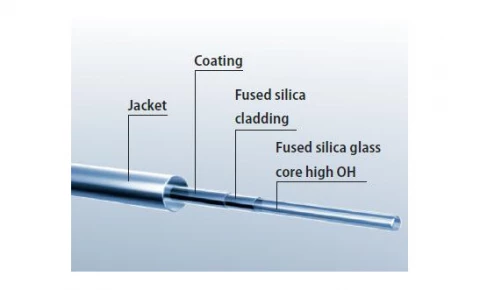

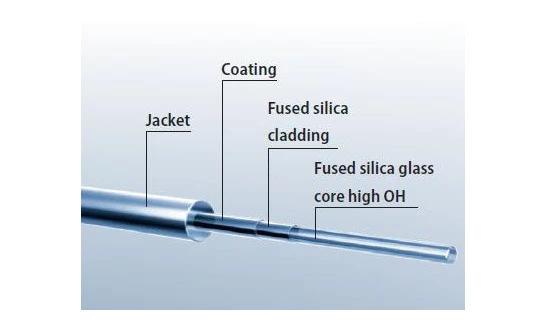

Our advanced fibers feature a fused silica glass core with a high OH content, enveloped by a fused silica cladding. This innovative construction enhances the fiber's ability to transmit light efficiently while minimizing absorption and degradation over time. The single acrylate or polyimide coating options provide additional protection and versatility, allowing these fibers to be tailored to specific environmental conditions and application needs.
For enhanced flexibility, our solarization-stable fibers are available in various core and cladding diameters, ranging from 100 μm to 600 μm for the core and 110 μm to 660 μm for the cladding. This range of sizes accommodates diverse application requirements, ensuring that you can find the perfect fit for your specific needs. Additionally, these fibers can be bundled into fiber bundles, starting from a single-fiber core of 30 μm, offering even greater adaptability and customization.
Our solarization-stable fibers are the ideal choice for applications requiring sustained performance under UV exposure. Experience the reliability and durability of these fibers, designed to deliver consistent results even in the most demanding environments. Whether you are working in scientific research, industrial processes, or any field requiring precise optical transmission, these fibers provide the stability and quality you need.
FiberTech Ultrasol Fibers - 84808003F
Specifications |
|
|---|---|
| Core Diameter: | 100 um |
| Wavelength Range: | 190 – 250 nm |
| Fiber Core Material: | Silica |
| Fiber Type: | Solar Stable |
| Fiber Length: | Custom |
Features
- High Transmission Efficiency: These fibers offer excellent transmission in the UV-VIS range, particularly between 190–250 nm, making them ideal for applications requiring high UV stability.
- Solarization-Stable: The ultrasol® fibers are engineered to resist solarization, ensuring long-term reliability and performance even under prolonged UV exposure.
- Core and Cladding Options: Available in various core diameters (100 μm to 600 μm) with corresponding cladding sizes, providing flexibility for different application needs.
- Coating Choices: Choose between single acrylate or polyimide coatings, with optional Nylon® or Tefzel® coatings for enhanced durability.
- Customizable Solutions: Further specifications, including CCDR, are available to meet specific project requirements.
- Durability: Constructed with fused silica glass core and cladding, ensuring high durability and resistance to harsh environments.
- Versatile Applications: Suitable for use with deuterium lamps and other UV light sources, making them perfect for laboratory and industrial applications.
- Available as Fiber Bundles: Solarization-stable fibers are also offered as bundles, allowing for a single-fiber core starting from 30 μm.
Applications
- UV Spectroscopy: Ideal for applications requiring stable transmission in deep-UV
- Analytical Instrumentation: Supports high-precision UV-based measurement systems
- UV Illumination Systems: Ensures reliable power delivery in illumination setups
- Scientific Research: Suitable for long-term UV exposure experiments and setups
- Industrial UV Processing: Supports applications involving UV curing or lithography
Frequently Asked Questions
These fibers are solarisation-stable and can be used in the critical range <240 nm without progressive absorption and complete failure, unlike UV-VIS fibers.
These fibers have a coating of either polyimide or single acrylate.
The fiber bundles have a single-fiber core diameter of 30 μm.
These fibers can be used in the 190-250 nm range.
The order number for these fibers is 84808003F.
