Description

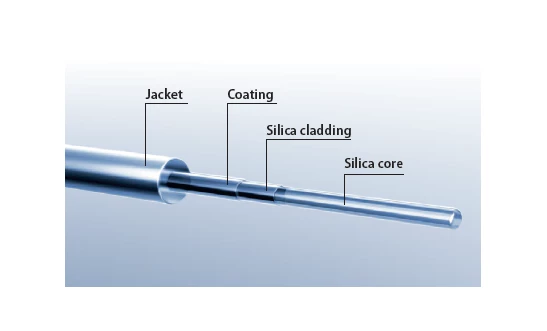

Experience the superior quality and performance of our step-index multimode fibers, meticulously crafted from pure fused silica glass with a high OH content. These fibers are designed for optimal functionality within a wavelength range of 190 nm to 1100 nm, making them ideal for UV-VIS applications. The robust construction ensures reliable performance across various environments, thanks to their innovative design that includes a core and cladding made from pure silica.
Our fibers are available with a choice of coatings, including acrylate, silicone, and polyimide, each selected for their distinct properties that enhance the fiber's durability and functionality. These coatings offer protection and flexibility, allowing the fibers to be used effectively in a wide temperature range. Whether you need fibers for optical data transmission, sensor technology, spectroscopy, medical technology, or laser applications, our step-index multimode fibers provide the versatility and reliability you require.
The fibers are available in various core and clad diameters to meet specific application needs, ensuring precise performance and adaptability. With options for single and dual acrylate coatings, as well as polyimide coatings, these fibers are engineered to withstand diverse environmental conditions. The polyimide-coated fibers, in particular, offer exceptional thermal stability, capable of withstanding temperatures from -190 °C to 385 °C, with brief exposure up to 400 °C.
For added protection and versatility, our fibers can also be supplied with a jacket, available in materials such as Nylon® and Tefzel®. These jackets not only provide additional mechanical protection but also come in a range of colors, allowing for easy identification and customization to suit your specific requirements. The combination of high-quality materials and precise engineering ensures that our step-index multimode fibers deliver outstanding performance and reliability in even the most demanding applications.
Dual Acrylate Coated Multimode Fiber – 84800033N
Specifications |
|
|---|---|
| Core Diameter: | 100 um |
| Wavelength Range: | 190 – 1100 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Material Composition: Core and cladding made of pure fused silica glass with high OH content.
- Wavelength Range: Operates effectively from 190 nm to 1100 nm (UV-VIS).
- Coating Options: Available with acrylate, silicone, or polyimide coatings.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Core Diameter Options: Available in diameters of 50, 100, 105, 115, 200, 300, 365, 400, 500, 600, 800, 910, 1000, and 1500 μm.
- Cladding Diameter Options: Available in diameters of 55, 125, 110, 125, 220, 330, 400, and 440 μm.
- Numerical Aperture: Standard 0.22, with options ranging from 0.1 to 0.28 upon request.
- Jacket Options: Available with Nylon® or Tefzel® jackets in various colors including black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term: 100 x clad radius; Long-term: 600 x clad radius.
- Special Coating: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: These fibers are used for transmitting optical data efficiently over a range of wavelengths from 190 nm to 1100 nm.
- Sensor Technology: Ideal for use in various sensor applications due to their reliable performance in UV-VIS range.
- Spectroscopy: Suitable for analytical applications requiring precise light measurement and analysis.
- Medical Technology: Utilized in medical devices and procedures that require high-quality optical fibers.
- Laser Applications: Effective in laser systems due to their high OH content and step-index multimode configuration.
Frequently Asked Questions
These multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The short-term bending radius is 100 x clad radius, and the long-term bending radius is 600 x clad radius.
The numerical aperture for these fibers is 0.22, with a range of 0.1 to 0.28 available upon request.
The temperature range for these fibers is -40 °C to 85 °C, with an optional range of up to 150 °C.
The fibers are used in a wavelength range from 190 nm to 1100 nm (UV-VIS).
