Description
Experience superior optical performance with our step-index multimode fibers, designed for a wide range of applications across various industries. These fibers boast a core and cladding made from pure fused silica glass, enriched with high OH content. This unique composition makes them ideal for use within a wavelength range from 190 nm to 1100 nm, covering both UV and VIS spectrums. The fibers are meticulously crafted to ensure optimal light transmission, making them a preferred choice for professionals in search of reliability and efficiency in optical data transmission.
Our step-index fibers are available with a variety of coatings, including acrylate, silicone, and polyimide, each tailored to meet specific environmental and application requirements. These coatings provide enhanced protection and durability, ensuring the fibers maintain their integrity under various temperature conditions. Whether you require fibers for standard environments or those capable of withstanding extreme temperatures, our selection has you covered.
With a focus on versatility, these multimode fibers are not only used in optical data transmission but also excel in sensor technology, spectroscopy, medical technology, and laser applications. The precise engineering behind each fiber ensures that they meet the rigorous demands of these advanced fields, providing consistent and accurate performance. Choose our step-index multimode fibers for a product that combines cutting-edge technology with unmatched quality.
Dual Acrylate Coated Multimode Fiber – 84800032N
Specifications |
|
|---|---|
| Core Diameter: | 50 um |
| Wavelength Range: | 190 – 1100 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features

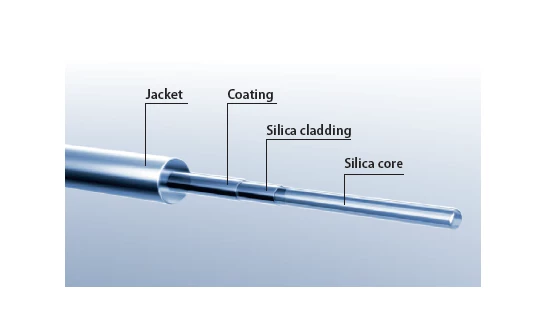

- Material Composition: Core and cladding are made of pure fused silica glass with high OH content.
- Wavelength Range: Suitable for use in the 190 nm to 1100 nm (UV-VIS) range.
- Coating Options: Available with acrylate, silicone, or polyimide coatings.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Core and Cladding Diameters: Core diameters range from 50 μm to 1500 μm, and cladding diameters range from 55 μm to 440 μm.
- Numerical Aperture: Standard NA of 0.22, with options from 0.1 to 0.28 available on request.
- Jacket Options: Available with Nylon® or Tefzel® jackets, in various colors including black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term bending radius is 100 times the clad radius, and long-term bending radius is 600 times the clad radius.
- Special Coatings: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: These step-index fibers are ideal for use in optical data transmission due to their high-quality silica core and cladding.
- Sensor Technology: The fibers are suitable for various sensor technology applications, providing reliable and accurate data transmission.
- Spectroscopy: With a wavelength range from 190 nm to 1100 nm (UV-VIS), these fibers are perfect for spectroscopy applications.
- Medical Technology: The fibers can be utilized in medical technology, offering precision and reliability in various medical devices and systems.
- Laser Applications: These fibers are also used in laser applications, providing efficient and effective light transmission for various laser technologies.
Frequently Asked Questions
These multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The temperature range for these fibers is -40°C to 85°C, with an option to extend to 150°C for some coatings.
The short-term bending radius is 100 x clad radius, and the long-term bending radius is 600 x clad radius.
The numerical aperture of these fibers is 0.22, with a range of 0.1 to 0.28 available on request.
The fibers are used in a wavelength range from 190 nm to 1100 nm (UV-VIS).
