Description

The DTS0120 High Power Shutters and Safety Interlocks from OZ Optics are designed to address the growing need for enhanced safety and reliability in high-power fiber optic systems. As laser systems become more powerful and prevalent in industrial, medical, and research applications, the importance of robust safety mechanisms cannot be overstated. These advanced shutter systems are engineered to seamlessly integrate with high-power fiber optic components, providing both free-space-to-fiber and fiber-to-fiber coupling solutions.

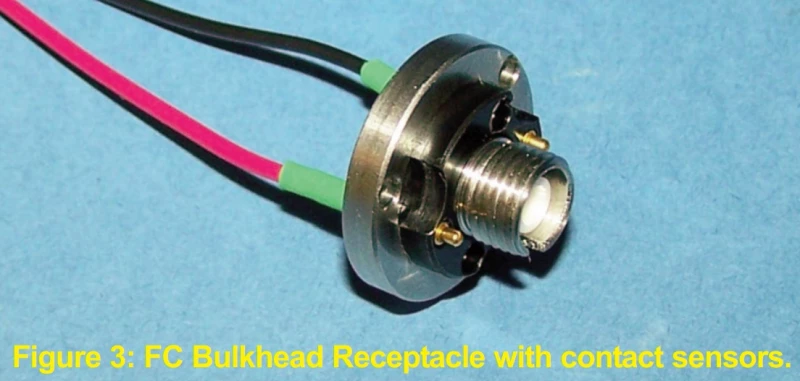

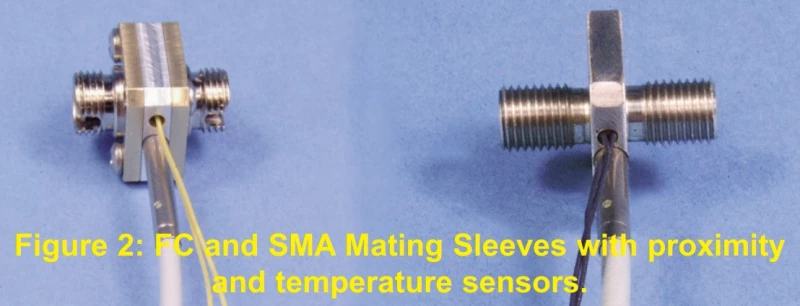

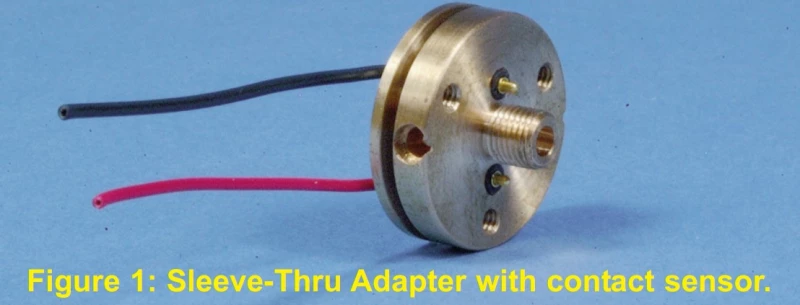

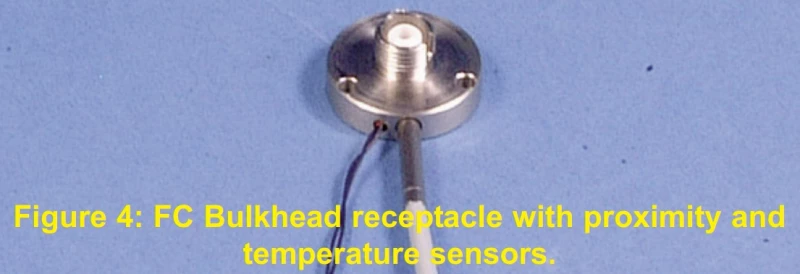

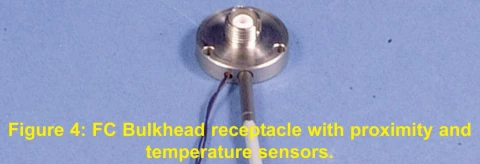

At the core of the DTS0120 system is the integration of smart sensors, including proximity and temperature sensors, directly into the fiber optic assemblies. These sensors continuously monitor the operational status of the connectors and the surrounding environment. For example, proximity sensors detect the presence or absence of connector ferrules, ensuring that any accidental disconnection is immediately identified. This feature is critical in preventing inadvertent exposure to high-power laser beams, which can pose significant safety risks to operators and equipment.

Temperature sensors, such as thermocouples or thermistors, are strategically placed to monitor for abnormal heat buildup, which may indicate issues like connector damage or misalignment. If excessive temperatures are detected, the system can automatically trigger safety interlocks or initiate a controlled laser shutdown, thereby protecting both personnel and sensitive optical components from potential harm. This proactive approach to safety is particularly valuable in high-power applications where even minor faults can lead to significant hazards.

The DTS0120 series is compatible with widely used connector types such as SMA 905 and FC, including high-power air gap style connectors. The modular design allows for easy integration into existing setups, whether for laser-to-fiber or fiber-to-fiber configurations. For applications demanding extreme power handling, the shutters can be equipped with additional beam dumps and heat sinks to safely absorb and dissipate blocked laser energy. This comprehensive safety solution ensures that high-power fiber optic systems operate with maximum reliability and operator protection.

High Power Fiber Optic Shutters and Safety Interlocks

Visit the OZ Optics Store

Specifications

Insertion Loss: 0.5 dB
Power Handling (max): 50 W
Shutter Response Speed: 5 msec
Power Handling: Multiple Watt CW
Shutter Speed: < 5 msec
Control Signal: 5 Volt TTL
Connector Compatibility: SMA 905 and FC connectors
Sensor Types: Temperature and connector proximity sensors

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Handling Capability: Designed for multiple Watt continuous wave (CW) power, ideal for demanding fiber optic and laser applications.
  • Integrated Safety Interlocks: Equipped with advanced proximity and temperature sensors to provide real-time monitoring and automatic laser shutdown in unsafe conditions.
  • Ultra-Fast Shutter Response: Achieves shutter speeds of less than 5 milliseconds for rapid protection and operational efficiency.
  • TTL Signal Control: Easily controlled via standard 5 Volt TTL signals for seamless integration into automated systems.
  • Versatile Connector Compatibility: Supports SMA 905 and FC connectors, including high power air gap style connectors, ensuring broad system compatibility.
  • Flexible Configuration Options: Available in both laser-to-fiber and fiber-to-fiber versions to suit a wide range of optical setups.
  • Enhanced Thermal Protection: Optional thermocouple or thermistor sensors detect abnormal temperature rises, enabling preemptive safety actions.
  • Smart Sensor Integration: Proximity sensors detect connector presence or absence, preventing accidental exposure to high power laser beams.
  • Robust Construction: Engineered for reliable performance in high power environments, with options for additional beam dumps and heat sinks to safely absorb blocked laser power.
  • Field-Proven Safety: Trusted by industry professionals for critical applications requiring stringent laser safety and interlock features.

Applications

  • Laser Safety Interlock Systems: Integrate high power shutters and smart sensors into laser systems to provide automatic shutdown or interlock when unsafe conditions are detected, ensuring operator safety in research, medical, and industrial environments.
  • High Power Fiber Optic Communication: Protect sensitive equipment and personnel in high power fiber optic communication links by using proximity and temperature sensors to monitor connector status and prevent accidental exposure to laser radiation.
  • Laboratory and Research Applications: Safeguard experimental setups involving high power lasers by employing smart shutters with integrated sensors, allowing for real-time monitoring and rapid response to unsafe conditions.
  • Medical Laser Systems: Enhance safety in medical laser applications such as ophthalmology, dermatology, and surgery by incorporating fiber optic shutters with interlock capabilities to prevent accidental laser emission during connector changes or system maintenance.
  • Industrial Laser Processing: Ensure safe operation in laser cutting, welding, and marking systems by using fiber optic connectors and shutters with built-in safety sensors to detect connector presence and monitor temperature rise due to back-reflection or misalignment.
  • Remote Sensing and LIDAR Systems: Protect high power LIDAR and remote sensing equipment by integrating safety interlocks that respond to connector status and thermal conditions, minimizing the risk of damage or injury.
  • Telecommunications Infrastructure: Prevent accidental exposure to high power optical signals in telecom networks by utilizing smart mating sleeves and adapters with proximity and temperature sensors for enhanced safety during maintenance and installation.
  • Military and Aerospace Applications: Improve safety and reliability in defense and aerospace laser systems by implementing high power fiber optic shutters with advanced sensor-based interlocks.
  • Test and Measurement Equipment: Integrate safety interlocks in optical test benches and measurement setups to automatically disable high power sources when connectors are removed or abnormal temperatures are detected.
  • Custom OEM Laser Systems: Offer enhanced safety features for OEM laser manufacturers by providing customizable fiber optic connectors, adapters, and shutters with integrated proximity and temperature sensors for compliance with stringent safety standards.

Frequently Asked Questions

What are high power fiber optic shutters and safety interlocks from OZ Optics?
OZ Optics' high power fiber optic shutters and safety interlocks are advanced components designed to safely manage and control high power laser signals in fiber optic systems. They incorporate smart sensors, such as proximity and temperature sensors, to provide safety interlocks that can automatically shut down lasers or alert operators in case of unsafe conditions, such as connector removal or excessive temperature.
How do the proximity and temperature sensors enhance safety in these fiber optic shutters?
The proximity sensors detect the presence or absence of a fiber connector, ensuring that the system can trigger a safety interlock or shut down the laser if a connector is removed. Temperature sensors, such as thermocouples or thermistors, monitor for abnormal heat buildup, which can indicate damage or misalignment. If excessive temperature is detected, the system can alert the operator or automatically shut down the laser to prevent accidents or equipment damage.
What connector types are compatible with OZ Optics high power shutters and safety interlocks?
These safety interlock systems are compatible with SMA 905 and FC connectors, including high power air gap style connectors. They can be used in both laser-to-fiber and fiber-to-fiber coupling applications, making them versatile for various high power fiber optic setups.
What is the maximum power handling capability of these fiber optic shutters?
OZ Optics' high power shutters are designed to handle multiple watts of continuous wave (CW) laser power. For extreme power handling, the shutters can be equipped with additional beam dumps and heat sinks to safely absorb and dissipate blocked laser energy.
How fast do the OZ Optics high power shutters operate?
The shutters feature rapid actuation with shutter speeds of less than 5 milliseconds, ensuring quick response times for safety interlocks and laser control.
How are the high power fiber optic shutters controlled?
These shutters are controlled via a standard 5 Volt TTL (Transistor-Transistor Logic) signal, allowing for easy integration with existing laser safety and control systems.
What applications benefit from using OZ Optics high power shutters and safety interlocks?
These components are ideal for high power laser systems in research, industrial, and medical applications where operator safety and equipment protection are critical. They are particularly useful in setups requiring frequent connector changes or where high power laser beams are routed through fiber optic connectors.
