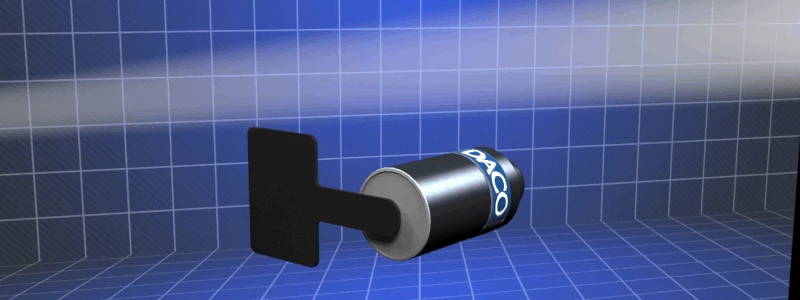

Advanced Laser Spring Shutters

Specifications

Insertion Loss: Not Specified
Power Handling (max): 13 W
Shutter Response Speed: Not Specified
Diameter: 0.38″- 0.44″
Lengths Available: 0.38″ - 0.82″
Power Input Range: DC – 0.4 to 1.3 watt @ 25ºC; AC – 0.7 to 1.8 watts @ 25ºC
Operating Voltage: DC operation: up to 45 volts; AC operation: 26 and 115 volts 400Hz
Rotation: Up to 60º CW or CCW Standard Tolerance + 3
Shutter Blade: Customized per size/shape and surface finish requirements
Document icon Download Data Sheet Download icon

Features

  • Highly reliable and rugged
  • Designed for military and defense industry applications
  • Available in a wide selection of models, sizes, and mounting features
  • Customizable to meet exacting client specifications
  • Up to 60º rotation in both CW and CCW directions

Applications

  • Military and defense industry applications
  • Laser systems
  • Optical systems
  • Aerospace industry
  • Scientific research
