Description
art photonics offers silica fiber bundles designed to cover a wide spectral range from UV (200-400 nm) to visible and near-IR (750-2500 nm) to mid-IR (2.5 - 18 µm). These customizable fiber bundles feature standard or custom connectors and ferrules, allowing for various applications such as light splitting, light combining, and light beam reshaping. They are ideal for use in fiber optic sensors, probes, and spectroscopy applications.

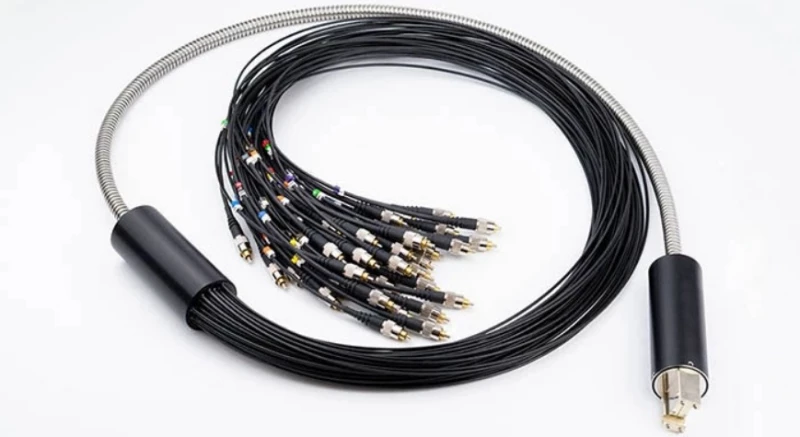

FlexiRay Silica Fiber Bundles for Broad Spectral Range Solutions
Specifications
| Design: | From all silica fiber core 100/ clad 110 µm |
|---|---|
| NA: | 0.22 |
| Coating: | polyimide (OD = 125 µm) |
| Fiber Quantity: | 50 |
| Bundle Length: | 3m |
| Protected: | Protected in polymere tubing |
| Spectral Range: | 200-1800 nm |
Download Data Sheet
Features
- Silica fiber bundles covering UV, visible, near-IR, and mid-IR ranges
- Customizable fiber arrangement
- Available with standard or custom connectors and ferrules
- Capable of splitting light from a light source into multiple channels
- Enables combining light from multiple sources

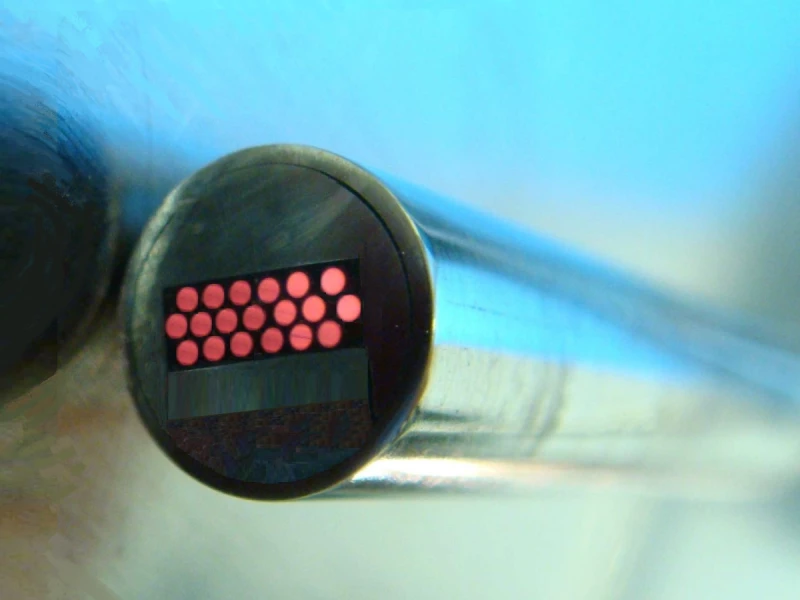

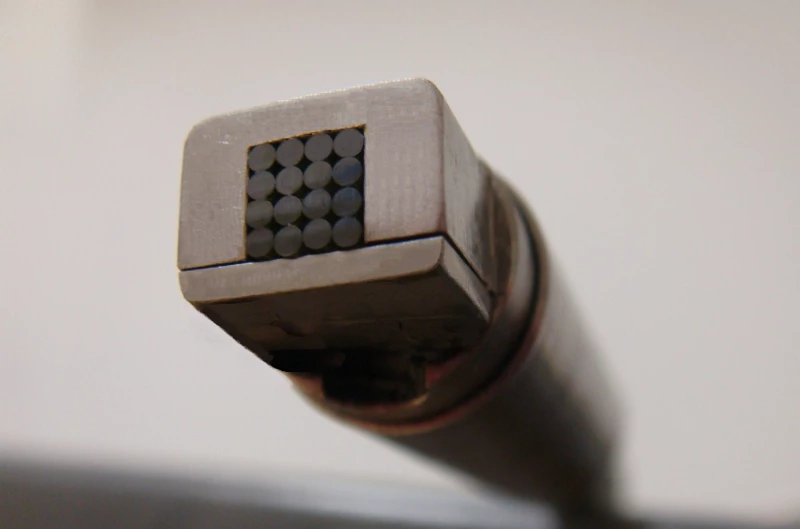

- Reshapes the cross-section of light beams
Applications
- Fiber optic sensors and probes
- Spectroscopy applications
- Optical sensing systems
- Light beam manipulation and reshaping
Frequently Asked Questions
What is the spectral range covered by FlexiRay Silica Fiber Bundles?
The spectral range covered is from UV (200-400 nm) to visible and near-IR (750-2500 nm) to mid-IR (2.5 - 18 µm).
What is the design of the fiber bundles?
From all silica fiber core 100/ clad 110 µm
What is the numerical aperture (NA) of the fiber bundles?
0.22
What is the coating material used for the fiber bundles?
Polyimide (OD = 125 µm)
How many fibers are included in a bundle?
50
What is the length of the fiber bundles?
3m
Are the fiber bundles protected?
Yes, they are protected in polymer tubing.
What applications are these fiber bundles suitable for?
Fiber optic sensors, probes, spectroscopy applications, optical sensing systems, light beam manipulation, and reshaping.
Can the fiber arrangement be customized?
Yes, the fiber arrangement is customizable.
Are there options for connectors and ferrules?
Yes, there are options for both standard and custom connectors and ferrules.
What are the key features of FlexiRay Silica Fiber Bundles?
Silica fiber bundles feature a broad spectral range; Customizable fiber arrangement; Available with standard or custom connectors and ferrules; Capable of splitting and combining light; and Reshaping of light beam cross-section
Is there any additional documentation available?
Yes, a data sheet can be downloaded for more detailed information.
