Description
Discover our Focusing Adjustable Fiber Coupler for CO2 Laser, also known as the Laser Focusing Coupler (LaFoCoupler). This innovative accessory is designed to optimize laser beam focusing in your CO2 laser applications. With its adjustable features and high-quality components, it offers precise control and enhanced performance.
Experience the exceptional control and precision of our Focusing Adjustable Fiber Coupler for CO2 Laser, designed to elevate your laser focusing capabilities.
Laser Focusing Coupler (LaFoCoupler)
Specifications
| Maximal Laser Beam Diameter: | 8 mm |
|---|---|
| Diameter: | 30 mm |
| Length (with Hermetic Unit): | 140 mm |
| Connecting Dimensions: | screw M30*1 |
Download Data Sheet
Features
- Adjustable Design: The coupler features an adjustable design, allowing you to fine-tune the laser beam focus according to your specific requirements.

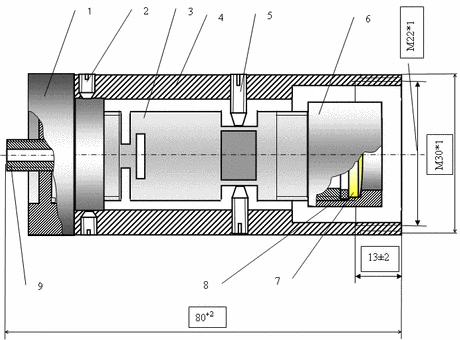

- Components: The LaFoCoupler includes a lid, fixing screw, positioner, body, adjusting screws (4 screws for X-Y adjustment), screwnut, Zn-Se lens (Ø14, F50) with anti-reflective coating at 10.6µm, washer, and SMA-adapter.
- Specifications: The maximal laser beam diameter supported by the coupler is 8mm. The Laser FoCoupler has a diameter of 30mm and a length of 140mm (including the hermetic unit). It features connecting dimensions with a screw size of M30*1.
Applications
- Precise Laser Focusing: The Focusing Adjustable Fiber Coupler enables precise laser beam focusing, ensuring optimal performance in CO2 laser applications.
- Laser Systems: This coupler is suitable for use in various laser systems that require accurate and controlled focusing.
- Research and Development: The LaFoCoupler is an ideal tool for researchers and developers working on CO2 laser-related projects, offering versatility and reliable performance.
Frequently Asked Questions
What is a Laser Focusing Coupler (LaFoCoupler)?
A Laser Focusing Coupler (LaFoCoupler) is an adjustable fiber coupler designed for use with CO2 lasers.
What is the maximum laser beam diameter that the LaFoCoupler can accommodate?
The LaFoCoupler can accommodate a maximum laser beam diameter of 8mm.
What are the components of the LaFoCoupler?
The LaFoCoupler consists of a lid, fixing screw, positioner, body, adjusting screw (4 screws for X-Y adjustment), screw nut, Zn-Se lens, washer, and SMA adapter.
What is the Zn-Se lens used for in the LaFoCoupler?
The Zn-Se lens in the LaFoCoupler has a diameter of 14mm and a focal length of 50mm, and is designed to focus the laser beam onto the fiber.
What applications is the LaFoCoupler suitable for?
The LaFoCoupler is suitable for use in mid-infrared fiber spectroscopy applications.
