Description

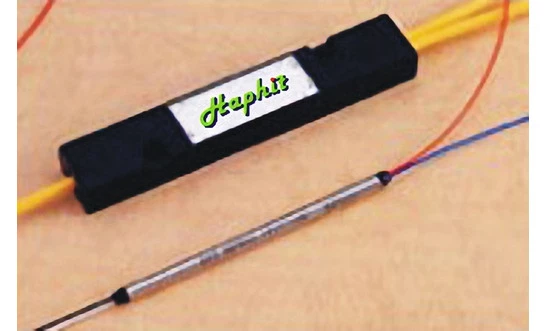

The 980~1060nm Fused PM Fiber Coupler/Splitter from Haphit is an innovative solution designed for pulse power applications. This product is crafted with precision to meet the demands of modern optical systems, ensuring optimal performance and reliability. It operates within a center wavelength range of 980nm, 1030nm, and 1060nm, making it versatile for various optical communication needs. The coupler/splitter is built with a focus on minimizing excess loss, achieving a value of ≤0.60dB, which enhances the efficiency of optical signal transmission.

Constructed using high-quality PM980 Panda Fiber or 10/125um PMSC Fiber, this device offers excellent stability and durability. It is engineered to handle a fiber tensile load of up to 5 Newtons, ensuring robustness in demanding environments. The product is capable of managing a maximum average optical power ranging from 0.3W to 10W, and a peak power for pulse applications up to 10kW, making it suitable for high-power applications. The design incorporates a directivity of ≥50dB and an extinction ratio of ≥18dB, ensuring high-quality signal separation and minimal crosstalk.

With a compact package dimension of (Ф)3.0x60mm for bare fiber and (Ф)3.0x76mm for a 900um loose tube, the coupler/splitter is easy to integrate into various systems without occupying excessive space. It operates efficiently within a temperature range of 0°C to 50°C and can be stored safely between -40°C and 85°C. This product is available without connectors, though options for FC/APC, LC/PC, and SC/UPC connectors are available upon request. The flexibility in configuration, fiber length, and coupling ratio allows for customization to meet specific application requirements.

1020-1120nm PM Fused Coupler for Pulse Power

Specifications

Wavelength: 1120 nm
Fiber Type: PM980 Fiber, 10/125um PM Fiber
Split Ratio: 0.01~50%
Average Power: 1-20W
Peak Power: 1-20kW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Excess Loss: Ensures minimal signal degradation for optimal performance.
  • Variety Coupling Ratio: Offers flexibility with multiple tap ratios: 1%, 2%, 5%, 10%, and 50%.
  • Epoxy-Free Optical Path: Provides a clean and reliable optical path without the use of epoxy.
  • High Reliability and Stability: Designed to deliver consistent performance over time.
  • Low Profile Packaging: Compact design suitable for space-constrained applications.

Applications:

  • LAN/WAN Systems
  • Signal Monitoring
  • Network Monitoring
  • CATV
  • Test Equipment

Connector Types Available:

  • Without Connector
  • FC/APC Connector
  • LC/PC Connector
  • SC/UPC Connector

Fiber Length Options:

  • 1.0m
  • 1.5m
  • 2.0m

Fiber Sleeve Options:

  • Bare Fiber
  • Loose Tube
  • 2mm Cable
  • 3mm Cable

Center Wavelength Options:

  • 980nm
  • 1030nm
  • 1060nm

Coupling Ratio Options:

  • 1% Ratio
  • 5% Ratio
  • 10% Ratio
  • 50% Ratio

Configuration Types:

  • 1x2 Type
  • 2x2 Type

Average Power Options:

  • 300mW
  • 1W
  • 5W
  • 10W

Peak Power Options:

  • 100W
  • 1kW

Applications

  • LAN WAN Systems
  • Signal Monitoring
  • Network Monitoring
  • CATV
  • Test Equipment

Frequently Asked Questions

What applications is the 1020-1120nm PM Fused Coupler for Pulse Power suitable for?
The 1020-1120nm PM Fused Coupler for Pulse Power is suitable for LAN WAN systems, signal monitoring, network monitoring, CATV, and test equipment.
What is the maximum average optical power that the coupler can handle?
The maximum average optical power that the coupler can handle ranges from 0.3W to 10W, depending on the model.
What is the wavelength range of the 1020-1120nm PM Fused Coupler for Pulse Power?
The wavelength range of the 1020-1120nm PM Fused Coupler for Pulse Power is 980-1060nm.
What is the Tap Ratio of the coupler?
The Tap Ratio of the coupler can be 1±0.5%, 2±0.8%, 5±1.5%, 10±2.3%, or 50±5%.
What is the operating temperature range of the coupler?
The operating temperature range of the coupler is 0-50°C.

Got more questions? Use the inquiry form to ask the supplier directly.
