Multi-Channel Optical Power Monitor with USB Interface
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2018
Description
The **In-line Power Monitor Array** is a sophisticated solution designed for precise optical power monitoring across multiple channels. This advanced product is engineered to detect output power over a broad 60dB optical power range, ensuring high accuracy and reliability in various optical applications. Developed from the renowned Eigenlight products and branded under Pure Photonics, this power monitor array integrates cutting-edge technology with user-friendly features, such as a built-in power supply and USB interface for seamless data read-out.
Designed for flexibility, the In-line Power Monitor Array can be configured with or without analog outputs, offering a proportional output voltage relative to the detected power level. This adaptability ensures that the device meets the specific needs of different operational environments. Additionally, the product can be equipped with a Variable Optical Attenuator (VOA) in the optical path, providing the capability to attenuate and control output power effectively.
The device is crafted to deliver exceptional performance, featuring a high sensitivity power range and minimal insertion loss. It supports a wide wavelength range from 1520 to 1620 nm, making it suitable for a variety of optical systems. The robust construction, featuring an aluminum case, ensures durability and reliability, while the compact design offers ease of integration into existing setups. The In-line Power Monitor Array is available in configurations of 2, 4, or 8 channels, catering to diverse operational requirements.
With its precise measurement capabilities, optional analog outputs, and customizable configurations, the In-line Power Monitor Array stands out as a versatile and essential tool for professionals in the optical field. Whether for high sensitivity or high power applications, this product delivers consistent and accurate performance, making it an invaluable asset for any optical monitoring system.

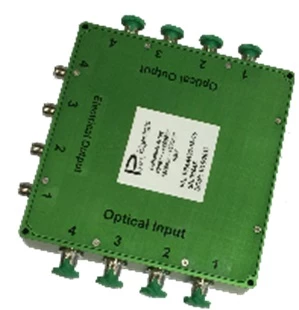

Multi-Channel Optical Power Monitor with USB Interface
Specifications |
|
|---|---|
| Power Range (input) High Sensitivity: | -50 - +15 dBm |
| Power Range (input) High Power: | -40 - +25 dBm |
| Insertion Loss No VOA High Sensitivity: | < 0.4 dB |
| Insertion Loss VOA High Sensitivity: | < 1.2 dB |
| Insertion Loss No VOA High Power: | < 0.2 dB |
| Insertion Loss VOA High Power: | < 1.0 dB |
| Wavelength Range: | 1520 – 1620 nm |
| Optional VOA Attenuation Range: | >20 dB |
| Operating Temperature: | 0 – 40 C |
| Storage Temperature: | 0 – 60 C |
| Case Materials: | Aluminum |
| Dimensions 2 / 4 Channels: | 4” x 4” x 1” |
| Dimensions 8 Channels: | 6” x 6” x 1” |
| Weight: | < 2 lb |
Features
- Multi-Channel Power Monitoring: Detects output power on multiple optical channels over a wide 60dB optical power range.
- High Sensitivity and High Power Options: Input power range of -50 to +15 dBm for high sensitivity and -40 to +25 dBm for high power.
- Low Insertion Loss: Less than 0.4 dB without VOA and less than 1.2 dB with VOA for high sensitivity; less than 0.2 dB without VOA and less than 1.0 dB with VOA for high power.
- Absolute Accuracy: ±0.2 dB ensures precise power measurement.
- Wide Wavelength Range: Operates effectively between 1520 nm and 1620 nm.
- High Return Loss: Greater than 70 dB for minimized signal reflection.
- Polarization Performance: Polarization dependent loss of less than 0.01 dB and polarization stability of less than 0.25 dB without VOA and less than 0.4 dB with VOA.
- Fast Response Time: Optical power dependent response time of less than 0.1 second.
- Optional Analog Output: Responsivity of 1 mV/dBm (default) to 10 mV/dBm with an output impedance of 40 kOhm.
Applications
- Optical Communication Networks: Monitor and manage optical power across multiple fibers in live networks.
- Fiber Optic Testing: Ideal for lab setups and field measurements requiring precise multi-channel power detection.
- Equipment Calibration: Supports calibration and verification of optical transceivers and amplifiers.
- Optical Power Control: Optional VOA models enable controlled attenuation for system optimization.
Frequently Asked Questions
The multi-channel power monitor array is used for detection of output power on multiple optical channels over a wide 60dB optical power range.
The product includes a built-in power supply and a USB interface for read-out of the power data.
The product can be configured with (PPAA…) or without (PPDA…) analog outputs, which provide an output voltage proportional to the detected power level (typically 1mV per dBm).
The features of the product include multi-channel in-line PD60dB dynamic range, high sensitivity and high power version, analog and digital outputs, 2/4/8 channel component, 16/24/32 channel 19” rack, and optional integrated VOA.
Please contact Pure Photonics for datasheet or further information at www.pure-photonics.com.
