Description

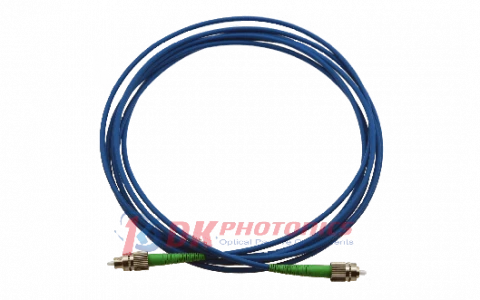

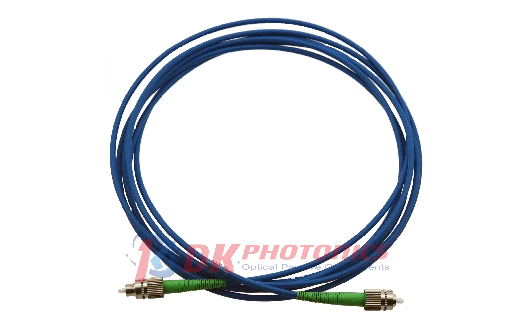

630 nm Single Mode Patch Cord – Precision Fiber Connectivity for Visible Wavelength Systems

The 630 nm Single Mode Patch Cord from DK Photonics is a precision-engineered fiber optic jumper designed specifically for single-mode operation in the visible spectrum. Optimized around 630 nm, this patch cord delivers stable, low-loss transmission for applications that demand high beam quality and reliable signal integrity at red wavelengths. Built on high-performance 630-HP or equivalent single-mode fiber, it is ideal for linking lasers, instruments, and photonic components in R&D labs, production lines, and demanding OEM systems.

Unlike general-purpose telecom patch cords optimized for 1310/1550 nm, this 630 nm single-mode cable is tailored for short-wavelength performance, ensuring tight mode control, low attenuation, and excellent return loss in visible light setups. This makes it a strong choice for precision alignment tasks, high-resolution measurement systems, and fiber-coupled light delivery where maintaining beam quality and power stability at 630 nm is critical. Each assembly is manufactured and tested to support dependable performance in both short bench-top links and more complex fiber routing environments.

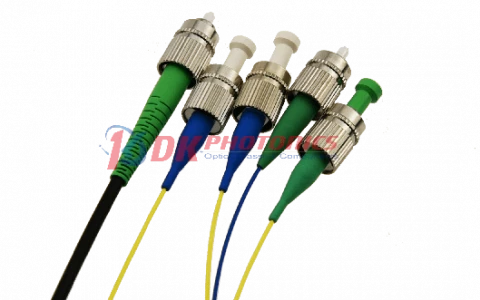

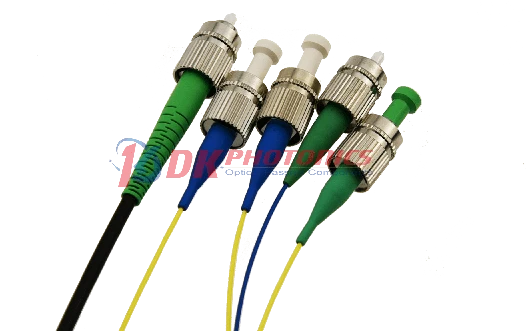

The patch cord is available with a full range of industry-standard connectors, including FC, SC, LC and others, in both PC and APC polishing styles to match the return-loss requirements of your system. FC connectors with narrow key (2.0 mm) options provide robust, repeatable coupling for laboratory and industrial setups, while LC or SC formats enable easy integration into dense patch panels or compact instruments. Various jacket diameters, such as 0.9 mm loose tube, 2.0 mm, or 3.0 mm outer diameters, allow you to balance flexibility, mechanical protection, and routing convenience according to your installation needs.

Designed for excellent stability and reliability, the 630 nm Single Mode Patch Cord offers low insertion loss and high return loss over its operating range. The mode field diameter is carefully controlled at the 1/e² level to support efficient coupling into optical components and to minimize splice and connector losses. This consistency is particularly beneficial in applications such as fiber lasers, optical transmitters, transceivers, interferometric systems, and precision fiber I/O ports, where even small variations in coupling efficiency can impact overall system performance and measurement accuracy.

Typical use cases include routing single-mode 630 nm laser light from sources to experimental setups, coupling visible wavelength signals into spectrometers or sensors, and creating stable fiber links between diagnostic modules and main instruments. In fiber-based biomedical systems, metrology tools, and inspection equipment operating in the red spectral range, the patch cord supports clean, low-noise signal delivery and repeatable system calibration. Its robust construction and consistent optical characteristics help reduce downtime and recalibration cycles, especially where frequent reconfiguration or connector mating is expected.

DK Photonics supports both standard and fully customized configurations. Customers can specify test wavelength, fiber type, connector style and polish, jacket diameter, cable length, and end-face configuration (patch cord versus pigtail with a single connector). Typical length tolerance is maintained within ±5 cm, with tighter tolerances available on request for systems requiring precise optical path lengths. This customization capability, combined with short lead times, allows you to obtain 630 nm single-mode patch cords that are precisely matched to your mechanical layout, optical design, and performance specifications.

With a focus on high return loss, low insertion loss, and long-term stability, the 630 nm Single Mode Patch Cord is a dependable interconnect for modern visible-wavelength fiber networks. Whether you are building a new fiber-coupled laser platform, upgrading measurement equipment, or standardizing internal lab patching at 630 nm, this patch cord provides a high-quality, application-optimized solution that integrates seamlessly into both research and industrial environments.

630nm Single Mode Patch-Cord

Visit the DK Photonics Store

Specifications

Wavelength Range: 600 – 860 nm
Cable Length: 1 m
Fiber Core Material: Silica
Mode Field Diameter (MFD): 4.2 ± 0.5 um @630nm
Test Wavelength: 630 nm
Insertion Loss: ≤1.5 dB
Return Loss: ≥40 dB
Fiber Type: 630-HP
Numerical Aperture: 0.12
Repeatability: ≤0.2 dB
Optical Power: ≤100 mW
Operation Temperature: -5 to +75 ℃
Storage Temperature: -40 to +85 ℃
Length Accuracy: +/-5CM

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Optimized for 630 nm Single‑Mode Operation – Precisely engineered for 630 nm wavelength applications, ensuring low attenuation and stable single‑mode transmission for visible‑range photonics systems.
  • Low Insertion Loss – High‑quality 630‑HP single‑mode fiber, precision polishing, and tight manufacturing tolerances deliver consistently low insertion loss, improving link budget and overall system performance.
  • High Return Loss / Low Back Reflection – Available with PC and APC connector end‑faces to achieve high return loss, minimizing back‑reflection for sensitive laser and detection systems.
  • Excellent Stability and Reliability – Robust design with high‑quality connectors and protective loose‑tube buffer ensures long‑term optical and mechanical stability under continuous operation.
  • Multiple Connector Options (FC, SC, LC, etc.) – Offered with a full range of standard connector types, including FC/PC, FC/APC, SC/PC, SC/APC, LC/PC, and custom interfaces to match existing fiber optic networks and instruments.

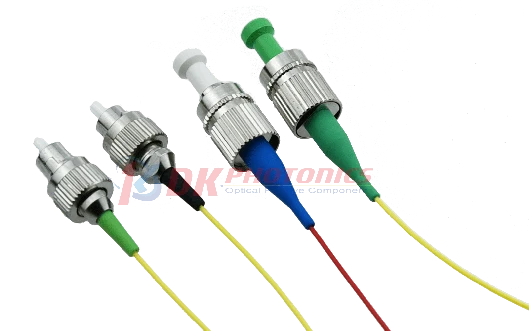

  • Patch‑Cord and Pigtail Configurations – Available as single‑mode patch cords (connectors on both ends) or fiber pigtails (single‑connector configuration) to support flexible integration and packaging requirements.
  • Precise Length Control – Standard length accuracy of ±5 cm supports precise system timing and routing; special tolerances and custom lengths are available on request.
  • High‑Grade 630‑HP Fiber – Uses 630‑HP single‑mode fiber with tightly controlled mode‑field diameter (MFD) at 630 nm for efficient coupling to lasers, modulators, and detectors.
  • Durable 0.9 mm Loose‑Tube Buffer – Standard 0.9 mm OD loose‑tube protection provides excellent flexibility and handling while maintaining fiber integrity; other jacket diameters and materials available as options.
  • Narrow‑Key FC Connector Option – FC connectors use a narrow key (2.0 mm) as standard, ensuring secure mating and repeatable connection in precision optical setups.
  • Low Polarization‑Dependent Loss – Optimized connector and fiber alignment help minimize PDL, beneficial for high‑coherence sources and polarization‑sensitive systems.
  • High Power Handling for 630 nm Fiber Lasers – Designed to support typical power levels of 630 nm fiber laser and diode sources when used within specified limits, suitable for laboratory and OEM environments.
  • Wide Range of Custom Options – Custom fiber types, connector combinations, jacket materials, cable diameters, and labeling are available to meet unique OEM and research requirements.
  • Compatible with Fiber Lasers and Laser Delivery – Ideal for coupling 630 nm single‑mode lasers into experimental setups, laser delivery heads, or downstream fiber components.
  • Perfect for Fiber Optic Instruments and Test Systems – Suited for connecting optical sources, power meters, OSA ports, and other fiber‑based instruments operating around 630 nm.
  • Reliable Fiber I/O for Modules and Transceivers – Recommended for use as fiber I/O patch cords on optical transmitters, transceivers, sensor heads, and integrated photonic modules that require clean 630 nm connections.
  • Laboratory, R&D, and OEM Ready – Manufactured to high repeatability standards with traceable specifications, making the patch cords suitable for both research laboratories and volume OEM deployment.
  • Short Lead Times and Engineering Support – DK Photonics can rapidly review custom specifications and provide quotations, drawings, and prompt delivery for tailored 630 nm single‑mode patch‑cord solutions.
  • Global Quality Standards – Designed and produced with industry‑standard processes comparable to leading international manufacturers, delivering consistent performance in demanding photonics applications.

Applications

  • Fiber laser systems at 630 nm
    Ideal for coupling red single-mode laser sources to downstream optics, enabling stable beam delivery in medical, industrial, and scientific laser setups.
  • Biomedical and medical diagnostics
    Used for routing 630 nm light in clinical instruments such as photodynamic therapy (PDT) systems, endoscopic illumination, optical biopsy tools, and spectroscopy-based diagnostic equipment.
  • Optical fiber instruments and test equipment
    Suitable as reference patch cords in optical spectrum analyzers, optical power meters, light sources, and interferometric test benches operating around 630 nm.
  • Fiber I/O ports for benchtop and OEM modules
    Serves as the input/output interface between benchtop instruments, OEM laser modules, and external fiber networks requiring stable single-mode performance at 630 nm.
  • Optical transmitters and transceivers in the visible band
    Provides low-loss, high-return-loss connections for specialty 630 nm transmitters, receivers, and bidirectional transceiver modules in laboratory and niche communication systems.
  • Precision metrology and interferometry
    Enables highly coherent, low-noise delivery of 630 nm light for interferometers, holography setups, and precision alignment systems where phase stability is critical.
  • R&D and laboratory photonics experiments
    Widely used in university and research labs for experiments at 630 nm, including nonlinear optics, quantum optics, fiber coupling tests, and component characterization.
  • Fiber-coupled spectroscopy and sensing
    Used as a robust link in absorption, fluorescence, and Raman spectroscopy systems that operate with red excitation at 630 nm, as well as in fiber-based sensing probes.
  • Machine vision and illumination delivery
    Delivers stable, single-mode 630 nm illumination in machine vision systems, alignment stations, and inspection tools that require precise, spatially filtered light.
  • Microscopy and bioimaging light delivery
    Provides clean, single-mode excitation at 630 nm for confocal, widefield, and fluorescence microscopes, improving spot quality and reproducibility in imaging systems.
  • Defense, aerospace, and avionics photonics
    Suitable for ruggedized visible-wavelength links in targeting, tracking, and onboard test systems where reliable 630 nm fiber connections are required.
  • Industrial alignment, positioning, and calibration
    Used for delivering visible red beams in alignment tools, position sensors, and calibration fixtures that need high stability and low insertion loss over time.
  • Prototype and custom OEM photonic subsystems
    Ideal for OEMs integrating 630 nm lasers, detectors, and optical modules, providing a dependable single-mode connection in compact or custom-designed assemblies.
  • Educational and training setups in optics
    Deployed in teaching labs to demonstrate single-mode fiber propagation, connector performance, and visible-wavelength fiber handling techniques at 630 nm.

Frequently Asked Questions

What is a 630 nm single mode patch cord and where is it used?
A 630 nm single mode patch cord is a fiber optic jumper cable optimized to operate around the 630 nm red wavelength in single‑mode regime. It is used to connect equipment and components in optical systems that work in the visible range, such as fiber lasers, fiber‑optic instruments, fiber I/O ports, optical transmitters and transceivers, R&D set‑ups, and test & measurement benches. Compared with multimode jumpers, a 630 nm single mode patch cord offers better beam quality, lower dispersion, and more stable, repeatable measurements at this wavelength.
What connector types and polishing options are available for the DK Photonics 630 nm single mode patch cord?
DK Photonics offers the 630 nm single mode patch cord with standard connector types such as FC, SC, and LC, and can usually support other common interfaces on request. Each connector can be supplied with PC (Physical Contact) or APC (Angled Physical Contact) polishing. PC is typically used for general lab and instrument connections, while APC—with an 8° angled end face—provides higher return loss and is preferred in applications that are sensitive to back‑reflections, such as laser systems and precision measurement setups. The example part number in the datasheet (…FA) refers to FC/APC connectors on all ports.
What are the typical optical performance specifications (insertion loss and return loss) of a 630 nm single mode patch cord?
While exact values can depend on connector type, grade, and length, DK Photonics 630 nm single mode patch cords are designed for low insertion loss and high return loss. Comparable products in the market commonly specify insertion loss around 0.2–0.5 dB per connector and return loss ≥50 dB for FC/PC and ≥60 dB or higher for FC/APC at 630 nm. The datasheet highlights "High Return Loss" and "Low Insertion Loss" as key features. For a formal test report or guaranteed limits at 630 nm, DK Photonics recommends contacting them directly with your required connector types and fiber length.
How do I choose between FC, SC, LC and PC vs APC for my 630 nm single mode patch cord?
Choose the connector type based on your equipment ports and mechanical requirements: - FC: Threaded, very common in labs and laser systems; excellent for stable, low‑vibration connections. - SC: Push‑pull with a square body; often used in telecom and some instruments for easy plug/unplug. - LC: Small form factor; ideal when panel space is limited or for dense connector panels. For end‑face polish: - PC: Good general‑purpose option when back‑reflection is not extremely critical. - APC: Angled end‑face for significantly improved return loss; best for laser cavities, high‑power or interferometric systems, and any setup where reflections can disturb performance. If you are unsure, FC/APC is a common choice for precision 630 nm laser and test applications.
Can I customize fiber type, cable diameter, and length for the DK Photonics 630 nm patch cord?
Yes. The product is offered as a configurable series. The example part number SMPC‑630‑P‑S63‑90‑20‑FA corresponds to: 630 nm single mode patch cord, P grade, 630‑HP single‑mode fiber, 0.9 mm OD loose tube, 2 m fiber length, with FC/APC connectors on all ports. DK Photonics can customize: - Fiber type (e.g., 630‑HP or equivalent visible single‑mode fiber), - Cable construction and outer diameter (0.9 mm, 2.0 mm, etc.), - Length (with a standard length tolerance of ±5 cm), - Connector types and polish (FC/SC/LC, PC or APC), - Single‑ended pigtails (SMPig…) or double‑ended patch cords (SMPC…). You can send your detailed specification to sales@dkphotonics.com for a custom quote and lead time.
What is the difference between a 630 nm single mode patch cord and standard 1310/1550 nm single mode jumpers?
A 630 nm single mode patch cord uses a visible‑wavelength single‑mode fiber (such as 630‑HP) that is engineered to support single‑mode operation around 630 nm. Standard telecom single‑mode fibers (e.g., SMF‑28) are optimized for 1310/1550 nm and will be multimode or poorly controlled at 630 nm. As a result, using a 630 nm‑optimized patch cord gives you: - True single‑mode propagation at 630 nm, - Better mode quality and lower modal dispersion for visible lasers, - More accurate and repeatable measurements in visible‑range instrumentation. For any system based on red lasers or visible‑range components, a dedicated 630 nm single mode patch cord is strongly recommended.
How do I specify or decode the part number for a DK Photonics 630 nm single mode patch cord?
DK Photonics uses the format SMPC‑①‑②‑③‑④‑⑤‑⑥ for patch cords and SMPig‑①‑②‑③‑④‑⑤‑⑥ for single‑ended pigtails. In the example SMPC‑630‑P‑S63‑90‑20‑FA: - SMPC: Single Mode Patch Cord series, - 630: Test wavelength / optimized wavelength (630 nm), - P: Product or grade code (e.g., standard performance grade), - S63: Fiber type (e.g., 630‑HP or similar visible single‑mode fiber), - 90: 0.9 mm OD loose tube cable, - 20: Fiber length (2.0 m), - FA: Connector configuration (FC/APC at all ports). If any code is unclear, include your desired wavelength, fiber type, cable OD, length, and connector style in plain text when you request a quote so DK Photonics can generate or confirm the correct P/N.

Got more questions? Use the inquiry form to ask the supplier directly.
