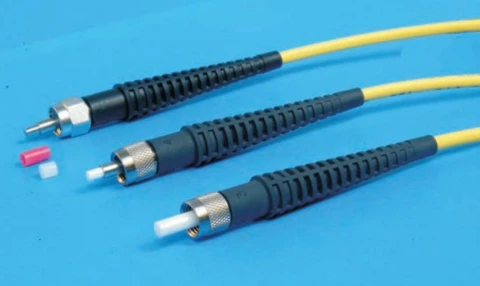

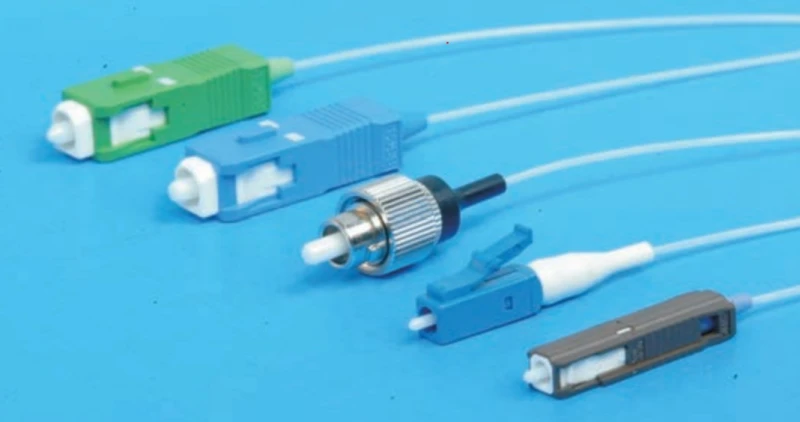

Thumbnail of Single-mode or Multimode Fiber Optic Patch Cords photo 1

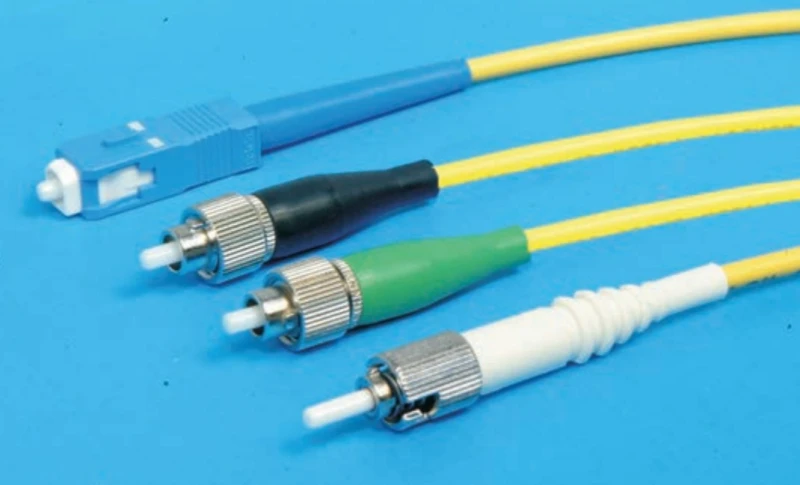

Thumbnail of Single-mode or Multimode Fiber Optic Patch Cords photo 2
Thumbnail of Single-mode or Multimode Fiber Optic Patch Cords photo 3

Description

SINGLEMODE OR MULTIMODE FIBER OPTIC PATCHCORDS

OZ Optics’ Singlemode and Multimode Fiber Optic Patchcords are engineered to deliver exceptional performance and reliability for a wide range of fiber optic applications. These patchcords are manufactured using premium quality fibers and connectors, ensuring low insertion loss and excellent repeatability, which are critical for maintaining signal integrity in demanding environments.

With the ability to support both singlemode and multimode transmission, these patchcords are suitable for high-speed telecommunications, interferometric sensors, integrated optics, fiber amplifiers, laser detection, and materials processing. The patchcords are available with a comprehensive selection of connector types, including FC/PC, SC, ST, LC, MU, and E2000 terminations, as well as custom ferrule options to meet specific application requirements. OZ Optics offers a diverse range of cabling options, such as unjacketed fiber, 0.9 mm loose tube buffer, 3 mm Kevlar-reinforced PVC jacketing, 3 mm and 5 mm armored cabling, and stainless steel armored solutions. This versatility ensures robust protection and flexibility for installations in various environments, from laboratory settings to industrial and field deployments. For multimode applications, the patchcords utilize both graded index and step index fiber types, supporting core sizes from 10 to 1500 microns.

These fibers are optimized for broad wavelength ranges, with options for low OH- fibers (ideal for 380 nm to 1600 nm transmission) and high OH- fibers (optimized for 280 nm to 900 nm). Singlemode fibers are available for wavelengths from 320 nm up to 2000 nm, with standard and high numerical aperture variants to suit specialized needs. This extensive wavelength compatibility makes the patchcords suitable for both legacy and next-generation optical systems. OZ Optics’ patchcords are designed to meet stringent Telcordia specifications, ensuring long-term reliability and consistent performance.

Each patchcord can be custom-manufactured to specified lengths and terminated with a wide array of connector types, providing tailored solutions for both standard and unique project requirements. With a large inventory of fiber types and the ability to accommodate customer-supplied fibers, these patchcords offer unmatched flexibility and quality for today’s advanced fiber optic networks.

Single-mode or Multimode Fiber Optic Patch Cords

Visit the OZ Optics Store

Specifications

Wavelength Range: 200 – 2000 nm
Fiber Core Material: Silica, Polymethyl Methacrylate (PMMA), Glass
Insertion Loss: < 0.2 dB
Operating Wavelength Range: 200 nm to 2000 nm
Core Size Range: 2 micron to 1500 micron
Cable Outside Diameter (O.D): 0.9 mm, 3 mm, 5 mm
Numerical Aperture (Singlemode): 0.13 (typical, 99%)
Multimode Fiber Sizes: 50/125, 62.5/125, 100/140 micron
Multimode Core Size Range: 10 to 1500 micron
Low OH- Fiber Transmission Range: 380 nm to over 1600 nm
High OH- Fiber Transmission Range: 280 nm to 900 nm
Singlemode Fiber Wavelength Range: 320 nm to 1550 nm, 2000 nm available
Connector Types: FC/PC, SC, ST, LC, MU, E2000, SMA

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Ultra-Low Insertion Loss: Less than 0.2 dB for superior signal transmission and minimal loss.
  • Exceptional Repeatability: Consistent performance across multiple connections and disconnections.
  • Wide Connector Compatibility: Available with FC/PC, SC, ST, LC, MU, E2000, SMA, and custom ferrule terminations to suit diverse requirements.
  • Customizable Fiber Types: Supports both singlemode and multimode fibers, including graded-index (GI) and step-index (SI) options for high power applications.
  • Broad Wavelength Range: Operates efficiently from 200 nm to 2000 nm, covering UV, visible, and IR applications.
  • Flexible Core Sizes: Core diameters from 2 micron up to 1500 micron to match specific application needs.
  • Low and High Numerical Aperture (NA) Options: Choose from standard and high NA fibers for optimal light coupling and performance.
  • Dielectric Anti-Reflection Coatings: Available to further reduce signal loss and back reflection.
  • Rugged Cabling Choices: Select from unjacketed fiber, 0.9 mm loose tube, 3 mm PVC, 3 mm armored, 5 mm heavy-duty armored, and stainless steel armored cabling for enhanced durability and protection.
  • Meets Telcordia Standards: Designed and manufactured to comply with stringent Telcordia reliability specifications.
  • Custom Lengths and Assemblies: Patchcords can be manufactured to any specified length and with customer-provided fibers if required.
  • Extensive Stock and Fast Delivery: Large assortment of fiber types and connectors available from stock for quick turnaround.
  • Ideal for High-Speed Data Transmission: Perfect for 10 Gbps and 40 Gbps telecommunications, fiber amplifiers, integrated optics, interferometric sensors, laser detection, and materials processing.

Applications

  • High-Speed Telecommunications
    Ideal for 10 Gbps and 40 Gbps optical networks, including data centers, metropolitan area networks (MANs), and long-haul telecommunications infrastructure. Ensures minimal signal loss and high reliability for mission-critical connections.
  • Interferometric Sensors
    Used in precision measurement systems such as fiber optic gyroscopes, hydrophones, and distributed acoustic sensing (DAS) for oil & gas, seismic monitoring, and structural health monitoring.
  • Integrated Optics
    Essential for connecting photonic integrated circuits (PICs), waveguides, and other integrated optical components in research, development, and manufacturing environments.
  • Fiber Amplifiers
    Suitable for linking to erbium-doped fiber amplifiers (EDFAs), ytterbium-doped fiber amplifiers, and Raman amplifiers in optical communication systems.
  • Laser Detection and Display
    Used in laser delivery systems for medical, industrial, and scientific applications, including laser spectroscopy, laser scanning, and display technologies.
  • Materials Processing
    Supports high-power laser delivery for cutting, welding, marking, and micromachining in industrial manufacturing processes.
  • Test and Measurement
    Utilized in optical time-domain reflectometers (OTDRs), optical spectrum analyzers, and other test equipment for fiber optic network installation and maintenance.
  • Biomedical and Life Sciences
    Enables precise light delivery and collection in medical imaging (OCT), endoscopy, fluorescence microscopy, and photodynamic therapy.
  • Research and Development
    Widely used in laboratories for prototyping, experimental setups, and custom optical systems across physics, chemistry, and engineering disciplines.
  • Military and Aerospace
    Provides robust, low-loss connections for avionics, secure communications, and sensor systems in harsh environments.
  • Broadcast and CATV
    Delivers high-bandwidth, low-loss signal transmission for television, radio, and multimedia distribution networks.
  • Data Centers and Enterprise Networks
    Ensures reliable, high-speed connections between servers, switches, and storage devices in modern IT infrastructure.
  • Industrial Automation and Control
    Facilitates noise-immune, high-speed data transmission in factory automation, robotics, and process control systems.
  • Custom and Specialty Applications
    Supports custom fiber types, connector configurations, and cable constructions for unique or demanding optical requirements.

Frequently Asked Questions

What are OZ Optics singlemode and multimode fiber optic patchcords used for?
OZ Optics singlemode and multimode fiber optic patchcords are designed for high-speed telecommunications (10 Gbps/40 Gbps), interferometric sensors, integrated optics, fiber amplifiers, laser detection and display, and materials processing applications. Their versatility and high performance make them suitable for a wide range of fiber optic systems.
What connector types are available for OZ Optics fiber optic patchcords?
OZ Optics patchcords can be terminated with a variety of industry-standard connectors, including FC/PC, SC, ST, LC, MU, E2000, and SMA connectors. Custom ferrule terminations and other connector types are also available upon request to meet specific application needs.
What are the key features of OZ Optics fiber optic patchcords?
Key features include low insertion loss (< 0.2 dB), excellent repeatability, a wide selection of cabling options, operation across wavelengths from 200 nm to 2000 nm, core sizes from 2 microns to 1500 microns, availability of both low and high numerical aperture fibers, and optional dielectric anti-reflection coatings. The patchcords are also designed to meet Telcordia specifications.
What fiber types and core sizes are available for these patchcords?
OZ Optics offers a large assortment of fiber types, including singlemode fibers for wavelengths from 320 nm to 2000 nm and multimode fibers such as graded index (50/125, 62.5/125, 100/140) and step index fibers with core sizes ranging from 10 microns up to 1500 microns. Both low OH- (IRVIS) and high OH- (UVVIS) fibers are available for different transmission ranges.
Can I order custom lengths and cable materials for OZ Optics patchcords?
Yes, OZ Optics manufactures patchcords to any specified length and offers a variety of cable materials, including unjacketed fiber, 0.9 mm loose tube buffer, 3 mm Kevlar-reinforced PVC jacketing, 3 mm and 5 mm armored cabling, and stainless steel armored options. Custom cabling services are also available for customer-provided fibers.
How do I choose between singlemode and multimode fiber patchcords?
Singlemode fibers are ideal for long-distance, high-bandwidth applications and are available for wavelengths from 320 nm to 2000 nm. Multimode fibers are suitable for shorter distances and high-power applications, with a variety of core sizes and transmission ranges depending on the dopants used. When ordering singlemode fibers, specify the intended operating wavelength to ensure optimal performance.

Got more questions? Use the inquiry form to ask the supplier directly.
