Description

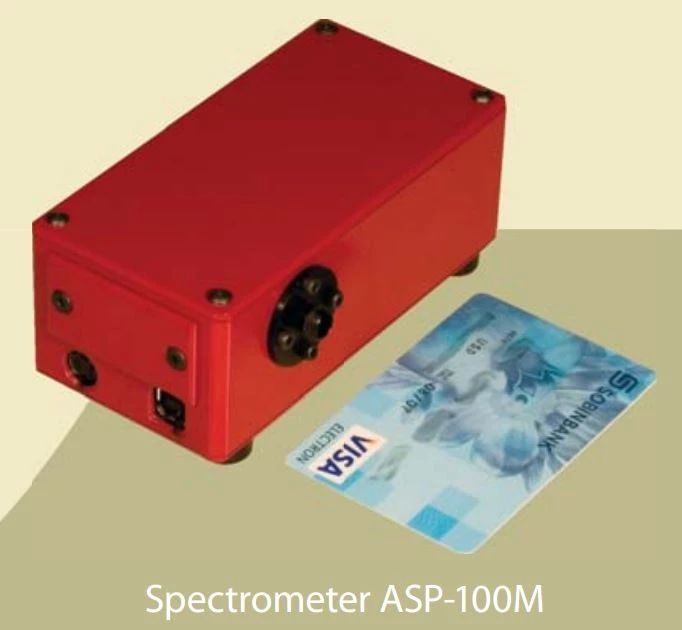

The ASP-100M miniature spectrometer is a compact and lightweight device, with dimensions of 122x60x50 mm and a weight of just 300 grams. This innovative spectrometer combines a broad spectral range and high resolution in a remarkably small package, making it ideal for a variety of space-constrained applications. Its straightforward design ensures seamless integration into OEM devices, enhancing versatility for diverse usage scenarios.
The ASP-100MF model features a specialized fiber input equipped with a spectral slit, precisely conditioned by the detector. This design allows for the measurement of both free-space and fiber signals without necessitating realignment, offering users flexibility and ease of use. However, it is important to note that utilizing fiber to measure the spectrum of a femtosecond laser is not recommended, as this can result in signal modulation and subsequent spectrum distortion.
The ASP-100M spectrometer is engineered with user convenience in mind, incorporating flexible settings selection and a USB interface for straightforward connectivity. The absence of an additional power supply requirement further simplifies its operation, making it a practical choice for users. Additionally, the spectrometer includes synchronization input/output capabilities and comes with software to facilitate diagnostics and enhance user experience.
Spectrometer ASP-100M 190-300nm
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 46 mm |
| Diffraction Grating: | 1800 lines/mm |
| Grating Blaze Wavelength: | 0 nm |
| Spectral Range: | 190 – 300 nm |
| Linear Dispersion (Avg): | 1.4 nm/mm |
| Spectral Resolution (Avg): | 0.05 nm |
Features
- Compact Design: The ASP-100M spectrometer features a miniature size with dimensions of 122x60x50 mm and a weight of only 300 grams, making it ideal for space-demanding applications and OEM integration.
- High Resolution: Achieve exceptional spectral resolution down to 0.05 nm, ensuring precise and accurate measurements.
- Broad Spectral Range: Covers a wide spectral range suitable for various applications, enhancing its versatility.
- USB Interface: Easily connect to a PC via a USB interface for seamless data transfer and device control.
- Fiber Input: The ASP-100MF model includes a special fiber input with a spectral slit, allowing for the measurement of both free-space and fiber signals without the need for realignment.
- No Additional Power Supply: Operates without requiring an external power supply, simplifying setup and usage.
- Synchronization Input/Output: Features synchronization capabilities for enhanced integration into complex systems.
- Software Included: Comes with user-friendly software for easy operation and data analysis.
Applications
- Diagnostics: The ASP-100M can be used for various diagnostic applications due to its high resolution and compact size.
- OEM Integration: Its miniature design makes it ideal for integration into other devices as an OEM component.
- Free-Space and Fiber Signal Measurement: Model ASP-100MF allows measurement of both free-space and fiber signals without realignment.
- Flexible Settings: The device offers flexible settings selection to suit different application needs.
- USB Interface: The spectrometer connects easily to a PC via a USB interface, facilitating data transfer and control.
- No Additional Power Supply Required: The device operates without the need for an external power supply, making it more portable and convenient.
- Synchronization Input/Output: It includes synchronization input/output for integration with other systems and devices.
- Software Included: The spectrometer comes with software to assist in data collection and analysis.
Frequently Asked Questions
The Spectrometer ASP-100M has 122x60x50 mm dimensions and weighs 300 grams.
The Spectrometer ASP-100M allows to combine broad spectral range and high resolution.
Yes, the Spectrometer ASP-100M can be used for OEM integration in any devices.
Yes, the Spectrometer ASP-100MF features a special fiber input with a spectral slit.
No, it is not recommended to use fiber to measure spectrum of a femtosecond laser due to signal modulation and subsequent spectrum distortion.
