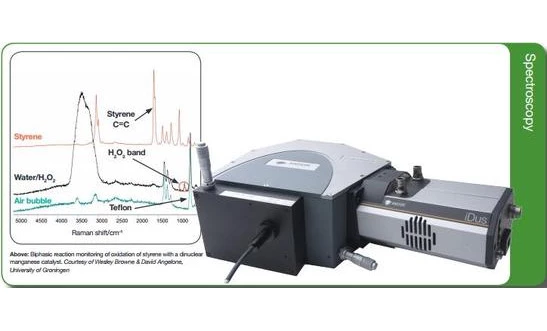

Shamrock 163 Spectrograph - 300 lpmm 1000nm Blaze
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The Shamrock 163 stands out as the most compact research-grade Czerny-Turner spectrograph available today. Designed with a 163 mm focal length and a high F/3.6 aperture, it is engineered to meet the demanding needs of general benchtop spectroscopy applications. This spectrograph offers a wide range of seamlessly interchangeable components, including gratings, slits, and light coupling accessories, allowing for unparalleled flexibility and customization in your research and analysis.
The Shamrock 163 features a robust and compact design that supports both horizontal and vertical mounting positions, making it highly portable and easy to integrate into various laboratory setups. Its imaging-configurable platform is optimized for multi-track spectroscopy, enabling simultaneous acquisition of multiple fiber signals with minimal crosstalk. The system's lens-based accessories further enhance performance, ensuring precise and reliable results.
At the heart of the Shamrock 163 is its ability to adapt to changing research demands. With a wide range of interchangeable gratings and a simple precision locking mechanism, upgrading or modifying the system is both seamless and efficient. The variety of fixed and adjustable slits, ranging from 10 µm to 3 mm, provides additional customization options to suit specific experimental requirements. The spectrograph also offers a large choice of light coupling interfaces, including fiber-optics and C-mount microscope couplers, to accommodate diverse experimental setups.
he Shamrock 163 is designed for precision and ease of use, featuring a calibrated micrometer drive for quick and simple wavelength selection. This ensures rapid adjustments and precise control over your spectral measurements. Whether you are conducting routine analyses or exploring new research frontiers, the Shamrock 163 offers the reliability and versatility needed to achieve high-quality results in a compact and user-friendly package.
Shamrock 163 Spectrograph - 300 lpmm 1000nm Blaze
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 163 mm |
| Diffraction Grating: | 300 lines/mm |
| Grating Blaze Wavelength: | 1000 nm |
| Spectral Range: | 200 – 2000 nm |
| Linear Dispersion (Avg): | 18.5 nm/mm |
| Spectral Resolution (Avg): | 1.11 nm |
Features
- Compact & Rugged Design: Offers horizontal and vertical mounting positions for enhanced portability and ease of integration.
- Imaging-Configurable Platform: Ideal for multi-track spectroscopy with lens-based accessories that optimize system performance and reduce cross-talk, allowing simultaneous acquisition of multi-leg fibre signals.
- Interchangeable Gratings: Features a wide range of gratings with a simple precision locking mechanism for seamless upgradability.
- Variety of Fixed Slits: Includes interchangeable laser-cut precision slits with widths ranging from 10 µm to 200 μm.
- Large Choice of Light Coupling Interfaces: Supports fibre-optics and C-mount microscope couplers for versatile connectivity.
- Calibrated Micrometer Drive: Facilitates simple and rapid wavelength adjustment for precise wavelength selection.
Applications
- General Benchtop Spectroscopy: Ideal for versatile laboratory spectral measurements and analysis.
- Multi-Track Spectroscopy: Enables simultaneous acquisition of multiple fiber signals with minimal crosstalk.
- Laser Characterization: Suitable for precise wavelength and spectral width analysis of laser outputs.
- Raman Spectroscopy: Facilitates high-resolution Raman shift measurements in chemical and materials research.
- OEM System Integration: Compact design ideal for integration into analytical instruments and industrial systems.
- Education & Research Laboratories: Provides a flexible, research-grade platform for teaching and advanced optical experiments.
Frequently Asked Questions
The Shamrock 163 is a compact research-grade Czerny-Turner spectograph that is ideal for general benchtop spectroscopy measurements.
The Shamrock 163 has a compact and rugged design, portability and ease of integration, an imaging-configurable platform for multi-track spectroscopy, a wide range of interchangeable gratings, a variety of fixed slits, a large choice of light coupling interfaces, and a calibrated micrometer drive for wavelength selection.
The Shamrock 163 has a resolution of 0.25 nm to 0.12 nm with Newton DU940 CCD, an aperture of F/3.6, a focal length of 163 mm, a single, interchangeable grating, fixed and adjustable slit width and height options, and a size of 198 x 216 x 96 mm.

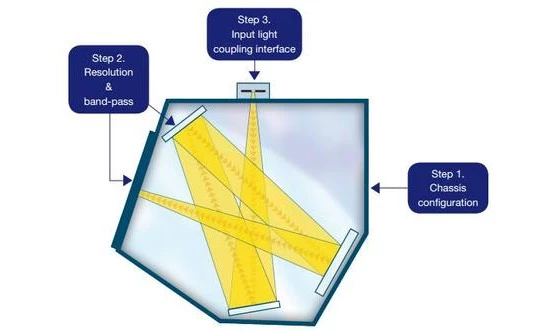

To customize the Shamrock 163, you can select the appropriate chassis configuration, gratings, detector, and input light coupling interface. You can also select the type of optics coating required.
The ordering information for the Shamrock 163 includes the base unit for spectrally optimized configuration and the base unit for spectrally optimized configuration with protected silver coated optics. The reflectivity graph shows the standard Al + MgF2 optics coatings reflection efficiency versus wavelengths.
