SeaWave™ IR Spectrometer Compact High-Speed 900–1700 nm NIR Analyzer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Spain
-
Sold by:
-
On FindLight:
since 2014
Description

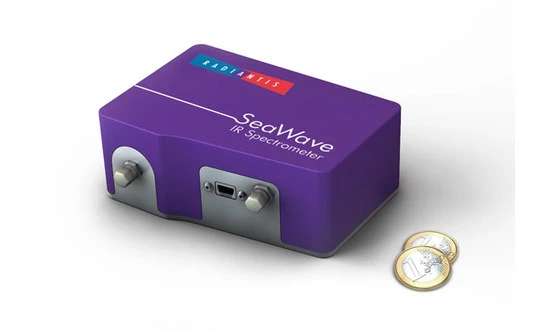

The SeaWaveTM IR Spectrometer from RadiantisTM is an innovative solution designed to deliver high performance in a compact form factor. With its wide spectral response range of 900 – 1700 nm, this spectrometer is engineered to meet the demands of various industrial and scientific applications. Its robust design is based on Hamamatsu uncooled InGaAs linear image sensors, providing a cost-effective, lightweight, and USB2-powered option that excels in both performance and portability.
One of the standout features of the SeaWaveTM is its dual optical coupling capability, featuring both SMA 905 optical fiber connectors and free-space optical coupling. This flexibility allows users to achieve optimal resolution, with the potential for a best-in-class 3 nm resolution across the entire bandwidth. Additionally, the spectrometer can be customized with different gratings to enhance resolution and focus on specific spectral ranges, making it adaptable for a variety of applications.
The SeaWaveTM is equipped with a 16-bit DAC for high-speed acquisition and connects to a PC via a USB 2.0 Hi-speed interface. This setup ensures rapid readout speeds of over 1000 spectra per second, with the option to enhance speed further for more demanding applications. The USB-powered design eliminates the need for an external power supply, enhancing its portability and making it suitable for on-the-go or field-based tasks.
Included with the SeaWaveTM is a user-friendly software package and drivers that simplify integration into OEM applications. The software architecture is designed for ease of use, robustness, and quick integration, allowing for acquisition initiation through the software interface with millisecond-level timing accuracy. For even more precise control, electronic triggering can achieve sub-microsecond level precision.
Overall, the SeaWaveTM IR Spectrometer is a versatile and high-performance tool ideal for a wide range of applications, providing users with the flexibility, speed, and accuracy needed for effective analysis and monitoring. Its compact and rugged design ensures that it can withstand the rigors of various environments while delivering reliable results.
SeaWave™ IR Spectrometer Compact High-Speed 900–1700 nm NIR Analyzer
Specifications |
|
|---|---|
| Monochromator Type: | Flat Field Grazing Incidence |
| Effective Focal Length: | 50 mm |
| Diffraction Grating: | 300 lines/mm |
| Grating Blaze Wavelength: | 1000 nm |
| Spectral Range: | 900 – 2500 nm |
| Linear Dispersion (Avg): | 62 nm/mm |
| Spectral Resolution (Avg): | 3 nm |
Features
- Compact and Rugged Design: Features a compact and durable design utilizing linear diode array technology, making it ideal for various industrial and scientific applications.
- Wide Spectral Response Range: Operates effectively within the 900 – 1700 nm range, suitable for a broad spectrum of analyses.
- High Resolution: Offers a high resolution of 1 – 12 nm, adjustable through specific slits and detectors to meet precise measurement needs.
- Fast Readout Speed: Capable of reading over 1000 spectra per second, ensuring rapid data collection and analysis.
- Customizable Configurations: Available in multiple configurations to accommodate customized spectral ranges and resolutions.
- Versatile Entrance Ports: Equipped with both fiber coupled and free-space entrance ports for flexible connectivity options.
- Software and Electronic Triggering: Can be triggered via user-friendly software or through an electronic trigger input, providing versatile operation modes.
- User-Friendly Software: Includes a robust control software package and programming platform for easy integration and operation.
- No Moving Parts: Designed with no moving parts, enhancing durability and reliability for OEM applications.
- USB-Powered Portability: Powered through a USB 2.0 connection, eliminating the need for an external power supply and enhancing portability.
Applications
- Pharmaceutical and Food Analysis: Enables rapid and precise quality assessment
- Petrochemical Process Monitoring: Suitable for real-time manufacturing process analysis
- Agricultural Product Quantification: Supports reliable agricultural assessment and control
- Medical Non-Invasive Assessments: Ideal for NIR-based diagnostic applications
- Photovoltaic Material Quality Control: Ensures optimal evaluation of solar materials
- Chemical Reaction Monitoring: Monitors reactions in research and industrial settings
- Laser Characterization: Provides accurate spectral analysis for laser systems
Frequently Asked Questions
SeaWave® IR Spectrometer has various applications such as Pharmaceutical and food industry analysers, Monitoring of petrochemical manufacturing processes, Agricultural product quantification, Medical non-invasive assessments, Photovoltaic material quality control, Chemical reaction monitoring, and Laser characterization.
SeaWave® IR Spectrometer is a top of the range IR spectrometer that has the smallest footprint in the market for its class, the highest data acquisition speed (>1000 spectra/second) and excellent resolution (3 nm) for a broad detection range in the IR (900 - 1700 nm).
The cost of SeaWave® IR Spectrometer is not mentioned in the product description. Please get in touch with the manufacturer for further information.
Yes, a demo unit can be provided for testing the SeaWave® IR Spectrometer. Please get in touch with the manufacturer for further information.
