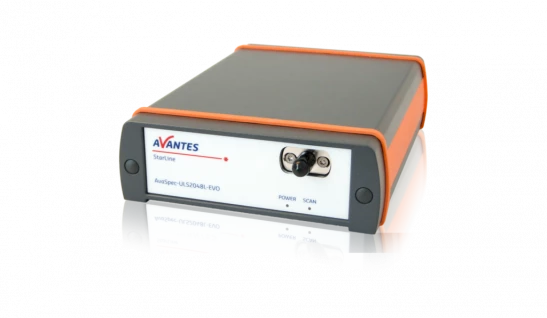

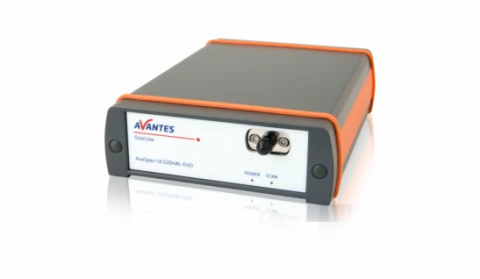

AvaSpec-ULS2048CL-EVO VIS 600 Spectrometer

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 75 mm
Diffraction Grating: 300 lines/mm
Grating Blaze Wavelength: 300 nm
Spectral Range: 200 – 1100 nm
Spectral Resolution (Avg): 1.2 nm
Document icon Download Data Sheet Download icon

Features


  • Advanced CMOS Technology: The AvaSpec-ULS4096CL-EVO utilizes cutting-edge CMOS technology, offering a modern alternative to traditional CCD detectors and ensuring longevity for the next decade.

  • High-Speed Communication: Equipped with USB 3.0, providing 10x faster data transfer than USB 2.0, and a Gigabit Ethernet port for seamless integration into company networks and long-distance communication.

  • Enhanced Processing Power: Features a fast microprocessor and 50x more memory capacity, allowing for extensive onboard spectrum storage and increased functionality.

  • Wide Wavelength Range: Covers a spectral range of 200-1100 nm, making it suitable for various high-resolution applications including Plasma and LIBS.

  • Customizable Options: Offers a detector collection lens for improved sensitivity and an order-sorting filter to minimize 2nd order effects. Available with various slit sizes, gratings, and fiber-optic connectors.

  • Comprehensive Software Package: Comes with AvaSoft-Basic software, a USB cable, and a detailed manual for easy setup and operation.

  • Flexible Configurations: Available as an OEM unit, Bench only, or Rackmount version to suit different application needs.

Applications


  • Plasma Analysis - Ideal for high-resolution applications such as plasma diagnostics due to its 4096 pixel CMOS detector.

  • Laser-Induced Breakdown Spectroscopy (LIBS) - Offers high-speed data acquisition and analysis for LIBS applications.

  • UV/VIS/NIR Spectroscopy - Covers a wide wavelength range from 200-1100 nm, making it suitable for various spectroscopic applications.

  • Environmental Monitoring - Utilizes advanced CMOS technology for accurate and reliable environmental analysis.

  • Industrial Process Control - Provides fast communication options and network integration for real-time process monitoring.

  • Research and Development - Equipped with advanced features such as high-speed USB 3.0 and Gigabit Ethernet for complex R&D applications.

  • OEM Integration - Available as a bench-only or rackmount version for easy integration into custom systems.

  • Multi-Channel Spectroscopy - Benefits from multi-channel capabilities for comprehensive spectral analysis.
