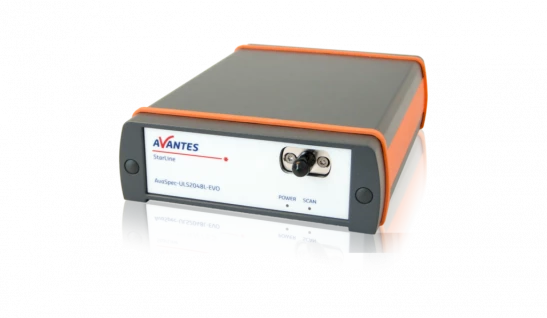

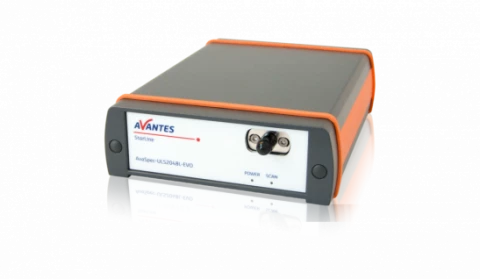

AvaSpec-ULS2048CL-EVO UV/VIS 250-850 Spectrometer

Specifications

Monochromator Type: Czerny-Turner
Effective Focal Length: 75 mm
Diffraction Grating: 1200 lines/mm
Grating Blaze Wavelength: 250 nm
Spectral Range: 200 – 450 nm
Spectral Resolution (Avg): 0.3 nm
Document icon Download Data Sheet Download icon

Features


  • Advanced CMOS Technology: The AvaSpec-ULS4096CL-EVO utilizes CMOS technology, offering a modern alternative to conventional CCD detectors, ensuring longevity and advanced performance.

  • High-Speed Communication: Equipped with USB 3.0 for 10x faster data transfer compared to USB 2.0 and a Gigabit Ethernet port for seamless integration into company networks and long-distance communication.

  • Enhanced Memory and Processing: Features a fast microprocessor and 50x more memory, allowing for extensive onboard spectra storage and increased functionality.

  • Versatile Options: Available with a detector collection lens for enhanced sensitivity in the 200-1100 nm range and an order-sorting filter to minimize 2nd order effects.

  • Customizable Configurations: Offers a range of slit sizes, gratings, and fiber-optic entrance connectors to suit various applications.

  • Comprehensive Package: Includes AvaSoft-Basic software, USB cable, and an extensive manual for easy setup and operation.

  • OEM and Mounting Options: Available as an OEM unit, Bench only, or Rackmount version to fit specific needs.

  • High Resolution: With 4096 pixels, the spectrometer is ideal for high-resolution applications such as Plasma and LIBS.

  • Wide Wavelength Range: Covers a wavelength range of 200-1100 nm, suitable for various spectral analyses.

  • Precision and Sensitivity: Offers a resolution of 0.05 – 20 nm depending on configuration, with a sensitivity of 218,000 counts/µW per ms integration time.

  • Robust Interface: Includes a HD-26 connector with multiple analog and digital I/O, along with trigger, sync, and strobe functionalities.

  • Compact and Lightweight: Dimensions of 177 x 127 x 44.5 mm and a weight of 1155 grams, making it portable and easy to integrate.

Applications


  • Plasma Analysis: Ideal for high-resolution applications in plasma spectroscopy.

  • Laser-Induced Breakdown Spectroscopy (LIBS): Tailored for LIBS applications due to its high resolution and sensitivity.

  • UV/VIS/NIR Spectroscopy: Covers a wide wavelength range of 200-1100 nm, making it suitable for various spectroscopic analyses.

  • Network Integration: Gigabit Ethernet port for easy integration into company networks and long-distance communication.

  • Multi-Channel Benefits: Offers multi-channel capabilities for more complex spectroscopic analyses.

  • High-Speed Data Transfer: USB 3.0 and Gigabit Ethernet provide fast communication speeds.

  • Advanced CMOS Technology: Utilizes CMOS technology for improved performance over traditional CCD detectors.
