PCP-35 High-Frequency Capacitor Charging Module 300-4000V
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Description

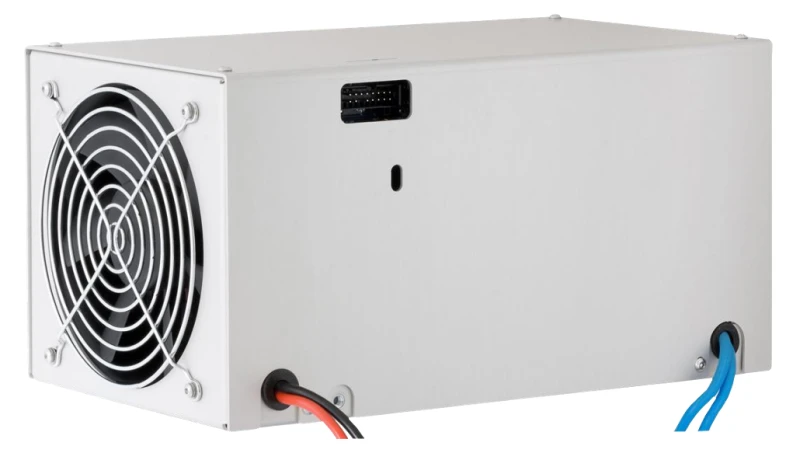

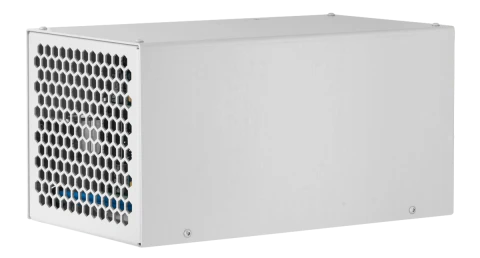

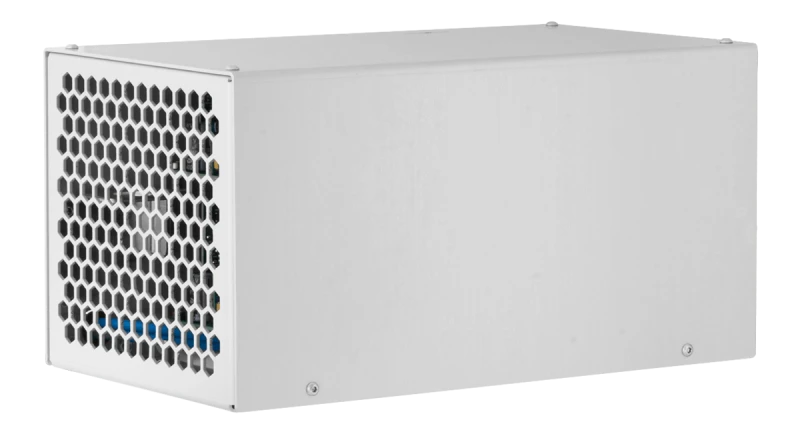

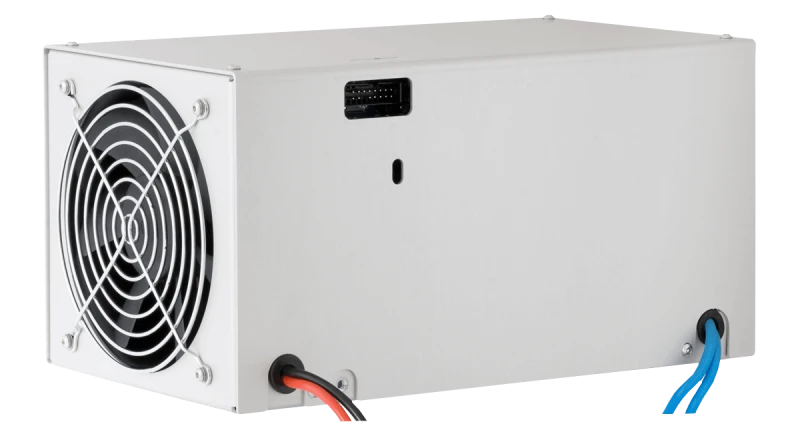

PCP-35 Capacitor Charging Module
The PCP-35 capacitor charging module is an advanced high-frequency switch-mode converter designed to efficiently transform AC input into a regulated high voltage DC output, specifically for the purpose of charging capacitors. This module is crafted to deliver exceptional performance, with output power exceeding 3500W in configurations with partial discharge (PD) and over 3000J/s in complete discharge (CD) setups. The maximum output voltage (VMAX) is customizable, allowing users to define it within a range of 300 to 4000 volts, ensuring versatility to meet specific application requirements.
This industrial-grade module is built for robust applications and is not intended for use in medical or aesthetic systems. Its design is focused on providing reliable and consistent power delivery in demanding environments. The PCP-35 is engineered with a focus on durability and efficiency, making it a suitable choice for industrial applications that require high power and precision in capacitor charging.
The PCP-35 capacitor charging module is housed in a compact form factor, approximately 260x153x136mm in size, and weighs around 2.8 kg. It features built-in cooling through forced air, ensuring optimal performance even under continuous operation. The module's operational temperature ranges from +10 to +40 °C, with storage temperature capabilities from -20 to +60 °C, and it can function in environments with humidity levels below 90%, non-condensing. This makes the PCP-35 a reliable solution for various industrial settings, providing stability and efficiency with a power factor correction coefficient of approximately 0.90.
PCP-35 High-Frequency Capacitor Charging Module 300-4000V
Specifications |
|
|---|---|
| Voltage (VAC): | 200 V |
| Max Output Voltage: | 300 – 4000 V |
| Max Output Power: | 3500 W |
| Stability: | 0.5 % |
| Weight: | Approx. 2.8 kg |
| Dimensions: | Approx. 260x153x136mm |
| Humidity: | <90%, non-condensing |
| Storage Temperature: | -20 … +60 °C |
| Operation Temperature: | +10… +40 °C |
| PFC Coefficient: | ~ 0.90 |
| Efficiency: | More than 85% |
| Pulse To Pulse: | 0.5% of VMAX |
| Stability: | 0.5% of VMAX |
| Maximum Output Power (CD): | >3000J/s |
| Maximum Output Power (PD): | >3500W |
| Maximum Output Voltage (VMAX): | 300-4000V |
| Input Voltage: | 200-240 VAC, 50/60 Hz |
Features
- High Output Power: Delivers over 3500W for partial discharge modifications and over 3000J/s for complete discharge modifications, ensuring robust performance.
- Customizable Voltage Range: Maximum output voltage (VMAX) is user-selectable within a wide range of 300-4000V, offering flexibility for various applications.
- Industrial Grade Design: Built for industrial applications, not recommended for use in medical or aesthetic systems.
- Efficient Operation: Boasts an efficiency of more than 85% with a Power Factor Correction (PFC) coefficient of approximately 0.90.
- Comprehensive Protections: Equipped with protections against open-circuit, short-circuit, over-temperature, over-voltage, and charging timeout for safe and reliable operation.
- Forced Air Cooling: Integrated built-in fan ensures effective cooling and optimal performance.
- Environmental Resilience: Operates in temperatures from +10 to +40 °C and can be stored in temperatures ranging from -20 to +60 °C with humidity levels below 90%, non-condensing.
- Compact and Lightweight: Dimensions of approximately 260x153x136mm and a weight of about 2.8 kg make it easy to integrate into various systems.
- Versatile Ordering Options: Available in different configurations based on VMAX voltage, discharge type (CD or PD), and output polarity (positive, negative, floating, or bipolar).
Applications
- Industrial Power Supplies: The PCP-35 capacitor charging module is ideal for industrial applications requiring high-frequency switch-mode conversion to transform AC input into regulated high voltage DC output for capacitor charging.
- High Voltage Applications: Suitable for applications needing a maximum output voltage in the 300-4000V range, with user-defined settings.
- Capacitor Charging: Designed specifically for charging capacitors with output power over 3500W for partial discharge (PD) modifications and over 3000J/s for complete discharge (CD) modifications.
- Non-Medical Use: This module is not recommended for use in medical or aesthetic systems, focusing instead on industrial-grade applications.
- Customizable Output: Offers flexibility with user-selectable voltage and discharge modifications, including options for output polarity (positive, negative, floating, or bipolar).
- Protection Features: Equipped with protections from open-circuit, short-circuit, over-temperature, and over-voltage, including a shutdown feature on charging timeout.
- Efficient Energy Use: With an efficiency of more than 85% and a PFC coefficient of approximately 0.90, this module is designed for effective energy usage.
- Operational Temperature Range: Operates effectively in temperatures ranging from +10 to +40 °C, making it suitable for various environmental conditions.
- Compact Design: With approximate dimensions of 260x153x136mm and a weight of 2.8 kg, the module is compact and easy to integrate into existing systems.
- Forced Air Cooling: Built-in fan for forced air cooling ensures reliable operation under demanding conditions.
Frequently Asked Questions
The PCP-35 is a high-frequency switch-mode converter that transforms AC input into a regulated high voltage DC output to charge capacitors.
The maximum output voltage (VMAX) is customer-defined and can range from 300 to 4000V.
The output power is over 3500W for modifications with partial discharge (PD) and over 3000J/s for modifications with complete discharge (CD).
The PCP-35 includes protections from open-circuit, short-circuit, over-temperature, and over-voltage, and it has a shutdown feature for charging timeout.
The PCP-35 has an efficiency of more than 85%.
The operating temperature range is +10 to +40 °C, and it can be stored at temperatures from -20 to +60 °C with humidity less than 90%, non-condensing.
To order, use the format PCP-35-XXXX-YY-Z, where XXXX is the VMAX voltage (300-4000V), YY is either CD (complete discharge) or PD (partial discharge), and Z indicates output polarity (P for positive, N for negative, F for floating, B for bipolar). If YY or Z is not specified, PD and P are supplied by default.
