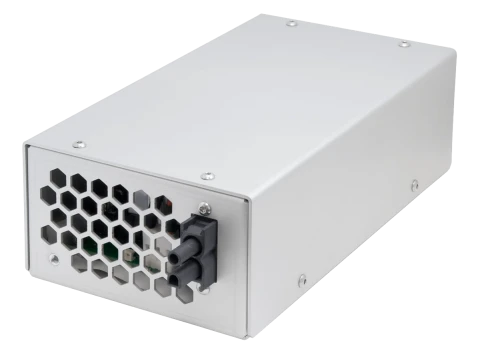

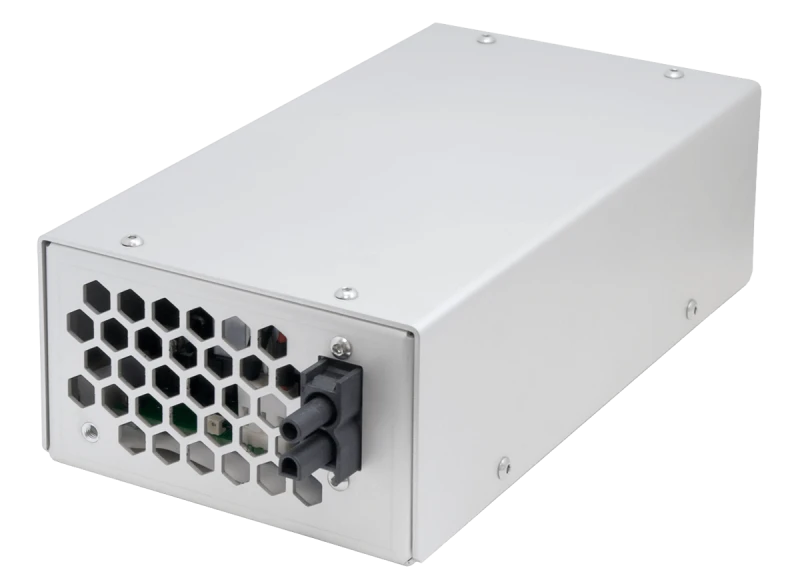

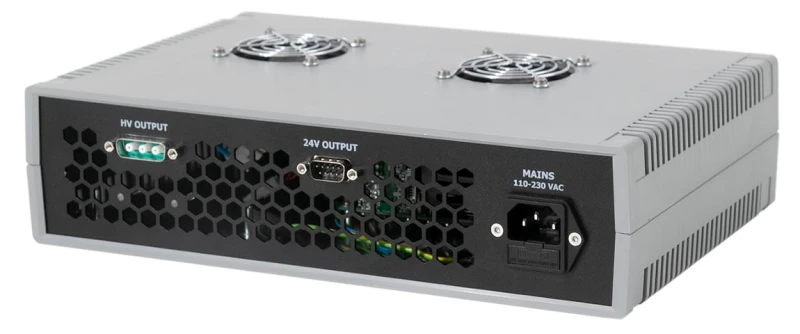

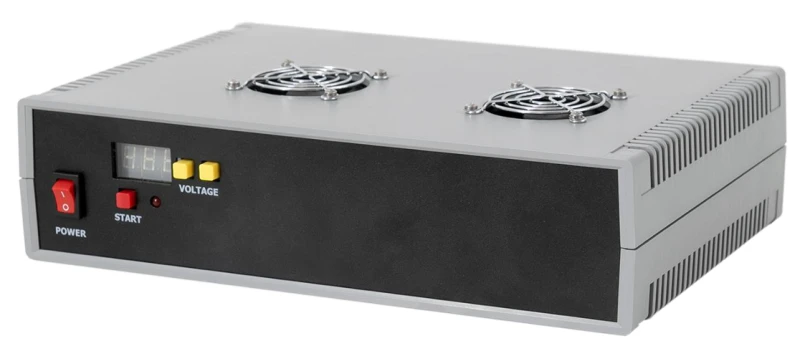

PBZ-300 High-Frequency Capacitor Charger, 24V DC Input, 400W Output
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Description
The PBZ-300 capacitor charging modules are a sophisticated solution for transforming low voltage DC input into a regulated high voltage DC output, specifically designed for charging capacitors. These high-frequency switch-mode converters are engineered to deliver reliable performance, making them an essential component for a variety of applications that require precise voltage control and efficient energy transfer.
With an input voltage of 24V DC, the PBZ-300 modules offer flexibility in output voltage levels. Customers can choose a maximum output voltage from a range of 300V to 4000V at the time of order, ensuring the product meets specific application needs. For those requiring even higher output voltages, custom solutions are available upon request, showcasing the adaptability of these modules to various industrial requirements.
Delivering up to 400W of output power, the PBZ-300 modules are optimized for partial discharge applications by default. However, modifications for complete discharge applications can be arranged, highlighting the product's customization capabilities. The modules are equipped with analog interfaces as standard, with digital interfaces available upon request, providing users with the flexibility to integrate these chargers into their existing systems seamlessly.
Despite their powerful performance, the PBZ-300 modules maintain a compact form factor, weighing less than 1.0 kg. This lightweight design, coupled with high efficiency of over 85%, ensures that the modules are not only easy to handle and install but also operate with minimal energy loss. The robust construction is designed to withstand a range of environmental conditions, supporting operation temperatures from +10 to +40 °C and storage temperatures from -20 to +60 °C. In summary, the PBZ-300 capacitor chargers are a versatile and efficient choice for professionals seeking reliable high voltage DC outputs. With customizable options and a focus on performance, these modules provide a tailored solution for diverse charging applications.
PBZ-300 High-Frequency Capacitor Charger, 24V DC Input, 400W Output
Specifications |
|
|---|---|
| Max Output Voltage: | 300 – 4000 V |
| Max Output Power: | 400 W |
| Stability: | 0.5 % |
| Input Voltage (DC): | 24 V |
| Input Current: | <20 A |
| Maximum Output Voltage (VMAX): | 300V to 4000V |
| Nominal Output Power (complete Discharge): | 300 J/s |
| Nominal Output Power (partial Discharge): | 400 W |
| Voltage Stability: | <0.5% |
| Voltage Ripple/hysteresis: | <0.5% |
| Efficiency: | More than 85% |
| Operation Temperature: | +10...+40 °C |
| Storage Temperature: | -20...+60 °C |
| Humidity: | <90%, non-condensing |
| Weight: | <1.0 kg |
Features
- High-Frequency Switch-Mode Converters: The PBZ-300 capacitor charging modules transform low voltage DC input into a regulated high voltage DC output, ideal for charging capacitors.
- Wide Output Voltage Range: Choose a maximum output voltage level from 300V to 4000V at the time of order. Higher output voltages are available upon request.
- Powerful Output: Delivers up to 400W of power, optimized for partial discharge applications by default. Complete discharge modifications are available on request.
- Customizable Interfaces: Analogue interfaces are standard, with digital interfaces available on request.
- Versatile Output Polarity: Positive polarity is standard, with options for negative polarity, floating, and bipolar outputs available upon request.
- Exceptional Voltage Stability: Ensures voltage stability of less than 0.5% with minimal voltage ripple/hysteresis.
- High Efficiency: Achieves more than 85% efficiency, ensuring reliable performance.
- Robust Protections: Equipped with overheating protection to ensure safe operation.
- Environmental Resilience: Operates effectively in temperatures from +10 to +40 °C, with a storage temperature range of -20 to +60 °C and humidity tolerance of less than 90% non-condensing.
- Lightweight and Compact: Weighs less than 1.0 kg, making it easy to handle and integrate into systems.
Applications
- High Voltage Capacitor Charging: The PBZ-300 capacitor chargers are designed to efficiently charge capacitors with a high-frequency switch-mode converter, transforming low voltage DC input to a regulated high voltage DC output.
- Optimized for Partial Discharge Applications: The modules are optimized by default for partial discharge applications, with complete discharge modifications available on request.
- Analogue and Digital Interfaces: All interfaces are analogue by default, but digital interfaces can be requested for more advanced integration.
Frequently Asked Questions
The input voltage requirement for the PBZ-300 capacitor charger is 24V DC.
The maximum output voltage for the PBZ-300 can be chosen from 300V to 4000V at the moment of order. Higher output voltages are available upon request.
For partial discharge modifications, the nominal output power is 400 W. For complete discharge modifications, the nominal output power is 300 J/s.
The PBZ-300 offers protections from overheating and from overvoltage.
The efficiency of the PBZ-300 capacitor charger is more than 85%.
The PBZ-300 operates at temperatures between +10...+40 °C and can be stored at temperatures between -20...+60 °C. It can operate in environments with humidity levels of less than 90%, non-condensing.
When ordering the PBZ-300, you can specify the output polarity by using 'P' for positive, 'N' for negative, 'F' for floating output, or 'B' for bipolar output. By default, modifications with positive output are supplied.
