Description
The PCA-40 capacitor charging module is a sophisticated high-frequency switch-mode converter designed to efficiently transform AC input into regulated high voltage DC output, specifically for charging capacitors. This module is engineered to deliver a maximal output power of 4000W for partial discharge applications and 3500J/s for complete discharge scenarios. It offers a standard output voltage range from 300V to 1500V, with custom modifications available to extend the output voltage up to 4000V upon request.
By default, the PCA-40 is configured for partial discharge, but it can be modified for complete discharge as needed. Notably, this module is classified as "medical grade," making it suitable for medical applications without requiring any additional modifications. This ensures that the PCA-40 meets stringent safety and performance standards necessary for medical environments.

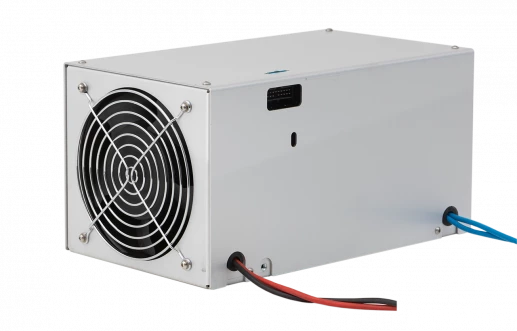

The PCA-40 module is equipped with an embedded fan for cooling, eliminating the need for any external cooling solutions. This design feature ensures that the module operates efficiently and maintains optimal performance without additional cooling infrastructure.
The module features a straightforward interface with clearly designated connectors and pins. The input is facilitated through two blue wires for 230VAC 50/60Hz input. The high voltage output is managed via a red wire for positive HV output and a black wire for negative HV output. Grounding is achieved through an M4 thread, which must be connected before the module is connected to the mains. The HV output negative and interface return are internally connected to the chassis ground, with alternative grounding policies available upon request.
The interface is managed through a MOLEX 0901301120 connector, offering various pins for different functionalities, including temperature testing, voltage programming, inhibit control, and status indicators. This comprehensive connectivity ensures that the PCA-40 can be seamlessly integrated into a variety of systems, providing reliable and efficient capacitor charging capabilities.

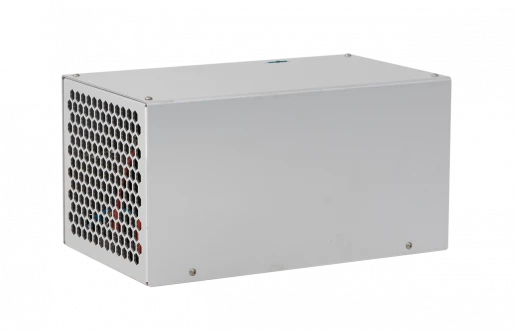

Capacitor-Charging Power Supply PCA-40
Specifications |
|
|---|---|
| Voltage (VAC): | 230 V |
| Max Output Voltage: | 300 – 1500 V |
| Max Output Power: | 4000 W |
| Stability: | 0.5 % |
Features
- High-Frequency Switch-Mode Converter: The PCA-40 capacitor charging module efficiently transforms AC input to regulated high voltage DC output for capacitor charging.
- Powerful Output: Offers a maximal output power of 4000W for partial discharge and 3500J/s for complete discharge, with standard output voltage ranging from 300V to 1500V. Custom modifications up to 4000V are available upon request.
- Medical Grade: Designed for medical applications without requiring further modifications, ensuring safety and compliance.
- Integrated Cooling System: Equipped with an embedded fan, eliminating the need for external cooling solutions.
- Comprehensive Interface: Features a MOLEX 0901301120 interface with multiple pins for various functionalities, including temperature monitoring, voltage programming, and status indicators.
- Grounding and Safety: Includes a dedicated M4 thread for grounding, ensuring safety and stability. The HV OUTPUT negative and INTERFACE return are internally connected to the chassis ground.
- Customizable Grounding Policies: Offers flexibility with grounding policies available upon request to meet specific application needs.
- Versatile Connectors: Includes connectors for 230VAC input, high voltage output, and various interface signals for enhanced functionality and control.
Applications
- Medical Applications: The PCA-40 capacitor charging module is "medical grade" and can be used for medical applications without further modifications.
- Partial Discharge Applications: The module is standardly supplied for partial discharge applications, with a maximal output power of 4000W.
- Complete Discharge Applications: Modifications for complete discharge are available on request, with a maximal output power of 3500J/s.
- Custom Voltage Applications: While the standard output voltage range is from 300V to 1500V, custom modifications with output voltage up to 4000V are available on request.
- Cooling Applications: The module is equipped with an embedded fan, eliminating the need for external cooling solutions.
- High Voltage Applications: The module converts AC input to regulated high voltage DC output, suitable for charging capacitors in various high voltage applications.
Frequently Asked Questions
The maximum output power is 4000W in modifications for partial discharge and 3500J/s in modifications for complete discharge.
The standard modifications cover an output voltage range from 300V to 1500V.
Yes, custom modifications with output voltage up to 4000V are available on request.
Yes, the module is "medical grade" and can be used for medical applications with no further modifications.
The module is cooled with an embedded fan and does not require external cooling.
