PBZ-500 Capacitor Chargers

The PBZ-500 capacitor charging modules are advanced high-frequency switch-mode converters designed to efficiently transform low voltage DC input into a regulated high voltage DC output. These modules are specifically engineered to charge capacitors with precision and reliability, making them an essential component in various high-performance electrical systems. It was developed as a power supply for industrial and laboratory applications for the use in pumping systems of flashlamp-pumped solid-state laser devices and other capacitor charging applications. Compact and lightweight, it is suitable also for portable applications. Since the base modification does not feed from mains, it does not need individual certificates of compliance to medical standards, in case you want to use it in medical system, but it is possible to certify it as a part of your system.

With an input voltage of 48V DC, the PBZ-500 offers a versatile range of maximum output voltage levels, selectable between 300V and 4000V at the time of order. For applications requiring even higher voltages, custom configurations are available upon request. The PBZ-500 is capable of delivering up to 700W of output power, optimized by default for partial discharge applications, with complete discharge modifications available to suit specific needs.

The PBZ-500 is designed with flexibility in mind, providing analogue interfaces as a standard feature, while digital interfaces can be requested to meet more complex integration requirements. This adaptability ensures that the PBZ-500 can be seamlessly integrated into a wide range of systems, providing consistent performance across different operational environments.

The PBZ-500's robust construction and efficient power conversion capabilities are complemented by its lightweight design, weighing less than 1.0 kg. This makes it an ideal choice for applications where space and weight are critical considerations. Designed to operate within a temperature range of +10 to +40 °C, the PBZ-500 is built to perform reliably in diverse environmental conditions.

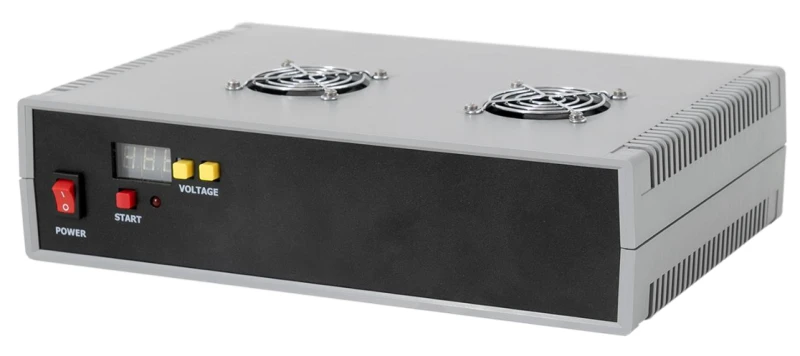

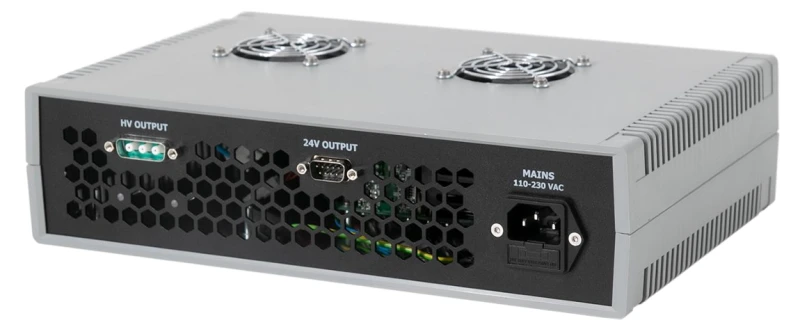

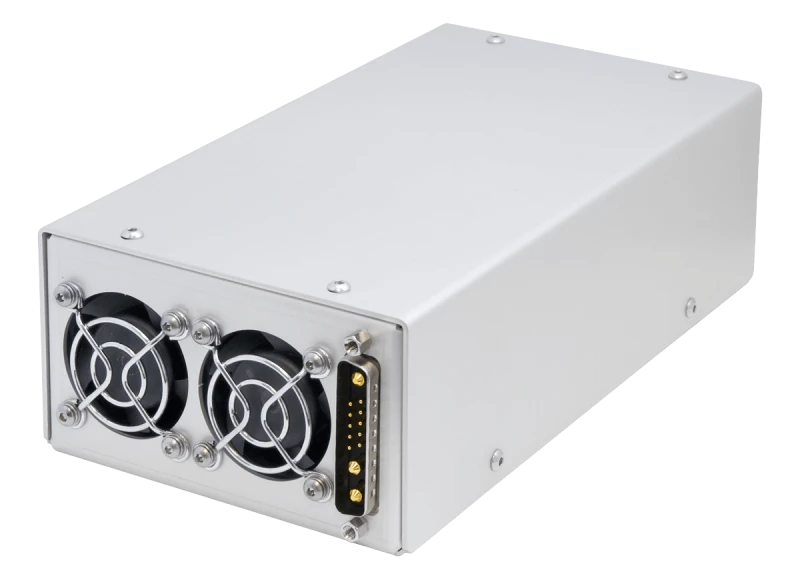

PBZ-500 Capacitor Charger, 48V DC, 700W Output

Specifications

Voltage (VAC): Not Specified
Max Output Voltage: 300 – 4000 V
Max Output Power: 700 W
Stability: 0.5 %
Input Voltage (DC): 48 V
Input Current: <18 A
Nominal Output Power (complete Discharge): 500 J/s
Nominal Output Power (partial Discharge): 700 W
Voltage Ripple/hysteresis: <0.5%
Efficiency: More than 85%
Weight: <1.0 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High-Frequency Switch-Mode Converters: The PBZ-500 capacitor charging modules are designed to efficiently transform low voltage DC input to a regulated high voltage DC output for capacitor charging.
  • Customizable Output Voltage: Choose maximum output voltage levels from 300V to 4000V at the time of order. Higher output voltages are available upon request.
  • High Output Power: Delivers up to 700W of power, optimized for partial discharge applications by default. Complete discharge modifications are available on request.
  • Flexible Interfaces: Comes with analogue interfaces by default, with digital interfaces available upon request.
  • Selectable Output Polarity: Positive output by default, with options for negative polarity, floating, and bipolar outputs upon request.
  • Compact and Lightweight: Weighs less than 1.0 kg, making it easy to integrate into various systems.
  • Robust Protection Features: Includes protection from overheating to ensure reliable operation.
  • High Efficiency and Stability: Offers more than 85% efficiency with voltage stability and ripple/hysteresis under 0.5%.

Applications

  • High Voltage Capacitor Charging: The PBZ-500 capacitor chargers are designed to efficiently charge capacitors with a high-frequency switch-mode converter, transforming low voltage DC input to a regulated high voltage DC output.
  • For industrial and laboratory applications: for using in pumping systems of flashlamp-pumped solid-state laser devices and other capacitor charging applications.
  • For portable applications: Compact and lightweight module is great for applications requiring mobility.

Frequently Asked Questions

What is the input voltage required for the PBZ-500 capacitor charger?
The input voltage required for the PBZ-500 capacitor charger is 48V DC.
What are the available maximum output voltage levels for the PBZ-500?
The maximum output voltage levels available for the PBZ-500 range from 300V to 4000V, and are user-selectable at the moment of order.
What is the nominal output power for partial discharge modifications?
The nominal output power for partial discharge modifications is 700W.
Can the PBZ-500 capacitor charger be customized for complete discharge applications?
Yes, complete discharge modifications are available on request for the PBZ-500 capacitor charger.
What are the operating temperature limits for the PBZ-500?
The operating temperature range for the PBZ-500 is +10 to +40 °C.
What types of output polarity are available for the PBZ-500?
The PBZ-500 offers positive output polarity by default, with options for negative, floating, and bipolar outputs available on request.
What is the efficiency of the PBZ-500 capacitor charger?
The efficiency of the PBZ-500 capacitor charger is more than 85%.
