How does a capacitor charger work from an electrical and control perspective?

Most capacitor chargers rectify the AC input, use a high‑frequency switching converter (often flyback, forward, or resonant topologies), and step up the voltage via a high‑voltage transformer, followed by rectification and output filtering. A feedback loop monitors capacitor voltage via a sense line and modulates duty cycle or switching frequency to control charge current and terminate charging at a precise setpoint, often with additional circuitry for soft‑start, current limiting, and bleed‑down/discharge.

What are the main types of capacitor chargers and where are they typically used?

Common variants include high‑voltage pulse capacitor chargers for lasers and pulsed power, flashlamp/arc lamp chargers with tailored charge profiles, and Marx‑generator or modulator chargers for particle accelerators and radar systems. There are also compact PCB‑mount chargers for portable or embedded systems and rack‑mount units for laboratory or industrial environments, differing in voltage range, peak current capability, repetition rate, and interface options (analog control, digital bus, triggers).

Which electrical specifications are most critical when selecting a capacitor charger?

Key parameters include maximum output voltage, peak and average charge current, energy per pulse (½CV²), repetition rate, and allowable ripple and overshoot at the capacitor terminals. You should also check input voltage range, efficiency, output polarity, regulation accuracy, and protection features such as over‑voltage, over‑current, short‑circuit tolerance, and controlled discharge paths.

How should I match a capacitor charger to my specific capacitive load and application duty cycle?

Start from your capacitor bank value, target voltage, and required repetition rate to determine energy per shot and average power, then verify the charger’s rated output power and peak charge current can support the desired charge time with margin. For high‑duty or continuous pulsed operation, check thermal limits, derating curves, and maximum charge‑discharge cycling specs, and ensure the charger’s control interface (e.g., external trigger, analog program input, digital control) aligns with your system timing and safety interlocks.

What factors influence price, lead time, and customization options for capacitor chargers?

Pricing is mainly driven by output voltage and power rating, insulation and safety requirements, control/interface complexity, and whether you need ruggedization or special certifications (e.g., CE, UL, medical standards). Standard models in common voltage and power ranges are often available on shorter lead times, while custom units with unusual voltages, form factors, special connectors, EMI performance, or bespoke control logic can require additional NRE (non‑recurring engineering) and extended manufacturing lead times.

How can I find, compare, and request quotes for capacitor chargers on FindLight without creating an account?

On FindLight, navigate to Power Supplies and Chargers → Chargers → Capacitor Charger, then use filters such as output voltage, power, package type, and manufacturer to narrow down the listings and compare key specs in the results table and product detail pages. From any product page you can use the built‑in contact or “Request Quote” form to send your requirements and questions directly to the supplier; this can be done without registering, though providing a work email and application details will help vendors respond with accurate pricing and lead‑time information.

Filter Products

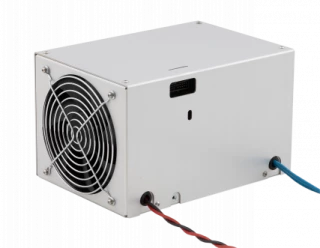

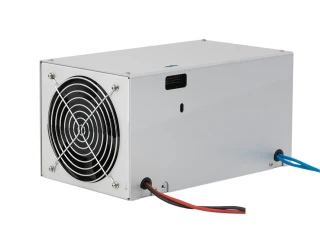

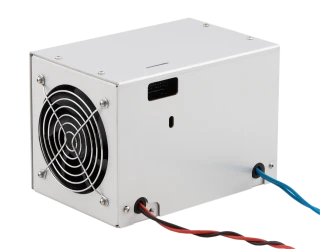

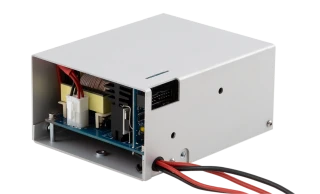

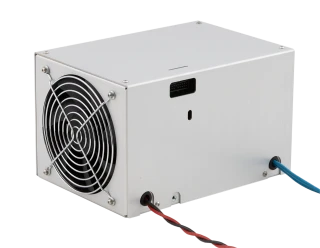

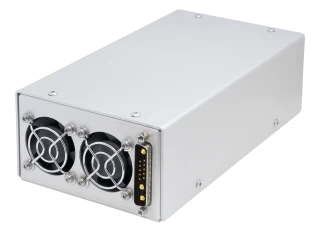

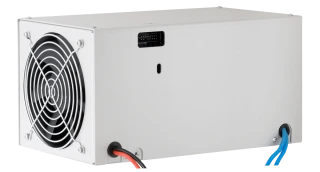

Capacitor Charger Modules for Pulsed Systems

Q: What is a capacitor charger and how does it differ from a conventional DC power supply?

A capacitor charger is a pulsed or high-voltage power supply optimized to charge capacitive loads to a defined voltage, then often remain idle until the next charge cycle. Unlike conventional DC supplies designed for relatively constant loads, capacitor chargers must handle high inrush currents, rapidly ramp voltage, and safely manage stored energy in downstream capacitors used in pulsed lasers, flashlamps, pulsed magnets, or medical equipment.
