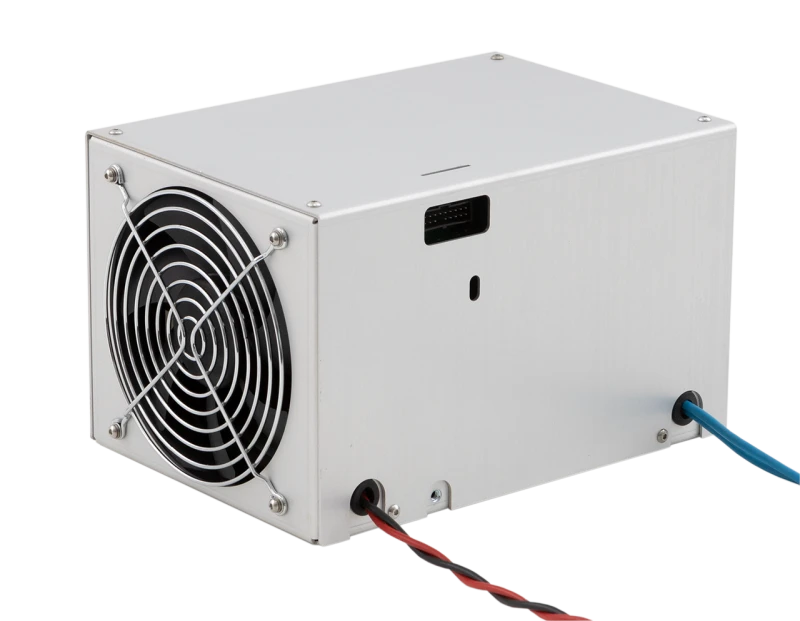

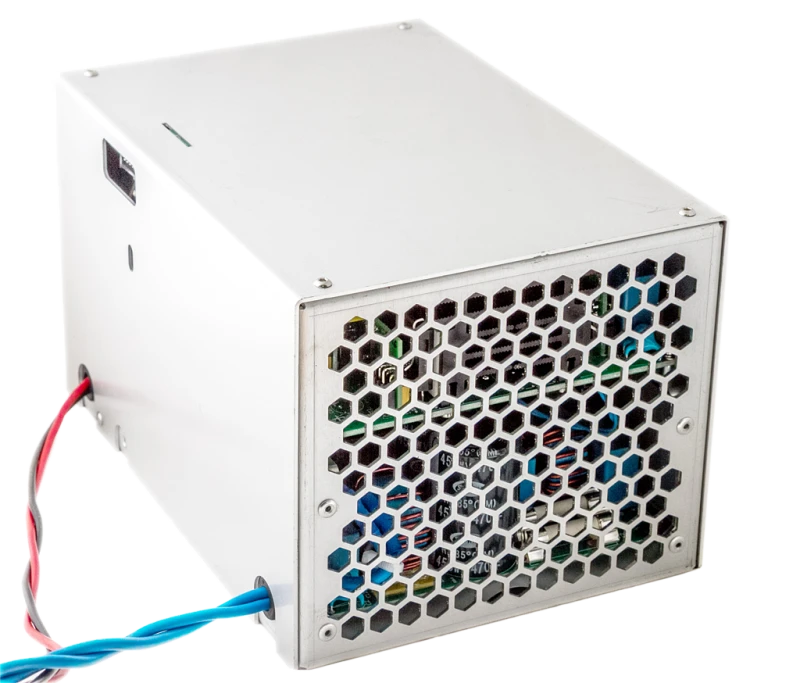

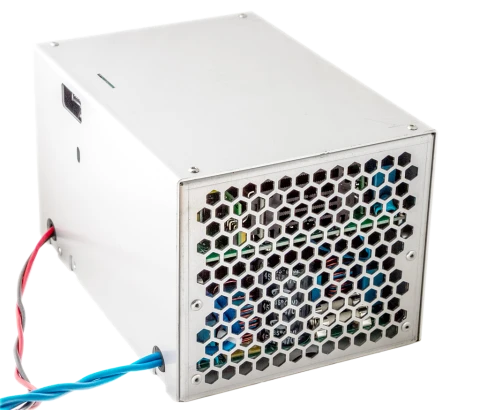

PCA-20/25 Capacitor Charging Modules, 2000W/2500W, Medical Grade
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Poland
-
Sold by:
-
On FindLight:
since 2020
Description
The PCA-20 and PCA-25 capacitor charging modules are expertly engineered high-frequency switch-mode converters designed to transform AC input into a precisely regulated high voltage DC output, specifically for charging capacitors. These modules are distinguished by their robust power capabilities, with the PCA-20 offering a maximum output power of 2000W and the PCA-25 providing an impressive 2500W. Customers can select a maximum output voltage (VMAX) ranging from 300V to 2000V at the time of order, ensuring flexibility to meet various application requirements.
These modules come optimized by default for partial discharge applications, which is ideal for many industrial and medical uses. However, complete discharge modifications can be requested, allowing for broader application versatility. An important feature of the PCA-20 and PCA-25 is their compliance with medical grade standards, specifically IEC 60601-1 and IEC 60601-1-2, making them readily integrable into medical systems without the need for additional modifications.
The PCA-20 and PCA-25 are designed with user safety and operational efficiency in mind. They include built-in protections against open-circuit, short-circuit, overheating, and overvoltage scenarios. The modules maintain a high efficiency of over 85% and feature a power factor correction coefficient of 0.98, ensuring effective energy use. Additionally, the modules are equipped with a forced air cooling system, supported by a built-in fan, to maintain optimal operating temperatures and prolong the lifespan of the device.
In terms of environmental resilience, these modules operate efficiently in temperatures ranging from +10°C to +40°C and can be stored safely between -20°C and +60°C. They are designed to function effectively in humid conditions, with a tolerance of up to 90% non-condensing humidity. With dimensions of approximately 216x153x132mm and a weight of around 2.9kg, these modules are compact yet powerful solutions for capacitor charging needs.
We also offer:
- More powerful 4 kW PCA-40
- Less powerful: 1 kW PCA-10
PCA-20/25 Capacitor Charging Modules, 2000W/2500W, Medical Grade
Specifications |
|
|---|---|
| Voltage (VAC): | 240 V |
| Max Output Voltage: | 300 – 2000 V |
| Max Output Power: | 2.5 W |
| Stability: | 0.5 % |
| Voltage Ripple/hysteresis: | <0.5% |
| Weight: | 2.9kg |
| Dimensions (LxWxH): | 216x153x132mm |
| Humidity: | <90%, non-condensing |
| Storage Temperature: | -20 … +60°C |
| Operation Temperature: | +10… +40°C |
| Leakage Current: | <200μA |
| PFC Coefficient: | 0.98 (Active) |
| Efficiency: | More than 85% |
| Maximum Output Power PCA-20: | 2000W |
| Voltage Stability: | <0.5% |
| Input Current PCA-25: | <15A |
| Input Current PCA-20: | <21A |
| Input Voltage PCA-25: | 200-240VAC, 50/60Hz |
| Input Voltage PCA-20: | 110-240VAC, 50/60Hz |
| Maximum Output Voltage (VMAX): | 300-2000V |
| Maximum Output Power PCA-25: | 2500W |
Features
- High-Frequency Switch-Mode Converters: The PCA-20 and PCA-25 modules transform AC input to a regulated high voltage DC output for capacitor charging.
- Output Power: PCA-20 offers a maximum output power of 2000W, while PCA-25 provides up to 2500W.
- Selectable Output Voltage: Choose a maximum output voltage (VMAX) from 300V to 2000V at the time of order.
- Medical Grade Compliance: Meets IEC 60601-1 and IEC 60601-1-2 standards, suitable for medical systems without modifications.
- Input Voltage Range: PCA-20 operates on 110-240VAC, 50/60Hz, while PCA-25 requires 200-240VAC, 50/60Hz.
- Voltage Stability and Ripple: Both models maintain voltage stability and ripple/hysteresis below 0.5%.
- Efficiency: Achieves more than 85% efficiency with an active PFC coefficient of 0.98.
- Protection Features: Equipped with protections against open-circuit, short-circuit, overheating, and overvoltage.
- Cooling System: Integrated forced air cooling with a built-in fan.
- Operating Conditions: Suitable for operation in temperatures from +10°C to +40°C and storage from -20°C to +60°C.
- Customizable Options:
- Output Voltage (Vmax): Selectable from 300V to 2000V; higher voltages available on request.
- Discharge Type Modifications:
- Partial Discharge (PD): Available models include 300V, 500V, 700V, 800V, 1000V, 1500V, 2000V.
- Complete Discharge (CD): Available on request for 700V, 1000V, 1500V models.
- Compact Design: Dimensions of approximately 216x153x132mm and a weight of 2.9kg.
Applications
- Medical Systems: The PCA-20 and PCA-25 modules are medical-grade and comply with IEC 60601-1 and IEC 60601-1-2 standards, making them suitable for integration into medical systems without modifications.
- Capacitor Charging: Designed to convert AC input to a regulated high voltage DC output for charging capacitors, these modules are ideal for applications requiring efficient and reliable capacitor charging.
- As a part of power supply for Holmium lasers for surgery (Ho:YAG, CTH:YAG), Alexandrite, long pulse Nd:YAG, long pulse KTP laser systems for aesthetics, Nanosecond (q-switched) and Picosecond Nd:YAG laser systems for tatoo removal, Er:YAG laser system for dermatology, IPL machines, IPL / laser / RF machine with handheld applicators (low-power low-voltage), IPL / laser / diode machine with handheld applicators (medium power)
Frequently Asked Questions
PCA-20 and PCA-25 are capacitor charging modules that transform AC input into a regulated high voltage DC output to charge capacitors. They are optimized for partial discharge applications and can be used in medical systems.
The maximum output power is 2000W for PCA-20 and 2500W for PCA-25.
Yes, the maximum output voltage (VMAX) can be selected from 300V to 2000V at the time of order, and higher voltages are available upon request.
Yes, these modules are medical grade and comply with IEC 60601-1 and IEC 60601-1-2 standards, making them suitable for use in medical systems without modifications.
The modules include protections from open-circuit, short-circuit, overheating, and overvoltage.
PCA-20 requires an input voltage of 110-240VAC, 50/60Hz, while PCA-25 requires 200-240VAC, 50/60Hz.
The operating temperature range is +10°C to +40°C, and the storage temperature range is -20°C to +60°C. The humidity should be less than 90%, non-condensing.
