Discharge Circuits for Safe Energy Dissipation

Did You Know?

In capacitor-based pulsed laser systems, a properly designed discharge circuit can dump several hundred joules in a few microseconds, which corresponds to instantaneous power levels in the megawatt range—even though the average power supply rating might be only a few hundred watts. A common misconception is that discharge resistors are only for "bleeding off" stored energy; in reality, their values are often chosen to shape the current waveform (e.g., critically damped vs underdamped RLC) to protect switches, limit dV/dt, and reduce electromagnetic interference. For example, a 1 kV, 100 µF bank with a 0.1 Ω discharge path has a natural period on the order of tens of microseconds, and small changes in series resistance can dramatically alter peak current and ringing behavior.
Read more in our Blog

Related Resources

Frequently Asked Questions

A discharge circuit is an electronic subassembly designed to safely remove stored charge from capacitors, batteries, or pulse-forming networks after operation or during test cycles. In charger and pulsed-power applications it prevents hazardous residual voltages, stabilizes system behavior between cycles, and protects downstream components from unintended energy release.

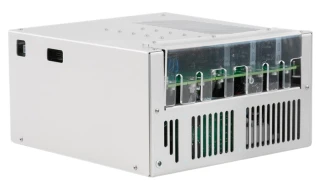

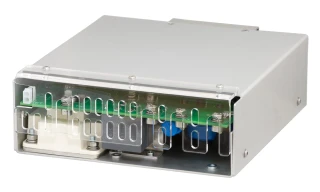

What Are Discharge Circuits?

Discharge Circuits are electronic assemblies designed to safely dissipate stored energy from capacitors, batteries, pulse-forming networks, and other energy-storage elements. They route charge through controlled resistive or active paths, limiting current and voltage transients to protect surrounding components and personnel. In power electronics, laser drivers, and high-voltage test stands, properly engineered Discharge Circuits are essential for safe shutdown, fault handling, and service procedures.

Typical Specifications and Architectures

On FindLight, Discharge Circuits span a range of electrical and mechanical configurations. Key parameters usually include:

  • Operating voltage range: from a few tens of volts up to several kilovolts for capacitor banks and high-voltage rails.
  • Discharge current: peak and continuous values, often from milliamps to tens of amps, sometimes higher for pulsed applications.
  • Energy rating (Joules): maximum safely dissipated energy per event or per unit time.
  • Topology: passive RC networks, resistor ladders, MOSFET/IGBT-switched Discharge Circuits, crowbar arrangements, or integrated bleeder circuits.
  • Control interface: local hardware enable, logic-level trigger, or integration into a system controller or safety interlock.
  • Thermal management: heatsink configuration, derating curves, and allowable duty cycle.
  • Protections: overcurrent limiting, short-circuit endurance, creepage and clearance distances for high-voltage Discharge Circuits.

Mechanical details such as board footprint, mounting style (rack, chassis, PCB), and connector type (terminal blocks, HV connectors, flying leads) are also important in system integration.

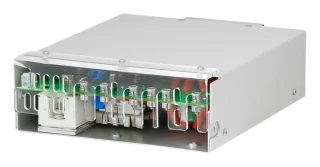

Use Cases in Power and Photonics Systems

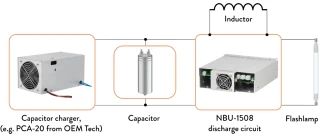

Typical applications for Discharge Circuits include draining high-voltage capacitors in laser power supplies, snubber networks in inverter-based drives, EMC filter discharge in power converters, and controlled battery pack discharge in test setups. In pulsed laser and flashlamp drivers, dedicated Discharge Circuits prevent residual charge from damaging switching devices or causing unintended firing.

Buyer Guidance on FindLight

When evaluating Discharge Circuits on FindLight, start by matching the maximum system voltage and stored energy of your capacitor bank or battery stack. Compare discharge time constants, allowable peak current, and energy ratings to ensure compatibility with your safety requirements and service procedures. Review isolation ratings and insulation design for high-voltage systems, and verify that control interfaces match your existing interlocks or PLC signals.

Use FindLight to compare datasheets, mechanical drawings, and specification tables across available Discharge Circuits. You can contact manufacturers or distributors directly, request detailed quotations, and discuss custom modifications. All inquiries and quote requests can be initiated without registration, simplifying procurement for engineering and R&D teams.
