PCP-07 Capacitor Charging Module Overview

The PCP-07 capacitor charging module is a sophisticated high-frequency switch-mode converter designed to transform DC input (rectified mains) into a regulated high voltage DC output, specifically for charging capacitors. This module stands out due to its robust design and exceptional power output, making it ideal for industrial applications where reliability and efficiency are paramount. With a focus on industrial-grade performance, the PCP-07 is not recommended for use in medical or aesthetic systems, ensuring that it meets the rigorous demands of industrial environments.

Capable of delivering over 700W of output power for modifications with partial discharge (PD) and over 500J/s for complete discharge (CD) modifications, the PCP-07 provides flexibility and power tailored to user requirements. The output voltage is customizable, with a standard range up to 1500V, and can be extended to 2000V upon request, accommodating a wide array of industrial needs. This adaptability ensures that the PCP-07 can be fine-tuned to meet specific operational demands, enhancing its utility across various applications.

Built with user customization in mind, the PCP-07 offers a variety of configurable options. Users can select their desired maximum output voltage within the 300V to 1500V range, and choose between partial or complete discharge modifications depending on their specific application requirements. This level of customization ensures that the module can be precisely aligned with the operational needs of the user, providing an efficient and effective solution for capacitor charging tasks.

More powerful models PCP-17 and PCP-35

Medical grade capacitor chargers: 1 kW PCA-10, 2 kW PCA-20 and 4 kW PCA-40

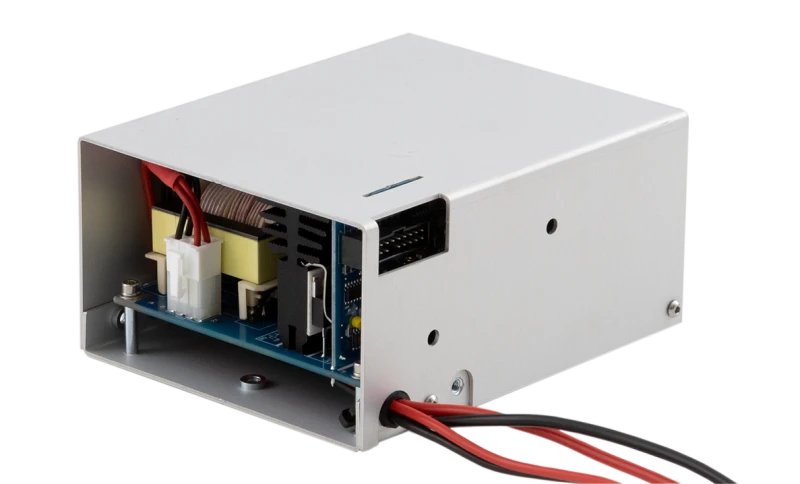

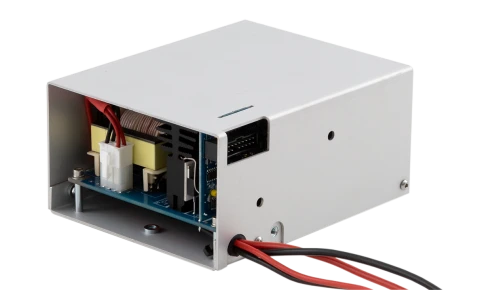

PCP-07 Capacitor Charging Module, 300-2000V Output

Specifications

Voltage (VAC): Not Specified
Max Output Voltage: 300 – 2000 V
Max Output Power: 700 W
Stability: 0.5 %
Input Voltage: 300VDC (rectified 230VAC)
Maximum Output Voltage (VMAX): User selectable in 300-1500V range (up to 2000V on request)
Maximum Output Power: >700W for partial discharge, >500J/s for complete discharge
Stability: 0.5% of VMAX
Pulse To Pulse Stability: 0.5% of VMAX
Efficiency: More than 85%
PFC Coefficient: ~ 0.90
Cooling: Forced-air (external fan required)
Operation Temperature: +10… +40 °C
Storage Temperature: -20 … +60 °C
Humidity: <90%, non-condensing
Dimensions: Approx. 145x123x72mm
Weight: Approx. 1.0kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Industrial Grade: Designed for industrial applications, not recommended for use in medical or aesthetic systems.
  • Electrical Specifications:
    • Input Voltage: 300VDC (rectified 230VAC)
    • Stability: 0.5% of VMAX
    • Pulse to Pulse: 0.5% of VMAX
    • Efficiency: More than 85%
    • Power Factor Correction Coefficient: ~0.90
  • Compact and Lightweight: Dimensions of approximately 145x123x72mm and a weight of around 1.0kg.
  • Customizable Options: Output voltage, discharge optimization, power output, interfaces, connectors, cables, and coverage case can be tailored to specific needs.

Applications

  • High Voltage Capacitor Charging: Efficiently charges capacitors with a regulated high voltage DC output

Frequently Asked Questions

What is the PCP-07 capacitor charging module?
The PCP-07 capacitor charging module is a high-frequency switch-mode converter that transforms DC input (rectified mains) into a regulated high voltage DC output to charge capacitors.
What is the maximum output voltage of the PCP-07 module?
The maximum output voltage is user selectable in the range of 300V to 1500V, with an option to request up to 2000V.
What are the available modifications for the PCP-07 module?
The module is available in partial discharge (PD) and complete discharge (CD) modifications.
What are the electrical protections offered by the PCP-07 module?
The module offers protections from open-circuit, short-circuit, over-temperature, over-voltage, and shuts down on charging timeout.
What are the dimensions and weight of the PCP-07 module?
The dimensions are approximately 145x123x72mm and it weighs about 1.0kg.
What is the efficiency of the PCP-07 module?
The efficiency of the module is more than 85%.
How can I order a PCP-07 module with specific configurations?
You can order using the format PCP-07-XXXX-YY, where XXXX is the VMAX voltage (300V-1500V, up to 2000V on request) and YY is either CD for complete discharge or PD for partial discharge. If YY is omitted, the PD modification will be supplied.
