Description
Union Optic can offer single plate high power waveplate now, due to our unique technology, we can make thickness down to 20 microns. Thanks to her high damage threshold, single plate high power waveplate is normally used in high power application.
- High Damage Threshold
- Better Temperature Bandwidth
- Wide Wavelength Bandwidth
- Wide Acceptance Angle
- Thickness >=0.02mm

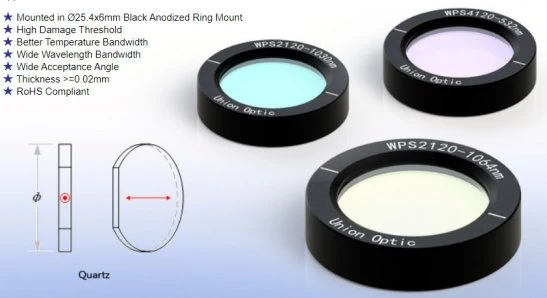

- Mounted in Ø25.4x6mm Black Anodized Ring Mount
- RoHS Compliant
Single Plate High Power Waveplate
Specifications
| Waveplate Type: | Zero Order |
|---|---|
| Material: | Quartz |
| Mounting: | Mounted, Unmounted |
| Shape: | Round, Square, Rectangle, Custom |
| Size: | 25.4 mm |
| Center Wavelength: | 1064 nm |
| Retardation: | Lambda/2, Lambda/4, Lambda, Other |
| Retardation Accuracy: | +/- Lambda/300 |
| Wavefront Distortion: | <= Lambda/8 |
| Surface Quality (Scratch-Dig): | 20-10 |
Download Data Sheet
Features
- Material Crystal Quartz
- Dimension Tolerance +0.0/-0.2mm
- Wavefront Distortion λ/8@632.8nm
- Retardation Tolerance λ/300
- Acceptance Angle 10deg
- Parallelism <1 arc second
- Surface Quality 20/10 scratch and dig
- Clear Aperture >90% central area
- Standard Wave quarter-wave(λ/4), half-wave(λ/2)
- AR Coating R<0.25%@central wavelength
- Damage Threshold >10J/cm2, 20ns, 20Hz @1064nm
Frequently Asked Questions
What is a single plate high power waveplate?
A single plate high power waveplate is an optical component that is used in high power applications due to its high damage threshold.
What is the thickness of the single plate high power waveplate?
The thickness of the single plate high power waveplate can be made down to 20 microns due to Union Optic's unique technology.
What is the damage threshold of the single plate high power waveplate?
The damage threshold of the single plate high power waveplate is greater than 10J/cm2, 20ns, 20Hz @1064nm.
What is the acceptance angle of the single plate high power waveplate?
The acceptance angle of the single plate high power waveplate is 10 degrees.
What is the material used to make the single plate high power waveplate?
The single plate high power waveplate is made of crystal quartz.
