High Quality Quartz Zero-Order / Half-Quarter Waveplates with AR Coating for Quantum Communication Research

Name: High Quality Quartz Zero-Order / Half-Quarter Waveplates with AR Coating for Quantum Communication Research
Brand: Henan UM Optics Ltd
Availability: InStock

Description

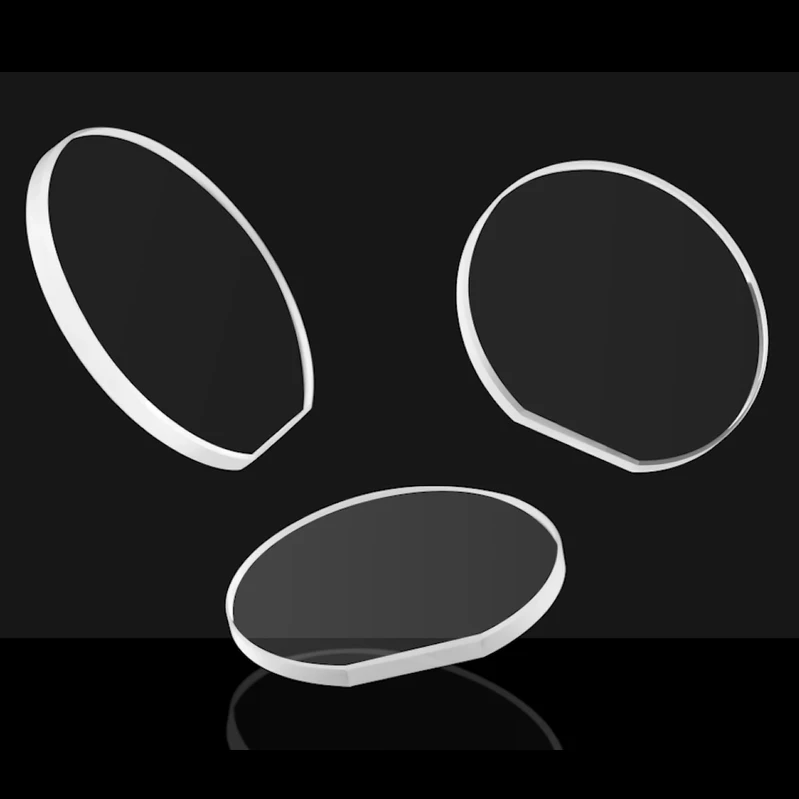

Quartz waveplates are precision optical retardation components fabricated from high-quality quartz crystal. Utilizing the birefringence property of quartz crystal, they generate a specific phase difference between two orthogonal polarized light beams. Featuring strict crystal axis orientation, high surface finish and precise retardation accuracy, quartz waveplates deliver stable polarization modulation performance over a wide wavelength range. They are widely used to adjust, convert and control the polarization state of laser beams, ideal for laser systems, polarization spectroscopy and high-precision optical experimental setups.

Specifications

Waveplate Type:	Zero Order
Material:	Quartz
Mounting:	Unmounted
Shape:	Round
Size:	Not Specified
Center Wavelength:	Not Specified
Retardation:	Lambda/4
Retardation Accuracy:	Custom
Wavefront Distortion:	Custom
Surface Quality (Scratch-Dig):	40-20
Size:	Custom
Center Wavelength:	266nm, 355nm, 532nm, 632.8nm, 1064nm or custom

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Birefringence Property: Reliable phase retardation performance based on intrinsic quartz crystal birefringence
Precise Retardation Accuracy: Strict crystal cutting and axis alignment ensure accurate 1/4, 1/2 and full-wave retardation
Broad Working Wavelength Range: Stable optical performance applicable to ultraviolet, visible and near-infrared bands
Low Temperature Sensitivity: Small thermal drift of retardation value, maintaining stable performance under ambient temperature changes
High Laser Damage Threshold: Adaptable to long-term operation of continuous and pulsed laser equipment
Excellent Optical Homogeneity: Low internal impurities and defects, minimizing light scattering and transmission loss

Applications

Laser Polarization Regulation: Used to change linear polarized light into circular polarized light or adjust polarization direction.
Optical Communication Systems: Polarization state matching and phase modulation in fiber optical path assemblies
Spectroscopy and Polarization Measurement: Applied in polarization spectroscopy, optical detection and analytical instruments
Laser Precision Processing: Matching laser polarization requirements for laser marking, cutting and welding equipment
Scientific Research Optics: Used in physical optics experiments, interferometry and high-precision polarization testing platforms

Name

Work Email

Organization

Your message to supplier

FAST RESPONSE

Ships from:

China

Sold by:

Henan UM Optics Ltd ✓ Verified Supplier

On FindLight:

since 2024

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the working principle of a quartz waveplate?

It adopts the natural birefringence of quartz crystal. When polarized light passes through, two mutually perpendicular light waves propagate at different speeds, forming a fixed phase difference to realize polarization conversion.

What is the difference between 1/4 waveplate and 1/2 waveplate?

A 1/4 waveplate converts linearly polarized light into circularly polarized light; a 1/2 waveplate rotates the polarization angle of linearly polarized light without changing its polarization type.

What is the main difference between zero-order and multi-order quartz waveplates?

Zero-order waveplates provide exactly one wavelength of phase retardation with very low temperature and wavelength sensitivity. Multi-order waveplates are composed of multiple integer wave orders, thicker in size, more sensitive to ambient temperature and wavelength shift, but with lower cost and easier processing.
