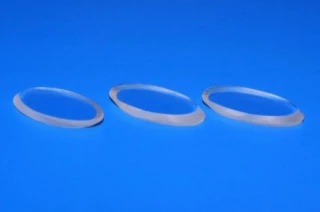

Brewster Windows

Zero reflection for p-polarization 20% reflectance for s-polarization Uncoated, high damage threshold Used in laser cavities

Specifications

Substrate Material: BK7, Fused Silica
Surface Quality (Scratch-Dig): 20-10
Wavefront Distortion: <= Lambda/10
Diameter (Minor Axis): 25 mm
Thickness: 2 mm
Our premium optical components are crafted from a variety of high-quality materials, each with its own unique properties to suit diverse applications. These materials include Zinc Selenide (ZnSe), Zinc Sulfide (ZnS), Germanium (Ge), Silicon, Calcium Fluoride (CaF2), Sapphire, Fused Silica, SF, and BK7. Each material is precisely ...

Specifications

Substrate Material: Chalcogenide Glass, Ge, ZnSe
Surface Quality (Scratch-Dig): 40-20
Wavefront Distortion: <= Lambda/20
Thickness And Diameter: Based on customer needs
Discover our comprehensive range of optical materials, meticulously crafted to meet the highest standards of precision and quality. Whether you're in search of Zinc Selenide (ZnSe), Zinc Sulfide (ZnS), Germanium (Ge), Silicon, Calcium Fluoride (CaF2), Sapphire, Fused Silica, SF, or BK7, our selection offers unparalleled performance ...

Specifications

Substrate Material: BK7, UV Fused Silica, Fused Silica
Surface Quality (Scratch-Dig): 10-5
Wavefront Distortion: <= Lambda/10
Thickness And Diameter: Based on customer needs

Brewster Windows: Precision Polarization Control for Advanced Optical Systems

Brewster windows are specialized optical components designed to minimize reflection losses for p-polarized light when positioned at Brewster's angle. By allowing p-polarized light to pass through with minimal reflection while reflecting s-polarized light, these windows serve as efficient polarizers in various optical applications, particularly within laser cavities and polarization-sensitive systems.

Understanding Brewster's Angle

Brewster's angle, named after Scottish physicist Sir David Brewster, is the angle of incidence at which light with p-polarization (polarized parallel to the plane of incidence) experiences zero reflection at the interface between two media. Mathematically, Brewster's angle (θ_B) is given by:

θ_B = arctangent(n₂ / n₁)

where n₁ and n₂ are the refractive indices of the initial and transmitting media, respectively. At this angle, p-polarized light is entirely transmitted, while s-polarized light (perpendicular to the plane of incidence) is partially reflected, enabling the separation of polarization components.

Key Features and Specifications

Brewster windows are typically uncoated substrates made from materials such as UV-grade fused silica or BK7 glass. Their design and fabrication focus on achieving high optical quality and precise geometrical tolerances to ensure optimal performance. Common specifications include:

  • Material: UV-grade fused silica or BK7

  • Surface Quality: 10-5 to 20-10 scratch-dig

  • Wavefront Distortion: λ/10 at 632.8 nm

  • Parallelism: ≤ 10 arc seconds

  • Clear Aperture: >90% of the window area

  • Thickness Tolerance: ±0.2 mm

  • Brewster Angle: Approximately 55.57° for fused silica at 632.8 nm

These specifications ensure minimal wavefront distortion and high transmission efficiency for p-polarized light.

Applications in Optical Systems

1. Laser Cavities: Brewster windows are commonly used within laser cavities to enforce linear polarization. By preferentially transmitting p-polarized light and reflecting s-polarized light, they help maintain a stable polarization state, which is crucial for applications requiring consistent beam characteristics.

2. Polarization Control: In optical setups where controlling the polarization state is essential, Brewster windows serve as passive polarizers, separating polarization components without the need for additional coatings or complex optical elements.

3. Optical Isolators and Circulators: Brewster windows can be integrated into optical isolators and circulators to manage polarization-dependent losses, enhancing the performance of these devices in fiber-optic communication systems.

4. Spectroscopy and Metrology: In spectroscopic instruments and precision metrology setups, Brewster windows aid in controlling and analyzing the polarization state of light, contributing to accurate measurements and analyses.

Selecting the Right Brewster Window

When choosing a Brewster window for your application, consider the following factors:

  • Material Compatibility: Ensure the substrate material is suitable for your operating wavelength range and environmental conditions.

  • Dimensional Requirements: Select appropriate window dimensions and thickness to fit your optical setup.

  • Surface Quality and Flatness: High-quality surfaces minimize scattering and wavefront distortion, critical for precision applications.

  • Angle of Incidence: Confirm that the Brewster angle aligns with your system's design to achieve optimal polarization separation.

At FindLight, we offer a diverse selection of Brewster windows tailored to meet the stringent demands of modern optical systems. Explore our catalog to find the ideal component that ensures efficient polarization control and enhances the performance of your optical applications.

Did You know?

An angle of incidence at which light with a particular polarization is perfectly transmitted through a transparent dielectric surface, with no reflection, is called Brewster’s angle after the Scottish physicist David Brewster. Brewster windows are uncoated substrates which can be used as polarizers. When positioned at Brewster's Angle, the P-polarized component of light enters and exits the window without reflection losses, while the S-polarized component is reflected. Brewster windows are often fabricated using UV fused silica that does not have laser-induced fluorescence, which makes it well-suited for applications that use ultraviolet to near infrared light. They are used in laser physics, holography, polarization optics and more.
