Description

Welcome to the world of precision optics with LaserOptics, where cutting-edge technology meets exceptional quality. Our waveplates are meticulously crafted to meet the high standards required for solid-state laser systems. At CRYSTECH, we pride ourselves on delivering waveplates that not only meet but exceed industry expectations, ensuring optimal performance in every application.

Our waveplates are available in a variety of materials, including high-grade Quartz crystal and MgF2, allowing for customizable shapes and sizes to suit your specific needs. With a clear aperture of over 90% and a wavefront distortion of L/8@633nm, our products promise clarity and precision. The surface quality of 20/10 and flatness of less than 3" ensure that our waveplates deliver superior optical performance.

At the heart of our product line are the Half Waveplate and Quarter Waveplate. The half waveplate is designed with a thickness that provides a phase difference of 1/2-wavelength (true-zero order) or a multiple thereof, while the quarter waveplate offers a phase difference of 1/4-wavelength (true-zero order) or its multiples. These waveplates are ideal for a wide range of applications, guaranteeing high damage thresholds and reliability.

For those seeking versatility and customization, our waveplates come with the option of standard or customized coatings to meet your specific requirements. Additionally, you have the choice to install the waveplates with or without a holder, further enhancing their adaptability to your projects.

Explore our diverse selection of waveplates, including the Single Plate True Zero Order Waveplate, Low Order Waveplate, Optically Contacted True Zero Waveplate, and Air Spaced Zero-Order Waveplate. Each type offers unique benefits, from broad spectral bandwidth to high damage thresholds, ensuring that you find the perfect fit for your optical needs.

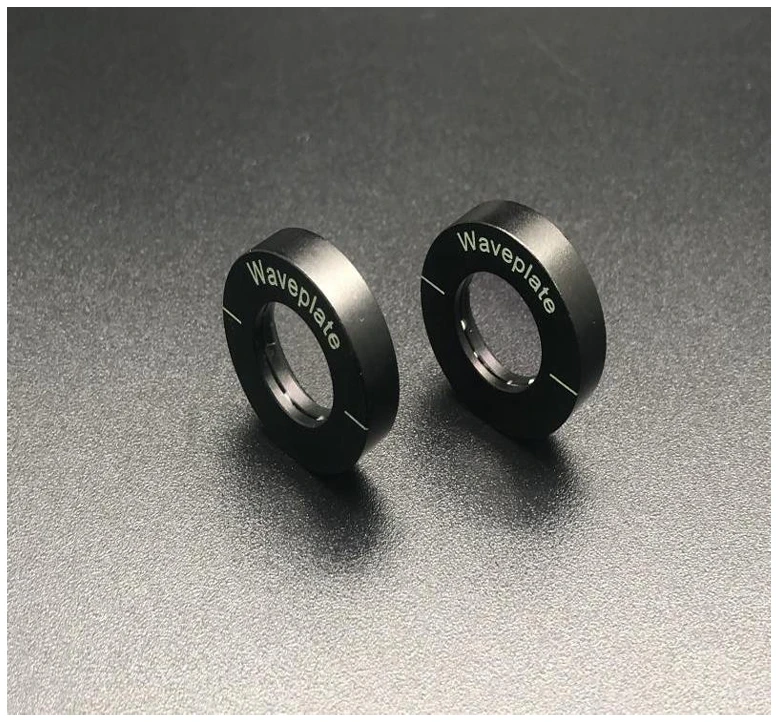

Quartz or MgF2 Waveplates for Solid-State Lasers

Specifications

Waveplate Type (Retardation Order): Zero Order
Material: Quartz and MgF2, MgF2, Quartz
Mounting: Mounted, Unmounted
Shape: Round
Size (Largest Dimension): 10 mm
Design Wavelength: 532 nm
Surface Quality (Scratch-Dig): 20-10
Retardation: Lambda/2, Lambda/4
Retardation Tolerance: Unspecified
Transmitted Wavefront Distortion (TWD): <= Lambda/8
Material: Quartz crystal or MgF2
Dimension Tolerance: ﹢0/-0.2mm
Clear Aperture: >90%
Wavefront Distortion: L/8@633nm
Surface Quality: 20/10
Flatness: <3″
Retardation Tolerance: L/300
Thickness (Low Order Waveplate): 0.2-0.5mm
Thickness (Optically Contacted True Zero Waveplate): 1.5~2mm
AR Coating Reflectance: R<0.2%
Standard Product Type: Single Plate True Zero order Waveplate
Size (Single Plate True Zero Order Waveplate): φ10mm, φ12.7mm
Working Wavelength: 532nm, 755nm, 1064nm, 1320nm, 1570nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Material: Quartz crystal or MgF2
  • Customizable Shape and Size: Tailor the waveplate to meet specific requirements.
  • Dimension Tolerance: +0/-0.2mm
  • Clear Aperture: >90%
  • Wavefront Distortion: L/8 @ 633nm
  • Surface Quality: 20/10
  • Flatness: <3″
  • Retardation Tolerance: L/300
  • High Damage Threshold: Durable under high-intensity conditions.
  • Holder Option: Choose to install with or without a holder.
  • Coating Options: Standard or customizable according to customer needs.

Waveplate Variants

  • Single Plate True Zero-Order Waveplate:
    • Broad Spectral Bandwidth
    • Wide Temperature Bandwidth
    • Wide Angle Bandwidth
    • High Damage Threshold
  • Low Order Waveplate:
    • Thickness: 0.2-0.5mm
    • High Damage Threshold
    • Low Cost
  • Optically Contacted True Zero Waveplate:
    • Optically Contacted
    • Thickness: 1.5~2mm
    • Double Retardation Plates
    • Broad Spectral Bandwidth
    • Wide Temperature Bandwidth
  • Air-Spaced Zero-Order Waveplate:
    • Double Retardation Plates
    • AR Coated, R<0.2% and Mounted
    • High Damage Threshold
    • Better Temperature Bandwidth
    • Wide Wavelength Bandwidth

Standard Product Sizes

  • Single Plate True Zero-Order

Applications

  • Laser optics
  • Imaging
  • Metrology
  • Polarization control

Frequently Asked Questions

What materials are used for the waveplates?
The waveplates are made from Quartz crystal or MgF2.
Can the shape and size of the waveplates be customized?
Yes, the shape and size of the waveplates can be customized.
What is the dimension tolerance of the waveplates?
The dimension tolerance of the waveplates is +0/-0.2mm.
What is the retardation tolerance of the waveplates?
The retardation tolerance of the waveplates is L/300.
Are there options for installing a holder with the waveplates?
Yes, you can choose whether to install a holder or not with the waveplates.
What types of coatings are available for the waveplates?
Standard coatings are available, and coatings can also be customized according to customer needs.
What are the available sizes and working wavelengths for the waveplates?
Available sizes include φ8mm, φ10mm, φ12.7mm, φ15mm, and φ25.4mm, with working wavelengths of 532nm, 755nm, 1064nm, 1320nm, and 1570nm.

Got more questions? Use the inquiry form to ask the supplier directly.
