BK7 Laser Line Mirrors

Laser Line HR mirrors can be designed for specific wavelengths and angles, various shapes, sizes and forms. Alien Photonics Custom HR Mirrors can also be optimized for maximal reflection, LIDT or other characteristics. Readily available Nd:YAG, Yb:YAG, Ti:Sapphire laser line HR mirrors is just a small taste of Alien Photonics wide ...

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Calcium Fluoride, Sapphire, Metallic, Si, Custom
Wavelength Range: 193-6500nm
Angle Of Incidence (AOI): 0-45 deg
Flatness (Coated Surface): lambda/10, lambda/8, lambda/6, lambda/4, lambda/2, 1 lambda
Surface Quality: 10-5 scratch-dig, 20-10 scratch-dig, 40-20 scratch-dig, 60-40 scratch-dig, 80-50 scratch-dig
...
Laser Line Mirrors on N-BK7 Substrate are highly reflective mirrors designed for non-critical laser applications in the 350-1570 nm wavelength range. These mirrors offer >99.5% reflectivity and are made from BK7 optical substrate, providing a low-cost alternative to UV grade fused silica mirrors. They are optimized for specific ...

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica
Wavelength Range: 527-532nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 20-10 scratch-dig
...
Photonchina supplies a wide variety of mirrors, ranging from laser line mirrors, harmonic separator mirrors, high reflection (HR) mirrors, partial reflection mirrors and metallic coated mirrors. Wide selection of rectangular, round, elliptical, or custom shape mirrors with flat, spherical concave or convex and cylindrical surfaces ...

Specifications

Substrate Material: BK7, Supremax 33, Mo, Cu, Si, Metallic, Zerodur, Sapphire, Calcium Fluoride, IR Fused Silica, UV Fused Silica, Fused Silica, Custom
Wavelength Range: 190-4000nm
Angle Of Incidence (AOI): 0-50 deg
Flatness (Coated Surface): lambda/20, lambda/10, lambda/8, lambda/6, lambda/4
Surface Quality: 10-5 scratch-dig, 20-10 scratch-dig, 40-20 scratch-dig, 60-40 scratch-dig
...
TFM-12.7C05-1064 Laser Line Mirror 12.7mm Diameter 5mm Thick 1064nm Wavelength
OptoSigma Corp
These laser mirrors are designed for specific wavelength laser applications where low wavefront distortion, low scattering and high reflectivity are usually important. These narrowband reflectors are for several wavelengths and sizes.

Specifications

Substrate Material: BK7
Wavelength Range: 1064-1064nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 10-5 scratch-dig
...
TFM-50.8C08-1064 Laser Line Mirror 50.8mm Diameter 8mm Thick 1064nm Wavelength
OptoSigma Corp
These laser mirrors are designed for specific wavelength laser applications where low wavefront distortion, low scattering and high reflectivity are usually important. These narrowband reflectors are for several wavelengths and sizes.

Specifications

Substrate Material: BK7
Wavelength Range: 1064-1064nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 10-5 scratch-dig
...
TFM-30C05-1064 Laser Line Mirror 30mm Diameter 5mm Thick 1064nm Wavelength
OptoSigma Corp
These laser mirrors are designed for specific wavelength laser applications where low wavefront distortion, low scattering and high reflectivity are usually important. These narrowband reflectors are for several wavelengths and sizes.

Specifications

Substrate Material: BK7
Wavelength Range: 1064-1064nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 10-5 scratch-dig
...
Laser Line Mirrors are designed to reflected laser light at 45 degree. There are four laser wavelengths available 532nm, 1064nm, 1320nm and 2940nm.

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica
Wavelength Range: 532-2940nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/8, lambda/4
Surface Quality: 20-10 scratch-dig, 40-20 scratch-dig
...

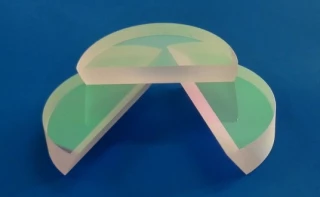

D-shaped mirror is always used to separate closely spaced light beams. The high reflective coating extends to the straight edge of the mirror within 0.05mm, and a portion of the substrate behind the straight edge is removed, these make D-shaped mirror is ideal for picking off one of two closely spaced light beams, and not affect the ...

Specifications

Substrate Material: BK7, Fused Silica, Custom
Wavelength Range: 400-12000nm
Angle Of Incidence (AOI): 0-45 deg
Flatness (Coated Surface): lambda/10
Surface Quality: 60-40 scratch-dig
...
High Reflectivity, Ravg>99%, AOI 0-45degWide Working BandRoHS Compliant

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica, IR Fused Silica
Wavelength Range: 350-1550nm
Angle Of Incidence (AOI): 0-45 deg
Flatness (Coated Surface): lambda/4
Surface Quality: 60-40 scratch-dig
...
High Reflectivity, R>99%@two wavelengthsHigh damage thresholdRoHS Compliant

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Custom
Wavelength Range: 527-1064nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/4
Surface Quality: 60-40 scratch-dig
...
High reflectivity, R>99.5%High damage thresholdRoHS Compliant

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Custom
Wavelength Range: 260-1570nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/4
Surface Quality: 60-40 scratch-dig
...
Mirrors are used in a wide range of beam steering, focusing and collimating applications. RMAX Mirrors utilize multi-layer, dielectric thin films. Laser-Line RMAX Mirrors are designed for high reflectance at a single laser wavelength. High power coating designs are standard for select wavelengths. Substrates are available with ...

Specifications

Substrate Material: BK7, Fused Silica, UV Fused Silica
Wavelength Range: 193-193nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/20, lambda/10
Surface Quality: 10-5 scratch-dig
...
On FindLight marketplace you will find 12 different BK7 Laser Line Mirrors from suppliers around the world. With just a few clicks you can compare different BK7 Laser Line Mirrors and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
