Description
High Reflectivity, R>99%@two wavelengths
High damage threshold
RoHS Compliant

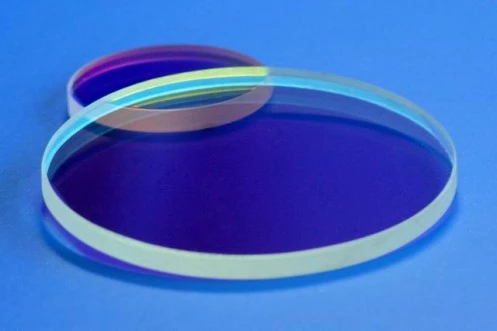

Dielectric Dual Laser Line Mirror
Specifications
Substrate Material: | BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Custom |
---|---|
Wavelength Range: | 527 – 1064 nm |
Angle Of Incidence (AOI): | 45 deg |
Flatness (Coated Surface): | lambda/4 |
Surface Quality: | 60-40 scratch-dig |
Reflectivity (Rs, Rp): | 99 % |
Diameter: | 25.4 mm |
Thickness: | 3 mm |
Features
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/10@632.8nm per 25mm range
Surface Quality 60/40 scratch and dig
Coating Dielectric HR coating, R>99%@527-532&1047-1064nm, for random polarization, AOI 45deg, rear surface ground or inspection polished
Damage Threshold >5J/cm2, 20ns, 20Hz, @1064nm
Frequently Asked Questions
What is the damage threshold of the mirror?
The damage threshold of the mirror is >5J/cm2, 20ns, 20Hz, @1064nm.
What is the reflectivity of the Dielectric Dual Laser Line Mirror?
The reflectivity of the mirror is R>99% at two wavelengths.
What is the surface quality of the mirror?
The surface quality of the mirror is 60/40 scratch and dig.
What is the clear aperture of the mirror?
The clear aperture of the mirror is >90%.
Is the Dielectric Dual Laser Line Mirror compliant with RoHS?
Yes, the mirror is RoHS compliant.
