Description

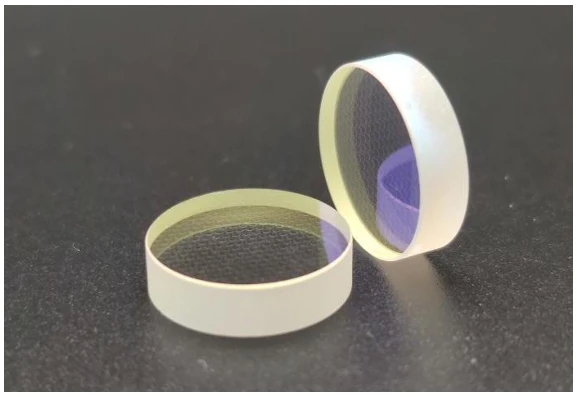

CRYSTECH brings you the Cell Mirror, a cutting-edge optical component specifically designed for Nd:YAG Q-Switch Laser Medical Devices. With over a decade of experience in the manufacturing, design, and coating of cell mirrors, CRYSTECH ensures precision and reliability in every product. The Cell Mirror is a binary optical element that plays a crucial role in transforming the Gaussian beam within laser systems into a flat-topped beam, optimizing the performance and efficiency of the laser device.

Our expertise in cell mirror technology allows us to provide solutions for various Q-Switch systems, including those operating at 1064nm, 755nm, and 694nm wavelengths. The transformation of the beam spot before and after homogenization is a testament to the quality and effectiveness of our Cell Mirror technology. This transformation is critical for applications requiring uniform beam profiles, enhancing the overall output quality of laser systems.

Our commitment to innovation and quality assurance is evident in the meticulous design and manufacturing processes employed for the Cell Mirror. Each product undergoes rigorous testing to ensure it meets the high standards demanded by the laser and medical industries. By choosing CRYSTECH's Cell Mirror, you are investing in a product that delivers precision, reliability, and superior performance.

High Precision Cell Mirror for Nd:YAG Q-Switch Laser

Specifications

Substrate Material: BK7, Metallic, IR Fused Silica, UV Fused Silica, Fused Silica
Diameter: 15 mm
Thickness: 4 mm
Wavelength Range: 1064 – 1064 nm
Surface Quality, S1 (scratch-dig): 20-10
Surface Flatness Over CA, S1 (@633 Nm Or Per Manufacturer): Lambda/10
Wavelength: 1064 nm
Curvature: R=-2000
Wavelength: 1065 nm
Wavelength: 755 nm
Wavelength: 694 nm
Size: φ15X4
Size: φ20X4
Size: φ25.4X4
Curvature: R=-2500
Curvature: R=-3000
Curvature: R=-4000

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Precision Manufacturing: CRYSTECH is dedicated to producing high precision Cell Mirrors for Nd:YAG Q-Switch Laser Medical Devices, ensuring top-quality performance and reliability.
  • Over a Decade of Experience: With more than 10 years of expertise in cell mirror manufacturing, design, and coating, CRYSTECH guarantees superior quality and innovation.
  • Beam Transformation: The CellMirror is a binary optical element that transforms the Gaussian beam in laser systems into a flat-topped beam, enhancing the efficiency and effectiveness of laser applications.
  • Wavelength Compatibility: CRYSTECH provides Cell Mirrors compatible with 1064nm, 755nm, and 694nm Q-Switch systems, catering to a wide range of laser applications.

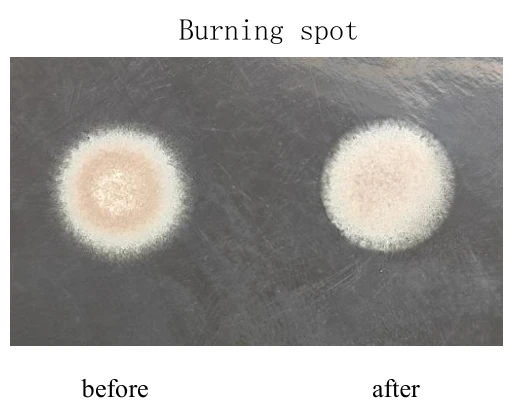

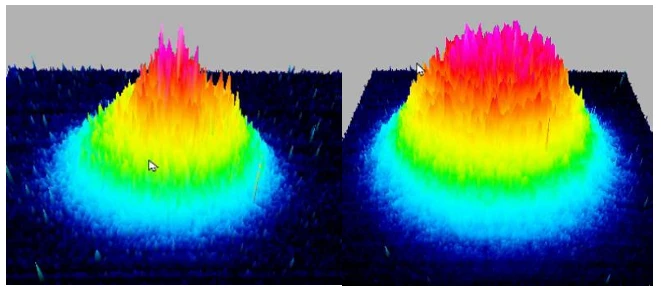

  • Beam Quality Analysis: The product ensures improved beam quality, as evidenced by the beam spot before and after homogenization, providing consistent and reliable performance.
  • Variety of Standard Products: CRYSTECH offers a range of standard products with different sizes, coatings, and curvatures to suit specific needs:
    • P/N: OP.CLM.D15004.C002, Size: φ15X4, Coating: 1064nm, Curvature: R=-2500
    • P/N: OP.CLM.D15004.C003, Size: φ15X4, Coating: 1064nm, Curvature: R=-3000
    • P/N: OP.CLM.D15004.C004, Size: φ15X4, Coating: 1064nm, Curvature: R=-4000
    • P/N: OP.CLM.D15004.C005, Size: φ15X4, Coating: 1064nm, Curvature: R=-2000
    • P/N: OP.CLM.D20004.C002, Size: φ20X4, Coating: 1064nm, Curvature: R=-2500
    • P/N: OP.CLM.D20004.C020, Size: φ20X4, Coating: 1064nm, Curvature: R=-4000
    • P/N: OP.CLM.D25004.C001, Size: φ25.4X4, Coating: 1064nm, Curvature: R=-2000
    • P/N: OP.CLM.D25004.C002, Size: φ25.4X4, Coating: 1065nm, Curvature: R=-4000

Applications

  • Precision Cell Mirror Manufacturing: CRYSTECH specializes in high precision Cell Mirrors for Nd:YAG Q-Switch Laser Medical Devices.
  • Gaussian Beam Transformation: Our Cell Mirrors are binary optical elements designed to transform the Gaussian beam in laser systems into a flat-topped beam, enhancing laser performance.

Frequently Asked Questions

What is the CellMirror used for?
The CellMirror is used in Nd:YAG Q-Switch Laser Medical Devices to transform the gaussian beam into a flat-topped beam.
What wavelengths can the CellMirror handle?
The CellMirror can be provided for 1064nm, 755nm, and 694nm Q-Switch systems.
What sizes are available for the CellMirror?
The CellMirror is available in sizes φ15X4, φ20X4, and φ25.4X4.
What is the curvature range for the CellMirror?
The CellMirror is available with curvatures ranging from R=-2000 to R=-4000.
What is the main function of the CellMirror?
The main function of the CellMirror is to transform the gaussian beam in the laser system into a flat-topped beam.
How long has CRYSTECH been manufacturing CellMirrors?
CRYSTECH has over 10 years of experience in cell mirror manufacturing, design, and coating.

Got more questions? Use the inquiry form to ask the supplier directly.
