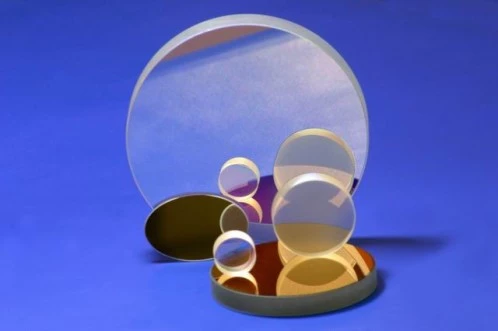

Broadband Dielectric Mirror
Specifications
| Substrate Material: | BK7, Fused Silica, UV Fused Silica, IR Fused Silica |
|---|---|
| Wavelength Range: | 350 – 1550 nm |
| Angle Of Incidence (AOI): | 0 deg |
| Flatness (Coated Surface): | lambda/4 |
| Surface Quality: | 60-40 scratch-dig |
| Reflectivity (Rs, Rp): | 99 % |
| Diameter: | 25.4 mm |
| Thickness: | 3 mm |
Download Data Sheet
Features
Dimension Tolerance +0.0/-0.2mm
Thickness Tolerance ±0.2mm
Clear Aperture >90%
Flatness λ/10@632.8nm per 25mm range
Surface Quality 60/40 scratch and dig
Coating Dielectric HR coating on one surface, Ravg>99% for random polarization, AOI 0-45deg, rear surface ground or inspection polished
Damage Threshold >1J/cm2, 20ns, 20Hz, @1064nm
Frequently Asked Questions
What is the damage threshold of the Broadband Dielectric Mirror?
The damage threshold of the Broadband Dielectric Mirror is >1J/cm2, 20ns, 20Hz, @1064nm.
What is the surface quality of the Broadband Dielectric Mirror?
The surface quality of the Broadband Dielectric Mirror is 60/40 scratch and dig.
What is the reflectivity of the Broadband Dielectric Mirror?
The reflectivity of the Broadband Dielectric Mirror is Ravg>99%.
What is the working band of the Broadband Dielectric Mirror?
The Broadband Dielectric Mirror has a wide working band.
Is the Broadband Dielectric Mirror RoHS compliant?
Yes, the Broadband Dielectric Mirror is RoHS compliant.
Got more questions? Use the RFQ form to ask the supplier directly.
