Description

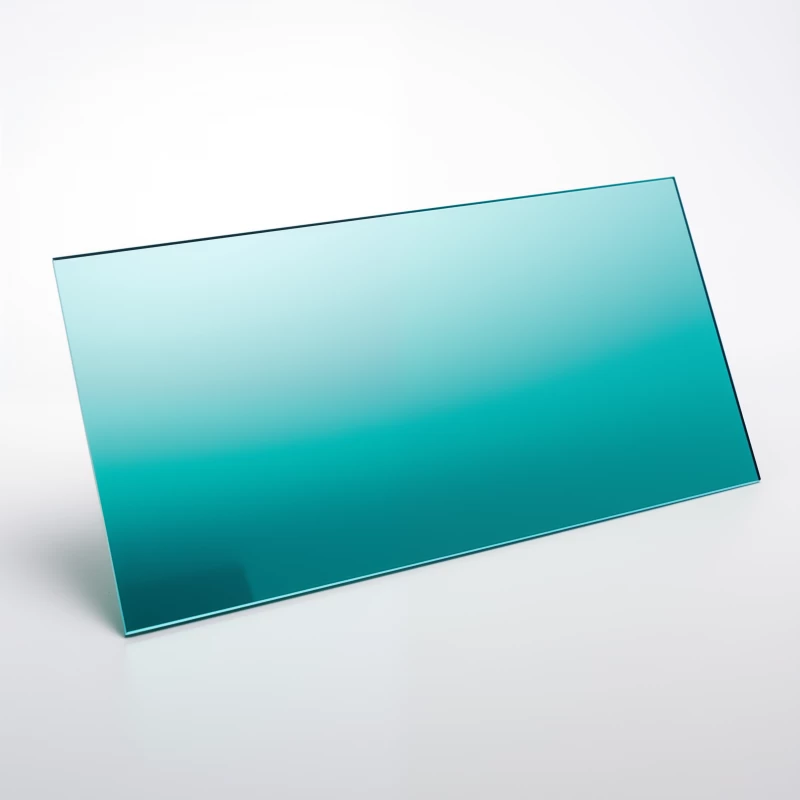

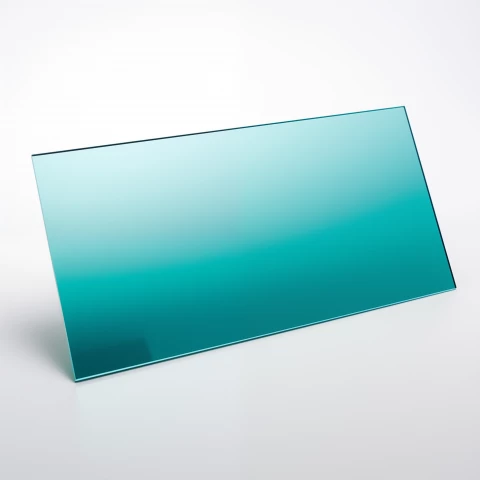

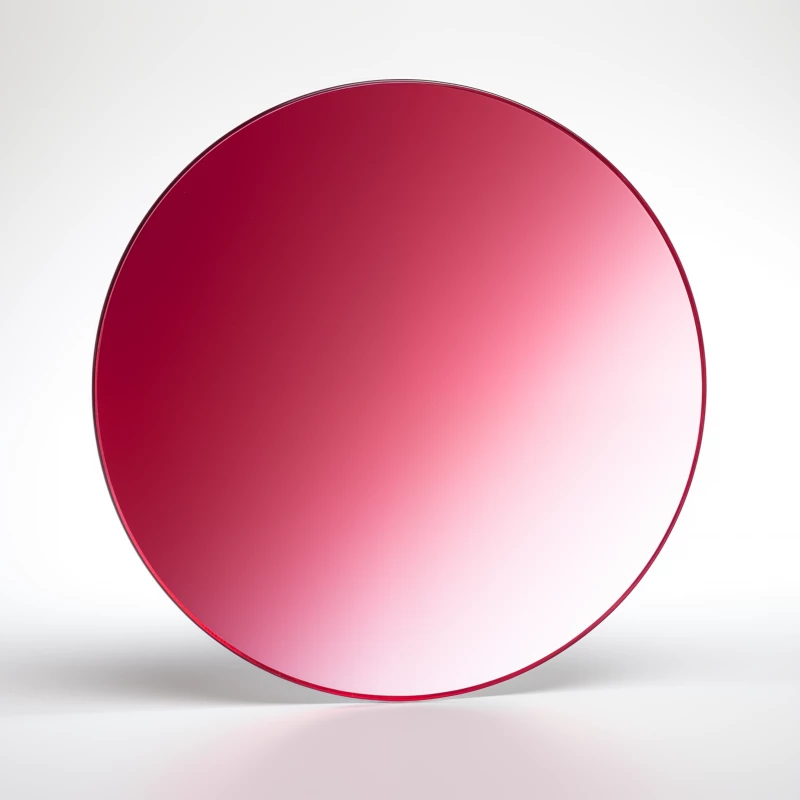

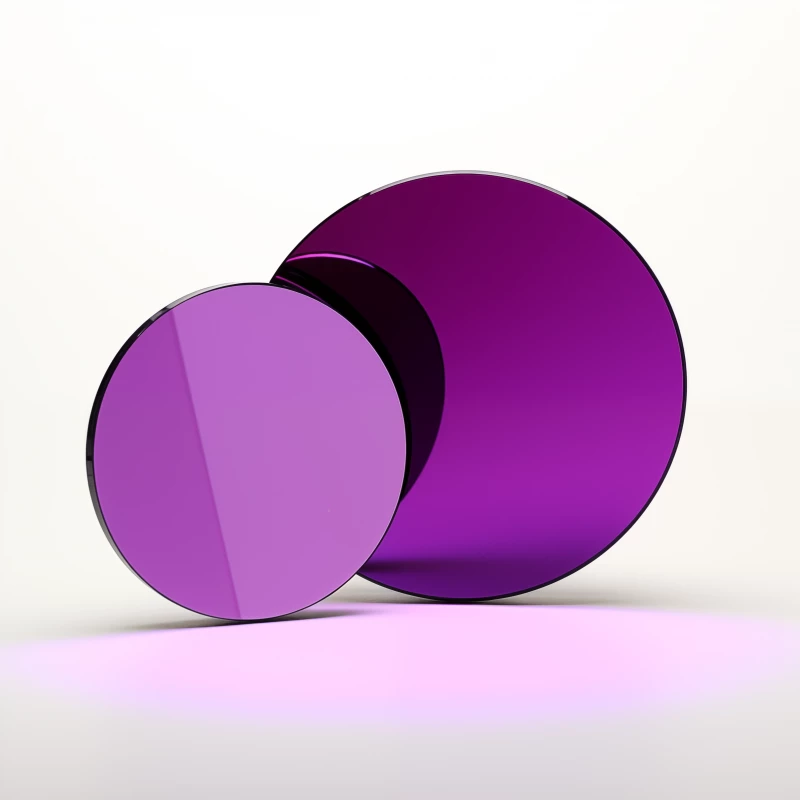

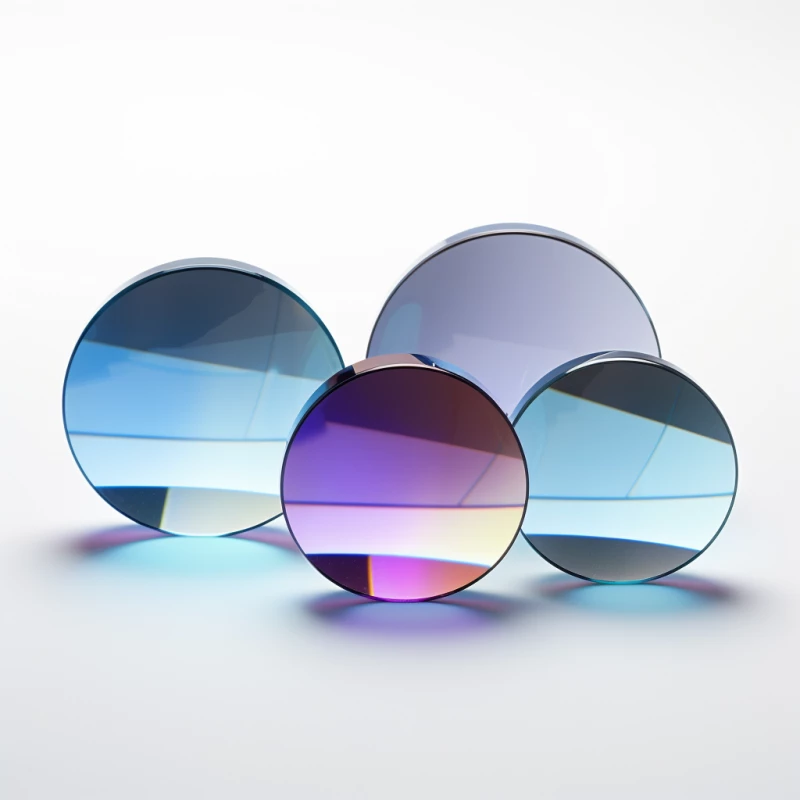

Laser Line HR mirrors can be designed for specific wavelengths and angles, various shapes, sizes and forms. Alien Photonics Custom HR Mirrors can also be optimized for maximal reflection, LIDT or other characteristics.
Readily available Nd:YAG, Yb:YAG, Ti:Sapphire laser line HR mirrors is just a small taste of Alien Photonics wide product range.
Laser Line HR Mirrors – Nd:YAG, Yb:YAG, Ti:Sapphire, Custom - Alien Photonics
Specifications
Substrate Material: | BK7, Fused Silica, UV Fused Silica, IR Fused Silica, Calcium Fluoride, Sapphire, Metallic, Si, Custom |
---|---|
Wavelength Range: | 193 – 6500 nm |
Angle Of Incidence (AOI): | 0 deg |
Flatness (Coated Surface): | lambda/10, lambda/8, lambda/6, lambda/4, lambda/2, 1 lambda |
Surface Quality: | 10-5 scratch-dig, 20-10 scratch-dig, 40-20 scratch-dig, 60-40 scratch-dig, 80-50 scratch-dig |
Reflectivity (Rs, Rp): | 99.95 % |
Diameter: | 1 mm |
Thickness: | 0.1 mm |
Features
- High reflection 99.7-99.9%(standard) & 99.95% (advanced)
- High LIDT >5-15 J/cm² @ 1064 nm, 10 ns, 10 Hz (or higher)
Applications
- Nd:YAG HR mirrors: 1064, 532, 355, 266 nm
- Yb:YAG HR mirrors: 1030, 515, 343 nm
- Ti:Sapphire HR Mirrors: 800, 400 and 267 nm and custom-tuned wavelengths
- Excimer Laser Line (HR) Mirrors 193, 222, 248, 282, 308, 351 nm
- Ruby Laser Line (HR) Mirrors 694.3, 347.15 nm
- Alexandrite Laser Line (HR) Mirrors 755 nm
- Infrared Laser Line(HR) Mirrors for Cr:ZnSe, Cr:ZnS, Fe:ZnSe, Fe:ZnS, Cr:CdSe lasers
- Laser line (HR) Mirrors for CO:MALO (CO:SPINEL) media lasers: 1540, 770, 513, 385 nm
Frequently Asked Questions
What is typical price of Laser Line HR Mirrors?
From 80 EUR/pc for small batches. Price may vary several factors (batch size, required quality, etc.)
What is typical delivery time of Laser Line Mirrors?
If we have mirrors in stock, it takes about 1-3 days to ship it. If Alien Photonics needs to produce them it could take up to 4-6 weeks depending on complexity.
