UV and Excimer Laser Mirror 308nm M308-FR45-2D-MB (2.0” Diameter)

Specifications

Substrate Material: UV Fused Silica
Wavelength Range: 308 – 308 nm
Angle Of Incidence (AOI): 45 deg
Flatness (Coated Surface): lambda/20
Surface Quality: 10-5 scratch-dig

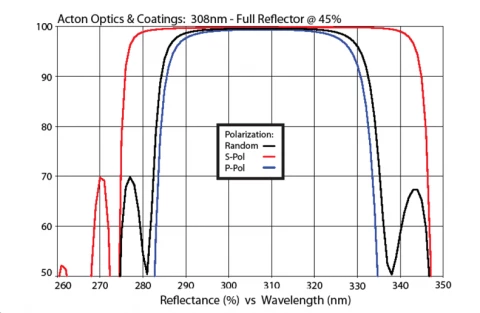

Reflectivity (Rs, Rp): 97 %
Diameter: 50.8 mm
Thickness: Not Specified
Document icon Download Data Sheet Download icon

Features


  • High Reflectance: Exceptional mirror coatings ensure high reflectance for efficient laser performance

  • Customization: Coatings can be tailored to match specific spectral, polarization, and application requirements

  • Damage Threshold: Designed to meet high damage threshold requirements, ensuring longevity and reliability

  • Stock Availability: Ready stock of beam-turning and normal-incidence mirrors for swift delivery

  • Optical Assemblies: Acton offers ready-to-install optical assemblies produced by highly trained technicians

  • Versatile Applications: Suitable for a wide range of applications requiring high-energy excimer lasers

Applications


  • High-energy Excimer Lasers

  • Laser Systems with Stringent Reflectance Requirements
