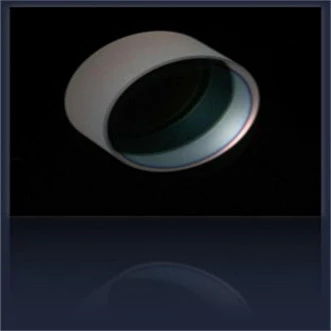

High Reflection Laser Line Mirrors HR Coated

Specifications

Substrate Material: Custom, BK7, Supremax 33, Mo, Cu, Si, Metallic, Zerodur, Sapphire, Calcium Fluoride, IR Fused Silica, UV Fused Silica, Fused Silica
Wavelength Range: 190 – 4000 nm
Angle Of Incidence (AOI): 0 deg
Flatness (Coated Surface): lambda/4, lambda/6, lambda/8, lambda/10, lambda/20
Surface Quality: 60-40 scratch-dig, 40-20 scratch-dig, 20-10 scratch-dig, 10-5 scratch-dig
Reflectivity (Rs, Rp): 99.8 %
Diameter: 0.5 mm
Thickness: 0.5 mm
Document icon Download Data Sheet Download icon

Features


  • Wide Variety of Mirrors: Photonchina offers an extensive range of mirrors including laser line mirrors, harmonic separator mirrors, high reflection (HR) mirrors, partial reflection mirrors, and metallic coated mirrors.

  • Customizable Shapes and Surfaces: Choose from rectangular, round, elliptical, or custom shapes with flat, spherical concave or convex, and cylindrical surfaces.

  • Optimized HR Laser Line Mirrors: HR mirrors are designed for optimized performance at specific wavelengths and angles of incidence (AOI), ensuring very high reflectivity.

  • Advanced Coating Techniques: Coatings are applied using ion beam sputtering (IBS) or electron beam evaporation, with or without ion assistance, for superior performance.

  • High Reflectivity: HR laser line coatings reflect a wavelength range of less than 10% of the central wavelength (CWL), e.g., HR @ 800 nm reflects 760-840 nm.

  • Custom Coatings Available: Tailored coatings can be provided for any wavelength within the range of 0.19 - 20 μm.

  • Mass Production Capabilities: Photonchina can produce up to 5000 pieces per month, accommodating large-scale needs.

  • Premium and Standard Capabilities:

    • Substrate Materials: Options include BK7 and Fused Silica.

    • Diameter Tolerance: Premium: +0.0, -0.1mm; Standard: +0.0, -0.2mm.

    • Clear Aperture: Greater than 90%.

    • Surface Quality: Premium: 20-10 scratch and dig; Standard: 60-40 scratch and dig.

    • Surface Irregularity: Premium: λ/8 per 25mm@632.8nm; Standard: λ/4 per 25mm@632.8nm.

    • Parallelism for Plano-Flat Mirrors: Less than 1 arc minute.

    • Coating Options: HR on S1 with R>99.5% for random polarization; uncoated on S2 upon request.



  • HR Broad Band Mirrors (BBHR Mirrors): Provide high reflectance across a broad spectrum, ideal for multi-wavelength laser or white light applications.

  • Dielectric Coatings: Available in the range of 0.19 - 20 μm, using Ion Beam Sput

Applications


  • Laser Line Mirrors: Optimized for specific wavelengths and angles of incidence, ideal for external beam manipulation with minimal loss.

  • Harmonic Separator Mirrors: Designed to separate harmonic wavelengths effectively.

  • High Reflection (HR) Mirrors: Provide very high reflectivity for specific laser line wavelengths using advanced coating techniques.

  • Partial Reflection Mirrors: Balance between reflection and transmission, suitable for beam splitting applications.

  • Metallic Coated Mirrors: Offer broad wavelength reflectivity, suitable for various optical applications.

  • Custom Shape Mirrors: Available in rectangular, round, elliptical, or custom shapes with flat, spherical concave or convex, and cylindrical surfaces.

  • HR Broad Band Mirrors (BBHR): High reflectance for a broad spectrum, ideal for multi-wavelength laser or white light applications.
