Description

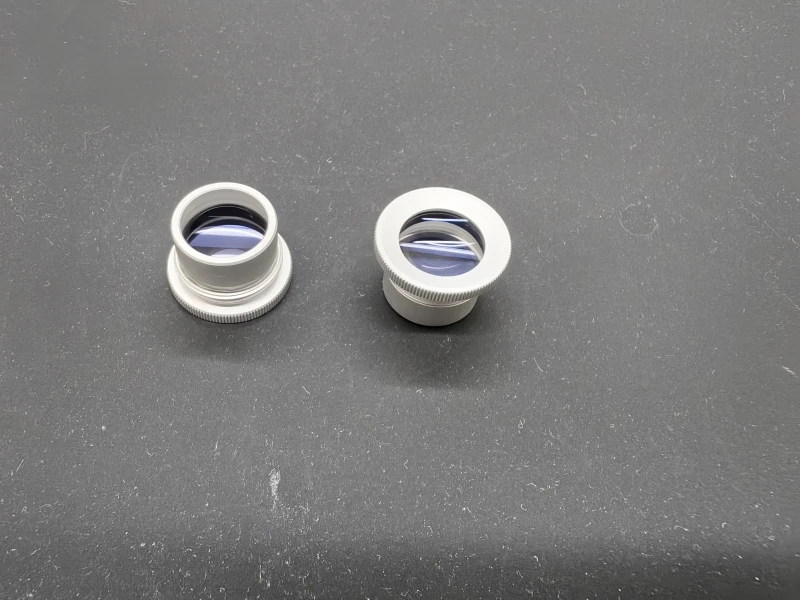

The Custom Magnifying Objective from Sinoptix is designed for a wide range of applications, including magnifiers, visual inspection, microscopy, and vision enhancement. This high-quality optical component is available in various materials such as N-BK7, H-K9L, and fused silica, ensuring versatility and compatibility with different optical systems.
With dimensions ranging from 5mm to 150mm, this custom magnifying objective can be tailored to fit specific project requirements. It features durable mountings available in aluminum or plastic and is equipped with advanced anti-reflective (AR) coatings to improve light transmission and image clarity. The assembly is designed with thread mounts for secure integration into optical setups.
Ideal for professionals in microscopy, inspection, and other optical applications, our Custom Magnifying Objective delivers exceptional performance and reliability. Contact us today to discuss your specific dimensions and design needs.
Precision Custom Magnifying Objective Lens
Specifications
| Magnification: | 12 |
|---|---|
| Numerical Aperture: | Not Specified |
| Focal Length: | Not Specified |
| Working Distance: | Not Specified |
| Design Type: | Not Specified |
| Wavelength Range: | Visible, Ultraviolet, Deep Ultraviolet, Near Infrared, Infrared, Infrared, Broadband |
| Mountings: | Aluminum or Plastic |
| Coatings: | Anti-Reflective (AR) |
| Assembly Method: | Thread mounts |
Download Data Sheet
Features
- Material Options: Available in N-BK7, H-K9L, fused silica, and other optical materials (contact us for feasibility)
- Customizable Dimensions: Offered in sizes from 5mm to 150mm to suit various applications
- Durable Mountings: Choose between aluminum or plastic mountings for optimal compatibility and durability
- Advanced Coatings: Features anti-reflective (AR) coatings to enhance light transmission and reduce glare
- Secure Assembly: Designed with thread mounts for stable integration into optical systems
Applications
- Magnifiers: Ideal for handheld or stationary magnifying devices for various applications
- Visual Inspection: Perfect for inspecting small parts and details in manufacturing and quality control
- Microscopy: Essential for use in microscopes for clear and detailed observation of specimens
- Vision Enhancement: Useful in devices aimed at improving visual acuity for various users
- Research and Development: Supports optical testing and experimental setups in scientific research
Frequently Asked Questions
What materials are available for the magnifying objective?
What are the available dimensions for the objective?
What type of mountings can I choose from?
Are coatings included with the objective?
How is the assembly constructed?
Can I customize the design of the objective?
What applications is this magnifying objective suitable for?
How do I place an order?
What performance characteristics can I expect?
