Description

Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.

The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.

At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meet your specific requirements.

Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.

Positive Fresnel Lens SC 205

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Positive
Focal Length: 282.8 mm
Facet Spacing: 0.076 mm

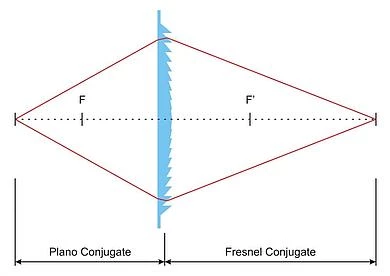

Fresnel Conjugate: 610 mm
Clear Aperture: 330.4 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What are the focal length options available for the SC Series Fresnel Lenses?
The SC Series offers focal lengths ranging from 6.3 mm to 764.0 mm, providing flexibility for various optical applications.
What material is used to manufacture the SC Series Fresnel Lenses?
The lenses are made from PMMA (Polymethyl Methacrylate), with a refractive index of 1.49, offering high optical clarity.
What is the standard thickness of these lenses?
The standard thickness is 1.8 mm, but other thickness options starting from 0.8 mm are available upon request.
Can these lenses be customized?
Yes, the lenses can be customized in terms of outside diameter, thickness, and special trimmings, based on specific application needs.
What is the tolerance of the focal length?
The focal length tolerance is ±5% for a wavelength of 546 nm.
What facet spacing options are available in the SC Series?
The facet spacing varies between 0.076 mm and 0.762 mm, depending on the focal length and other specifications.
Are the lenses suitable for infinite conjugate applications?
Yes, many lenses in the SC Series are optimized for infinite conjugate distances, making them ideal for various optical systems.
What are the common applications for these Fresnel lenses?
These lenses are commonly used in optical systems, projection displays, solar concentrators, and imaging devices like cameras and telescopes.
Can the SC Series Fresnel lenses handle high environmental conditions?
The lenses are designed for stable performance under normal conditions but can be customized for specific environmental needs.
Are special designs available upon request?
Yes, special lens designs can be created to meet unique project specifications.

Got more questions? Use the inquiry form to ask the supplier directly.
