Description

Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.

The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.

At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meeting your specific requirements.

Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.

Negative Fresnel Lens SC 2135 neg

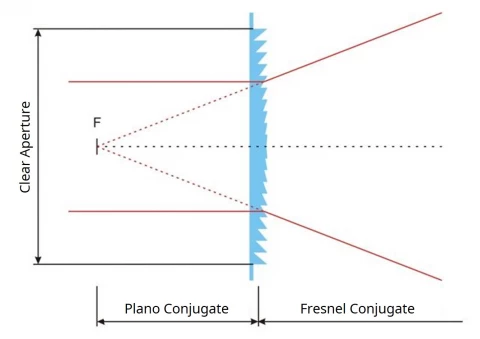

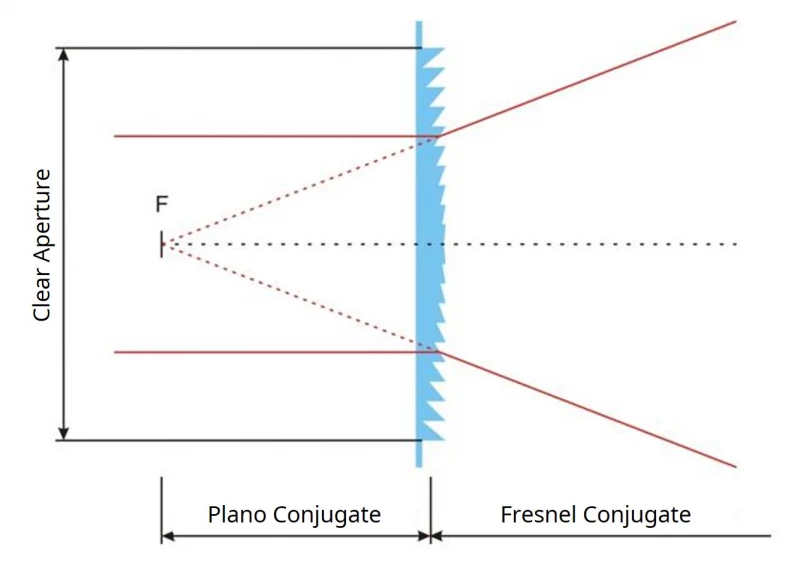

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Negative
Focal Length: -764 mm
Facet Spacing: 0.508 mm
Fresnel Conjugate: Not Specified
Clear Aperture: 436.3 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What is the main function of the Negative Fresnel Lens SC 2135 neg?
It diverges light, making it ideal for applications that require beam expansion or defocusing.
What materials is the lens made of?
The lens is crafted from high-quality optical-grade materials for durability and efficiency.
How does the negative focal length affect light manipulation?
The negative focal length causes light to spread out rather than converge, aiding in beam control.
What industries commonly use this lens?
It's used in imaging systems, laser beam shaping, projection systems, and industrial optics.
How does a Fresnel lens differ from a conventional lens?
Fresnel lenses have a thinner profile with concentric grooves, offering similar light control but with reduced weight and material usage.
Can the lens be used in laser systems?
Yes, it's ideal for laser systems that require precise beam divergence or shaping.
Is this lens suitable for compact devices?
Yes, its lightweight and thin design make it suitable for space-constrained optical devices.
Does the lens work across a broad range of wavelengths?
Yes, it offers high optical efficiency across a wide wavelength range, ensuring versatile performance.

Got more questions? Use the inquiry form to ask the supplier directly.
