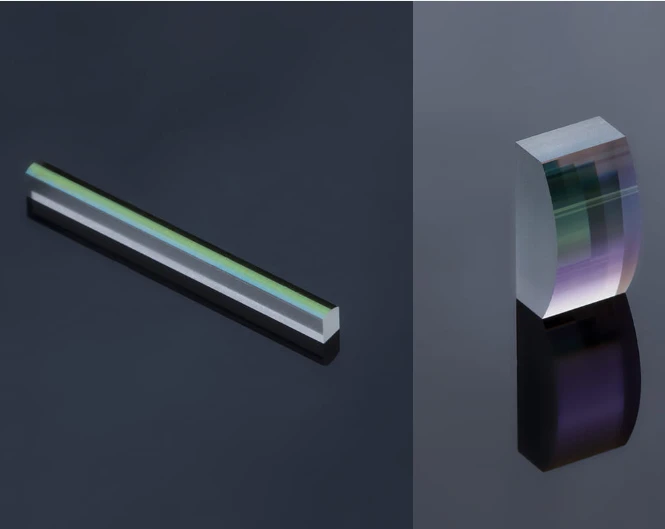

Fast Axis Collimator FAC

Specifications

Collimator Type: Spherical, Cylindrical, Aspherical
Design Wavelength: 750 nm
Numerical Aperture: 90
Effective Focal Length (EFL): 0.3 mm
Back Focal Length (BFL): 0.07 mm
AR Coating: Custom
Document icon Download Data Sheet Download icon

Features


  • Precision Cold Processing Products: High-quality optical components designed for precision applications.

  • Rod Lens: Available in sizes ranging from 0.40mm to 1.8mm with effective focal lengths of 200um to 480um. Suitable for wavelengths of 405nm, 790-990nm, and 1450-1550nm. Made from materials like N-BK7, N-SF11, Z-SF13, and TGG.

  • FAC/SAC Lenses: Detailed sizes from 0.50×0.43mm to 4.00×2.00mm with effective focal lengths/back focus ranging from 300um/70um to 12mm/10.9mm. Compatible with wavelengths of 750-850nm, 790-990nm, and 1450-1550nm. Constructed from Corning7980, BK7, H-K9L, and H-ZF13.

  • Right-angle Prism: Features angle tolerance of ±0.05° and reflection angle >99.5°. Available in materials like NBK7, NSF11, Fused Silica, and Silicon.

  • Mirror: Offers high reflection efficiency with a reflection angle >99.5%. Made from materials such as NBK7, NSF11, and Fused Silica.

  • Wedge, Rhombic Prism, Roof Prism: Detailed sizes from 0.6/0.6mm to 1.0/1.2mm with angle tolerance of ±0.05°. Anti-reflective coating with R<0.2%@540,980,1064,1310,1550nm.

  • Ball Lens: Diameter sizes from φ0.3mm to φ1.5mm with a diameter error range of ±0.003°. Made from NBK7, NSF11, and Si.

  • C-lens: Available in focal lengths from 0.5mm to 5.0mm. Constructed from NBK7, NSF11, Si, and Grin Lens Rod.

  • Turning Lens: Sizes from 0.6×0.6mm to 1.0×1.0mm with a radius of curvature from 0.8mm to 2.5mm. Made from NBK7, NSF11, and Si.




Applications


  • Optical Communication Systems: Efficient light collimation and coupling in fiber networks.

  • Laser Systems: Beam shaping, focusing, and turning for medical, industrial, and scientific use.

  • Optical Sensing: Integrated into high-precision detectors and monitoring devices.

  • Imaging & Microscopy: Supports compact optical paths for endoscopes and miniaturized cameras.

  • Photonics Research & Development: Ideal for prototyping and custom optical assemblies.
