Description
Electronic Infrared Autocollimator was specially designed for the spectral range 1550 nm with electronic image evaluation and 1 arcsec accuracy.

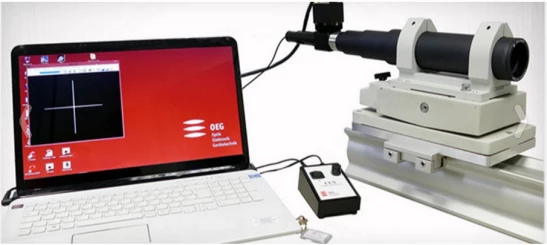

OEG IR Autocollimator
Specifications
| Collimator Type: | Spherical, Cylindrical, Aspherical |
|---|---|
| Design Wavelength: | 1550 nm |
| Numerical Aperture: | 0.1 |
| Effective Focal Length (EFL): | 500 mm |
| Back Focal Length (BFL): | Not Specified |
| AR Coating: | Custom |
| Transmittance: | Not Specified |
| Clear Aperture: | 50 mm |
Download Data Sheet
Features
Resolution: 0,1 arcsec
Accuracy: 1 arcsec
Measuring field: (1800 x 1500) arcsec
Focal length: 500mm
Camera sensitivity: 900 nm – 1700 nm
LED illumination 1550 nm
Applications
- Infrared laser beam monitoring
- Laser diagnostics
- IR image evaluation
Frequently Asked Questions
What is the accuracy of the OEG IR Autocollimator?
The accuracy of the OEG IR Autocollimator is 1 arcsec.
What is the focal length of the OEG IR Autocollimator?
The focal length of the OEG IR Autocollimator is 500mm.
What is the measuring field of the OEG IR Autocollimator?
The measuring field of the OEG IR Autocollimator is (1800 x 1500) arcsec.
What is the resolution of the OEG IR Autocollimator?
The resolution of the OEG IR Autocollimator is 0.1 arcsec.
What is the spectral range of the OEG IR Autocollimator?
The spectral range of the OEG IR Autocollimator is 1550 nm.
