Collimator 400 - 700 nm

Opt Lasers
REQUEST QUOTE
Collimator 400 - 700 nm
  • image0
  • image1
  • image2

OVERVIEW

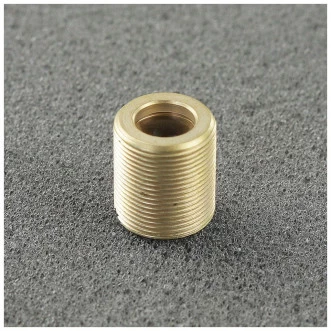

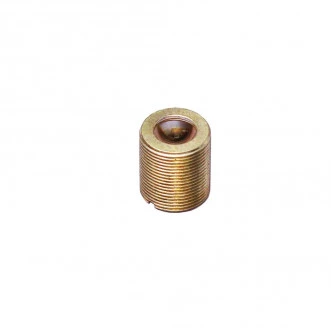

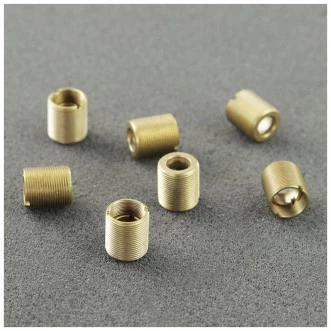

This Mounted Aspheric lens is useful to collimate or focus laser light in the visible wavelength regime. The aspheric design nearly eliminates spherical aberration without needing multiple optical elements. It has a broadband AR coating of 400-700 nm, allowing it to be used for various applications.

SPECIFICATION

  • Collimator Type: Aspherical
  • Design Wavelength: 400 - 700 nm nm
  • Numerical Aperture: 0.60
  • Effective Focal Length (EFL): 4 mm
  • Back Focal Length (BFL): X mm
  • AR Coating: Custom
  • Transmittance: X %
  • Clear Aperture: (NA) of 0.60 mm
Download Data Sheet

Applications

This lens is included with our PLH3D-6W-Series laser engravers. It is easy to clean the surfaces of the lens if they should become dirty when engraving, which may be done with Isopropyl Alcohol (IPA) and an optical wipe. However, in some cases, it can be necessary to replace the lens. It is recommended to purchase an extra lens with PLH3D-Series laser heads if the product will be used in an environment where dust, smoke or oil are generated.


Note that our PLH3D-Series Focus Adjuster accessory is not compatible with this lens.

KEY FEATURES

About the Collimator 400 - 700 nm
The high numerical aperture (NA) of 0.60 for high light collection efficiency
Broadband visible anti-reflection (AR) coating for improved transmission



This high-NA lens can be used to focus or collimate laser light. The aspheric design reduces or nearly eliminates spherical aberration without the need for multiple lens elements. Its short effective focal length (EFL) of 4 mm makes a variety of working distances possible. This lens has a broadband anti-reflection (AR) coating over the 400-700 nm range on both surfaces, making it useful for a variety of applications in addition to engraving at the 450 nm wavelength.
